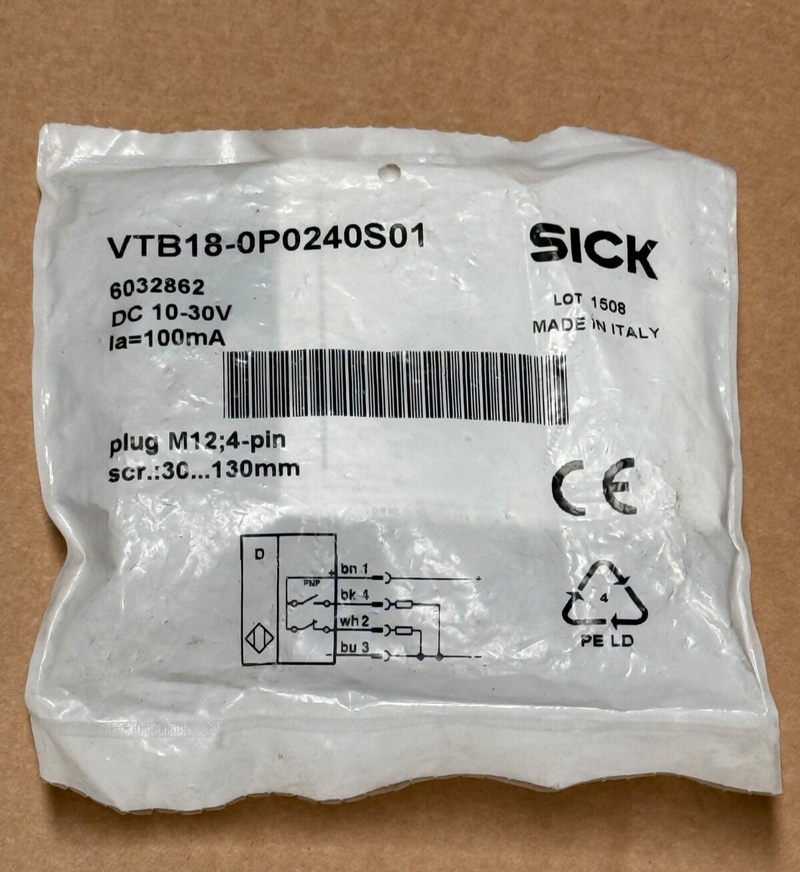

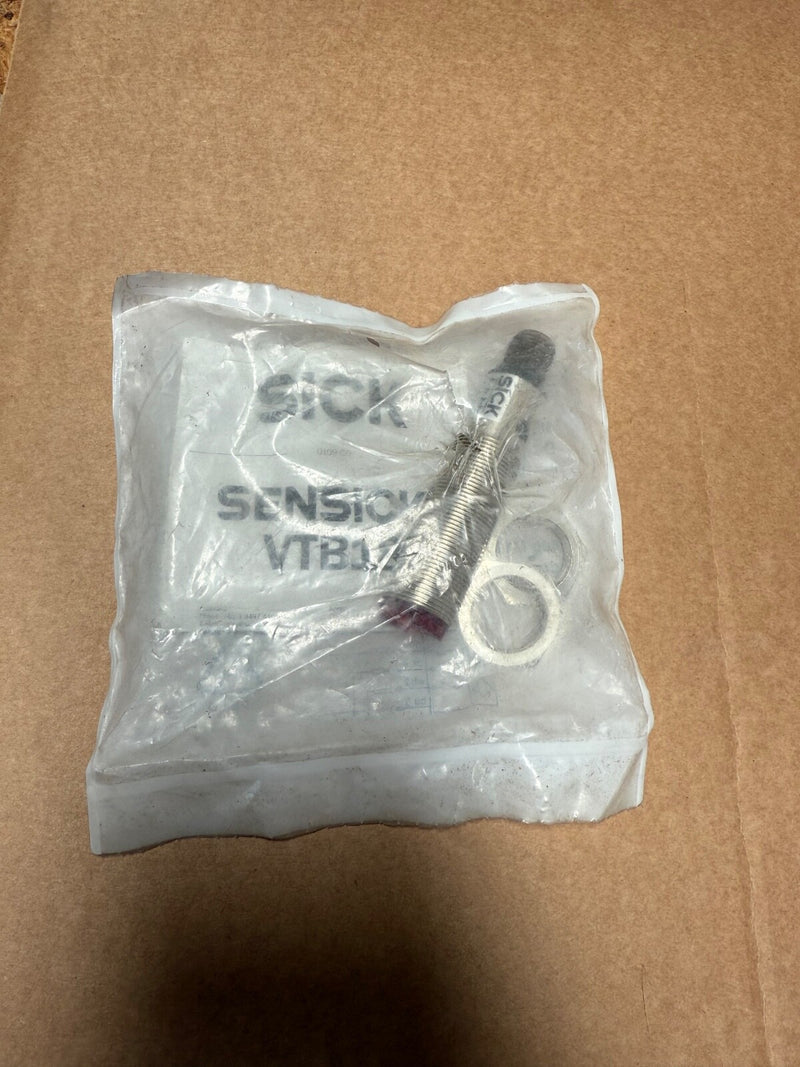

The SICK VTB18‑0P0240S01 (MPN 6032862) is an M18 cylindrical background-suppression photoelectric proximity sensor from SICK’s V18 series. It uses a visible red LED and offers a focused detection range of 30–90 mm, with suppression of objects beyond 92 mm. Equipped with selectable PNP light/dark switching and a 270° potentiometer, this rugged IP67 sensor is ideal for precise object detection in industrial settings.

Key Features & Specifications:

• Model / MPN: VTB18‑0P0240S01 / 6032862

• Detection Principle: Photoelectric sensor with background suppression

• Sensing Range: 30–90 mm (background suppression starts at 92 mm)

• Light Source: Visible red LED, 660 nm wavelength; spot Ø 3 mm @ 90 mm

• Beam & Housing: Axial beam, M18 × 1 cylindrical metal housing (nickel-plated brass), length 79.4 mm; IP67 rated

• Supply Voltage: 10–30 V DC; current draw ~30 mA

• Output: PNP, light/dark selectable via cable; max 100 mA switching current

• Switching Performance: ≤ 1.25 ms response time; up to 400 Hz switching frequency

• Connections: 4‑pin M12 male connector; potentiometer adjustable 270°

• Protections: Reverse polarity, EMI suppression, output overcurrent/short-circuit protected

• Temperature Range: –25 °C to +70 °C operating; –55 °C to +80 °C storage

• Certifications & Approvals: IP67, UL File NMFT2.E175606; metal housing for industrial durability

• Weight: Approximately 120 g

SICK – VTB18-0P0240S01 (6032862) – M18 Background-Suppression Photoelectric
