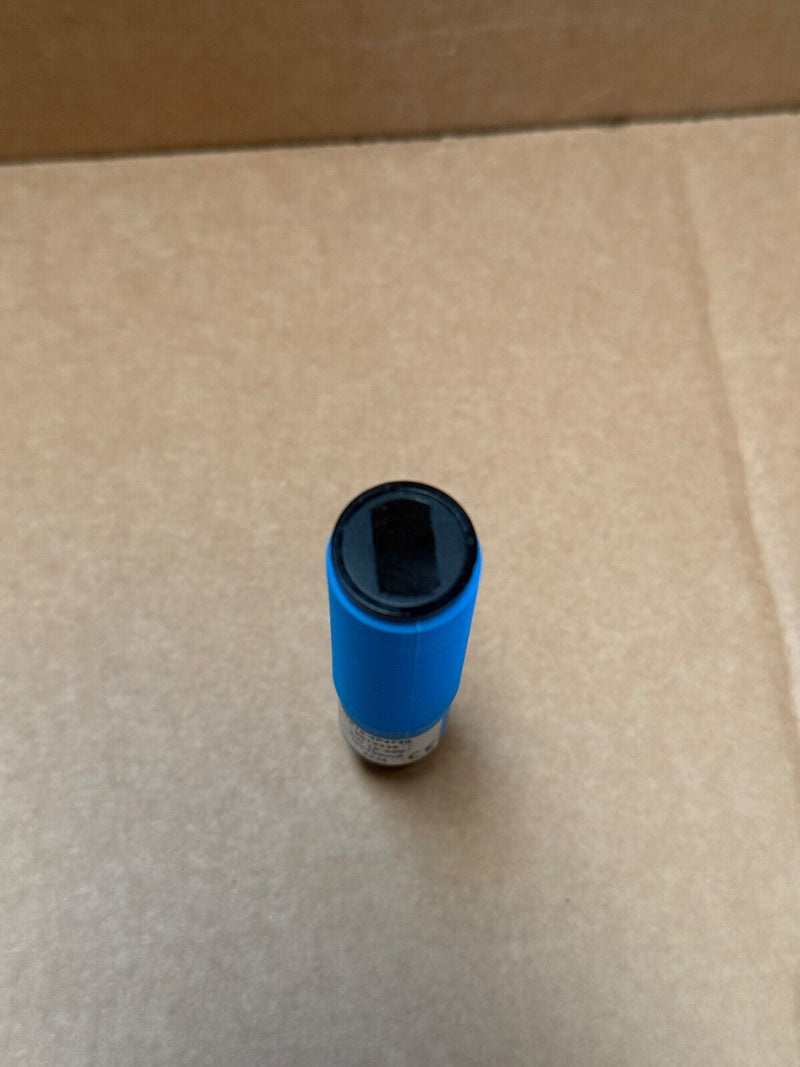

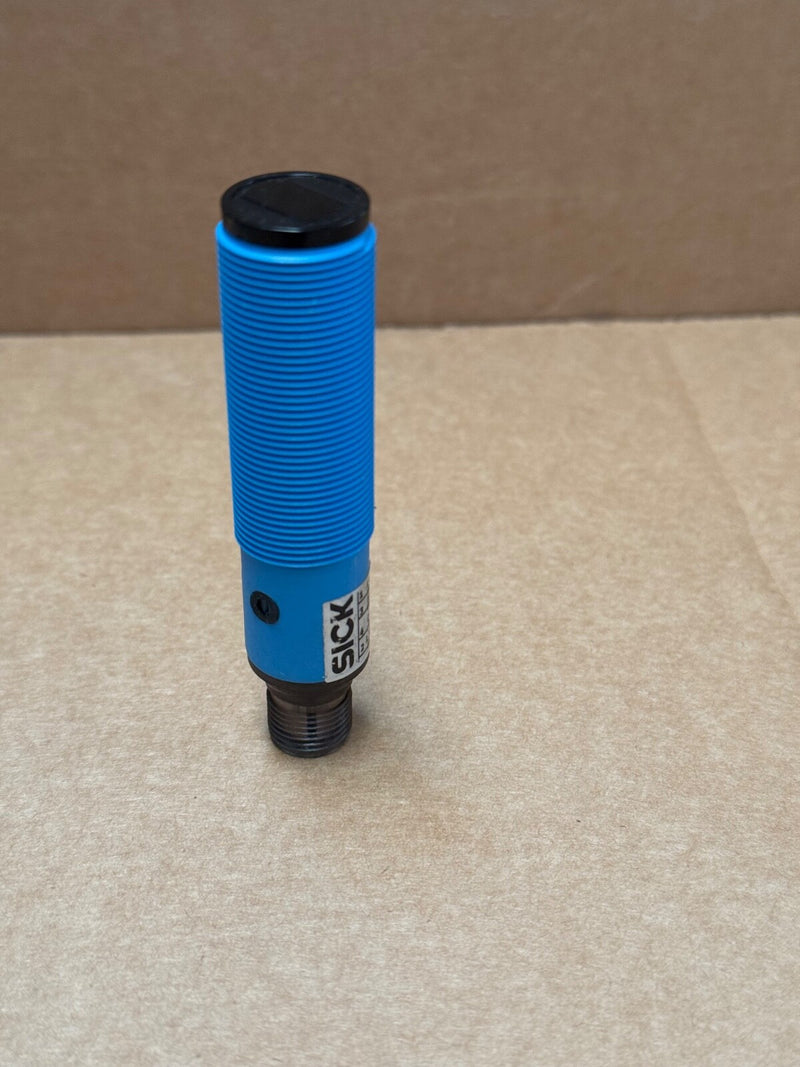

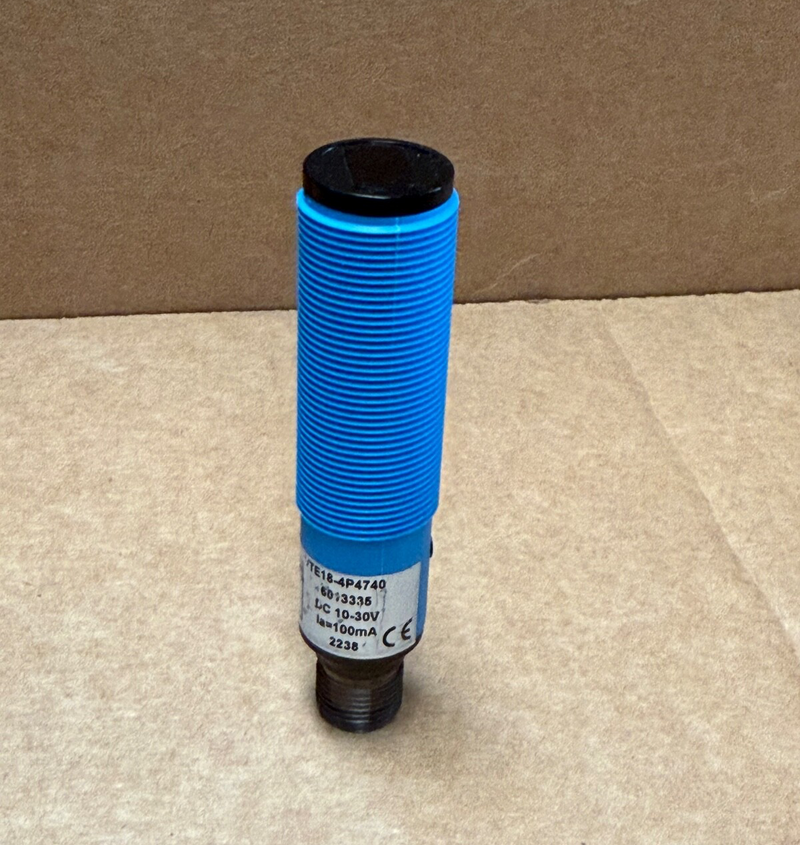

SICK – VTE18‑4P4740 (6013335) – M18 Energetic Photoelectric Sensor

The SICK VTE18‑4P4740 (part number 6013335) is a compact energetic (diffuse) photoelectric proximity sensor from the robust V18 family. Featuring an axial infrared beam and selectable PNP light/dark switching via control wire, this M18 sensor detects objects from 5 mm up to 400 mm—ideal for automation, packaging, robotics, and material-handling applications.

Key Features & Specifications:

• Model / MPN: VTE18‑4P4740 / 6013335

• Detection Principle: Energetic (diffuse) photoelectric proximity

• Sensing Range: 5 mm … 350 mm typical (max. 400 mm on 90 % reflectance)

• Beam Details: Axial infrared LED (~850 nm); ~2.8° angle; ~20 mm spot @ 400 mm

• Output: PNP, selectable light/dark mode via cable; ≤ 100 mA

• Response Time / Frequency: ≤ 2 ms; 250 Hz switching

• Power Supply: 10–30 V DC; ≤ 30 mA current draw

• Housing: M18 × 1 plastic, 78 mm long; 18 × 18 × 78 mm

• Protection: Reverse-polarity, overcurrent/short-circuit, EMI suppression; IP67 rated

• Connection: Male M12 4‑pin connector

• Environmental Range: –25 °C to +70 °C; weight ~100 g; UL file NMFT2.E175606
