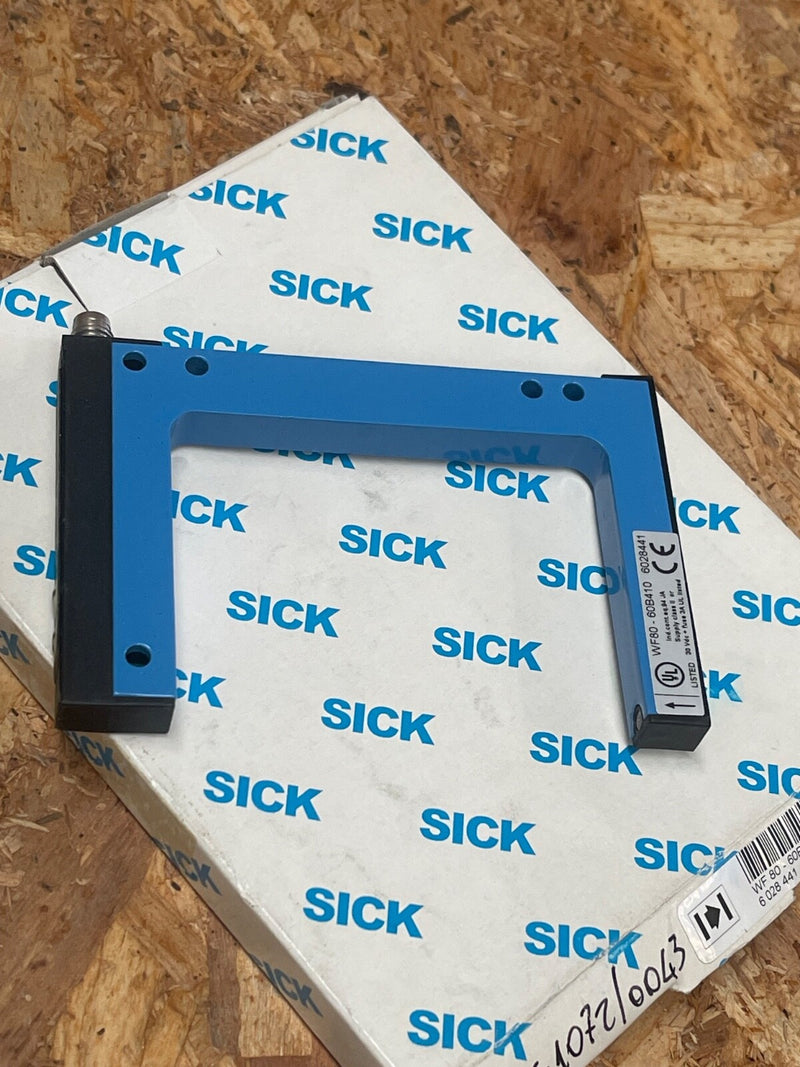

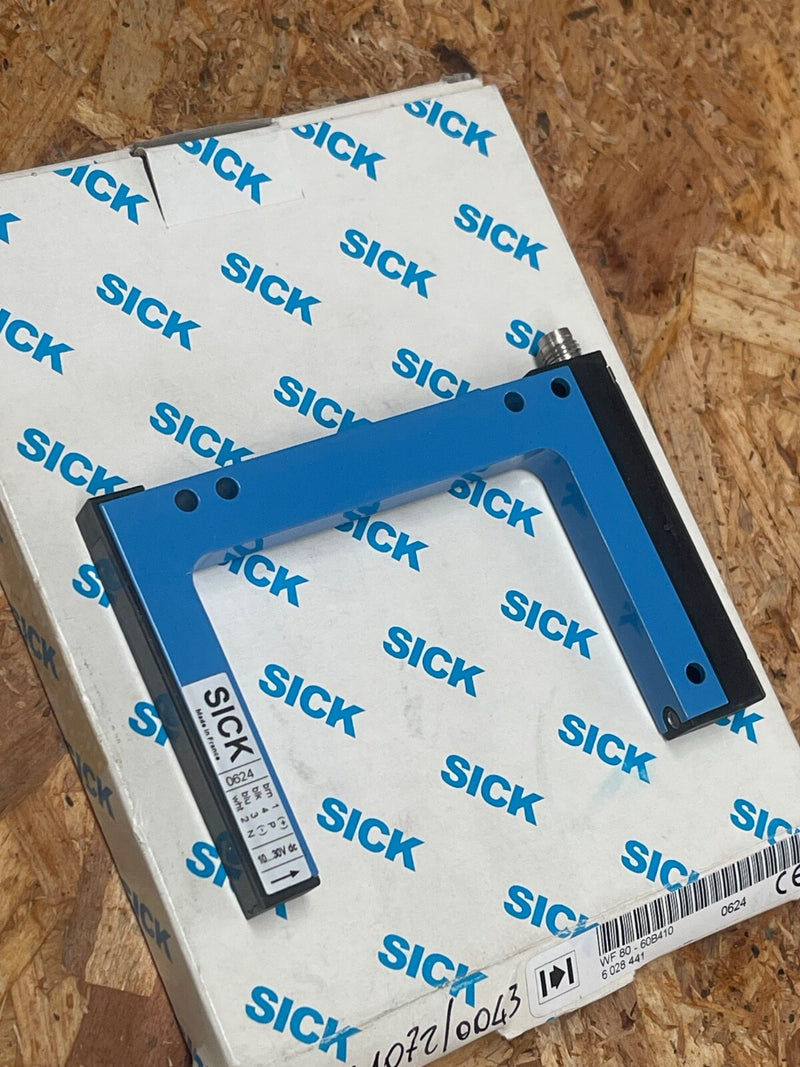

SICK – WF80‑60B410 – 80 mm Fork Sensor with PNP/NPN Output, IR LED

Main Features

• Manufacturer: SICK AG, a leading provider of intelligent industrial sensors

• Model/MPN: WF80‑60B410 (SICK part number 6028441)

• Sensor Type: Optical fork sensor (slot sensor) for non-contact object detection

• Slot Dimensions: 80 mm fork width × 59 mm fork depth

• Detection Capability: Reliable detection of objects ≥ 0.2 mm; suitable for label and edge detection

• Light Source: Infrared LED with selectable light/dark switching logic

• Outputs: Configurable PNP or NPN switching; Maximum output current 100 mA

• Supply Voltage: 10–30 V DC; current consumption approximately 40 mA

• Response Specifications:

  • Switching frequency up to 10 kHz

  • Response time ≤ 100 µs

  • Response stability ± 20 µs, jitter ≤ 40 µs

• Adjustment: Built-in “+”/“–” buttons for sensitivity tuning and switching mode toggle; includes key-lock feature

• Construction & Protection:

  • Rugged aluminum housing; IP65 protection

  • M8 4-pin male connector, short-circuit and reverse-polarity protected

• Environmental & Certifications:

  • Operating temperature −20 °C to +60 °C

  • Ambient light immunity up to 10,000 lux

  • UL Listing and various EC/EU conformity certifications
