Siemens – 6ES7 193‑0CB10‑0XA0 + 6ES7 133‑0BN01‑0XB0 – 24DI/8DO Digital Module

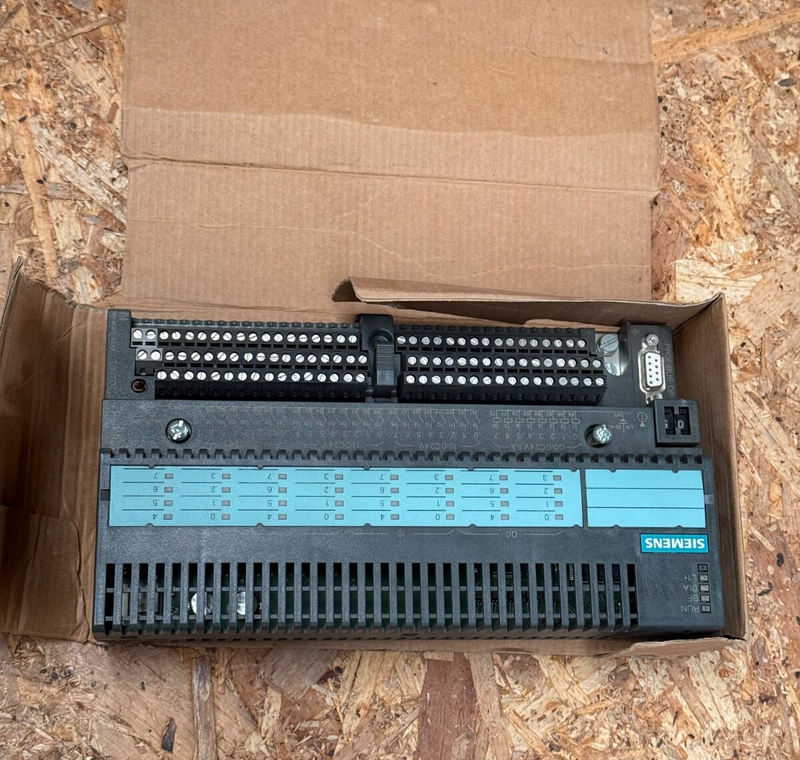

This packaged set combines a Siemens ET 200B digital I/O assembly: a terminal block and its corresponding electronic digital I/O module. Designed for DIN-rail Profibus-DP systems, it provides 24 inputs and 8 outputs at 24 V DC. Both parts are discontinued (since Oct 1, 2017) but remain widely used in legacy automation systems.
Included Components
-

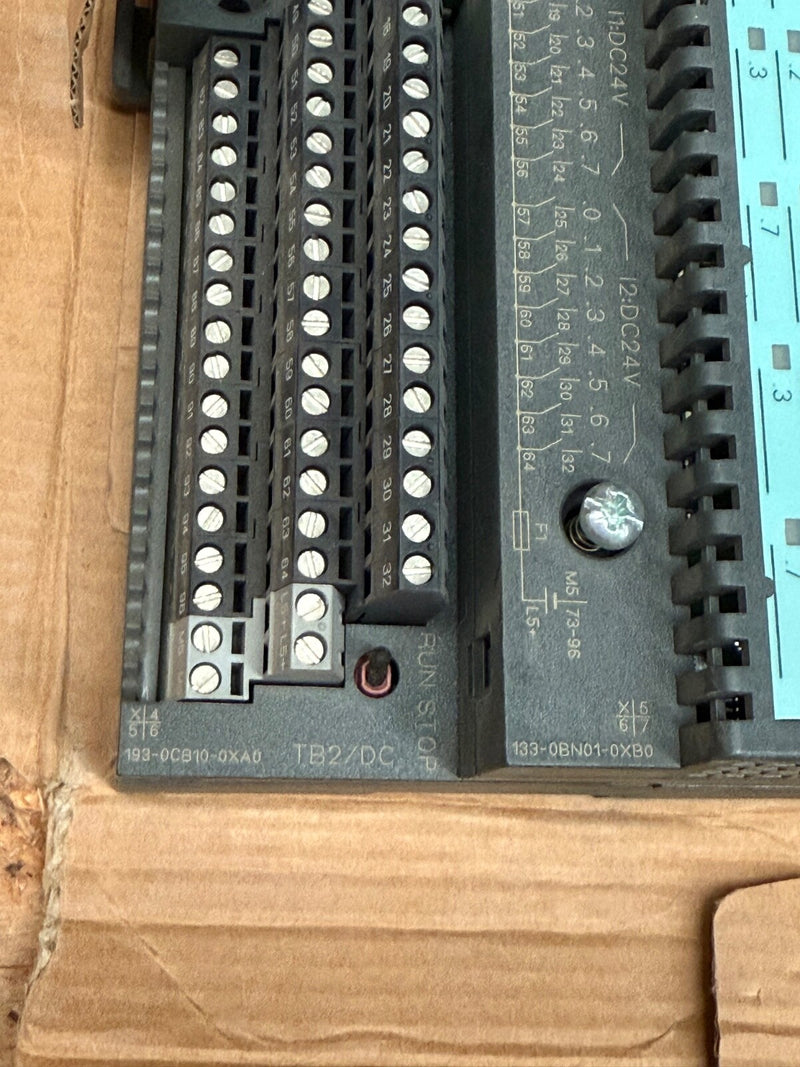

Terminal Block – 6ES7 193‑0CB10‑0XA0
-
Type: TB2/DC screw-terminal block (3-wire)
-
Width: 235 mm
-
Supply Voltage: 24 V DC (18.5–30 V)
-
Logic Current: 100–200 mA
-
Mounting: Profibus-DP style for ET 200B
-
-
Digital I/O Module – 6ES7 133‑0BN01‑0XB0
-
I/O Configuration: 24 digital inputs + 8 digital outputs (24 V DC, 0.5 A each)
-
Input Delay: Standard 3 ms
-
Width: 235 mm, matches TB2/DC block
-
Connection: Profibus-DP interface via ET 200B backplane
-
