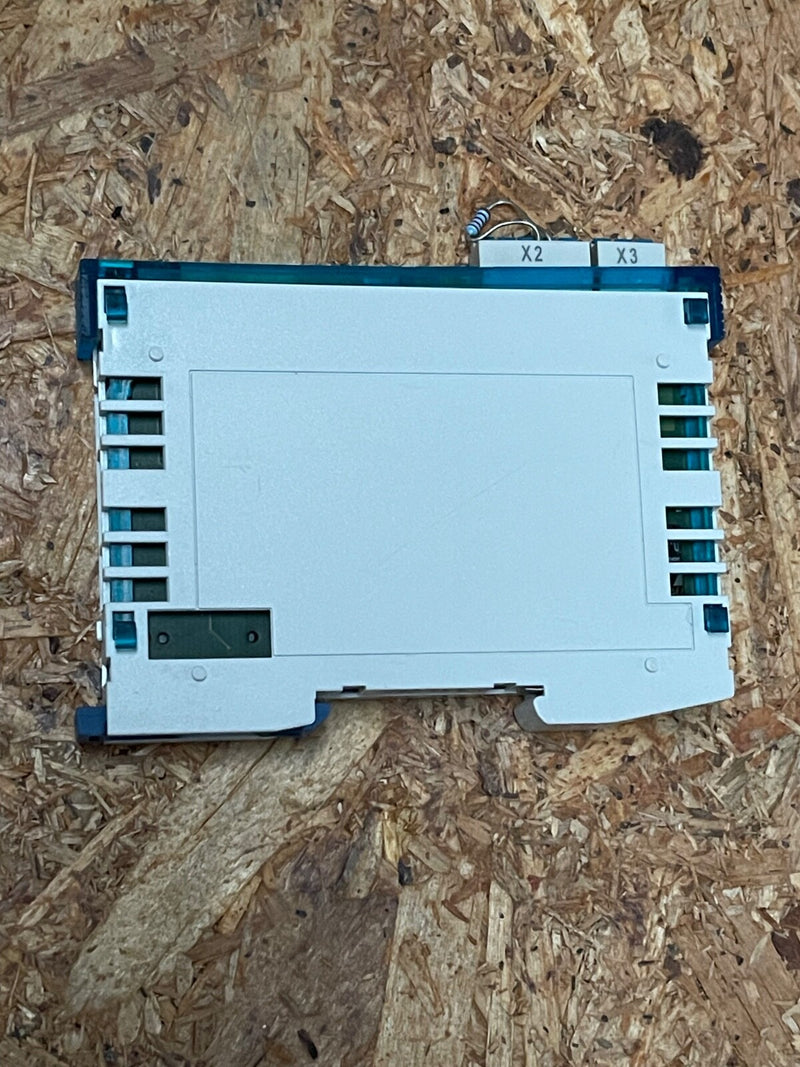

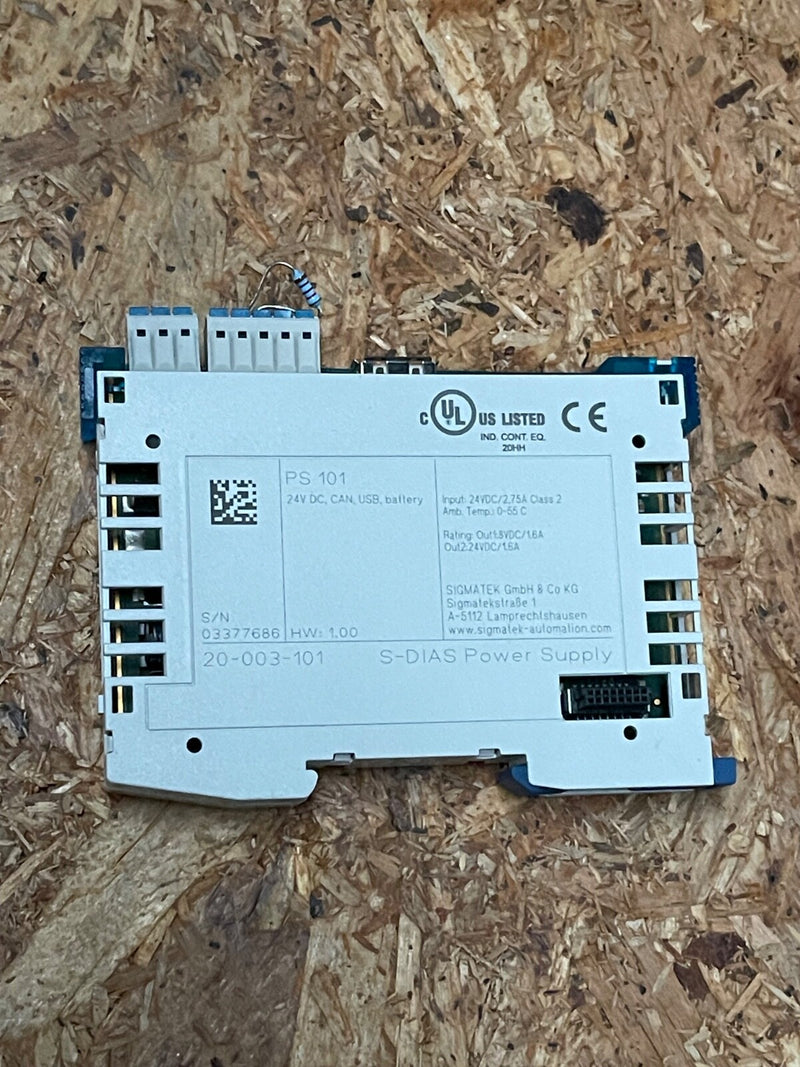

Sigmatek - PS 101 - S-DIAS Power Supply Module, 24 V DC, with CAN & USB

The Sigmatek PS 101 is a compact power supply module from the S-DIAS series, designed to provide reliable power to CPU components and S-DIAS I/O modules in industrial automation systems. It features integrated CAN and USB host interfaces, which are operational when paired with a CPU module like the CP 111. Additionally, the module includes an exchangeable lithium battery to maintain the real-time clock and zero-voltage proof RAM in the CPU module during power interruptions.

Key Features:

• Model: PS 101

• Brand: Sigmatek

• Article Number: 20-003-101

• Function: Power supply module for CPU and S-DIAS I/O modules

• Input Supply Voltage: +18 V to +30 V DC (typically +24 V DC)

• Maximum Input Current: 2.75 A

• S-DIAS Bus Output:

  • +5 V DC, maximum 1.6 A

  • +24 V DC, maximum 1.6 A

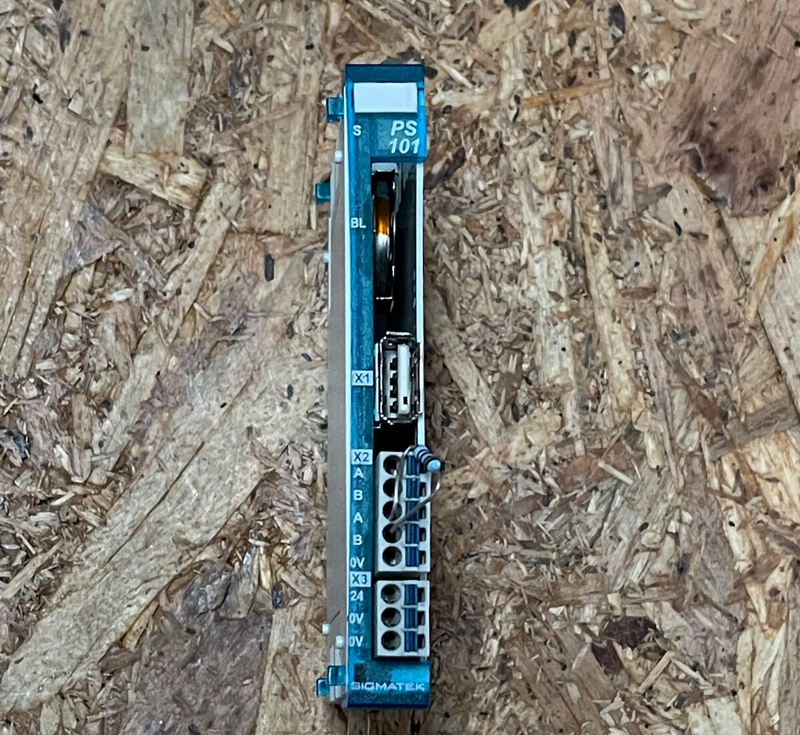

• Interfaces:

  • 1 × USB Host 2.0 (480 Mbit/s)

  • 1 × CAN

• Battery: Exchangeable lithium battery (CR2032) for RTC and SRAM backup

• Mounting: DIN rail

• Dimensions (W × H × D): 12.5 mm × 104.2 mm × 72 mm

• Protection Class: IP20

• Operating Temperature Range: 0 °C to +55 °C

• Storage Temperature Range: -20 °C to +85 °C

• Humidity: 0–95%, non-condensing

• Certifications: UL 508 (E247993), cUL, CE, UKCA

• Applications: Ideal for supplying power to CPU components and S-DIAS I/O modules in industrial automation systems, ensuring reliable operation and communication through integrated interfaces.
