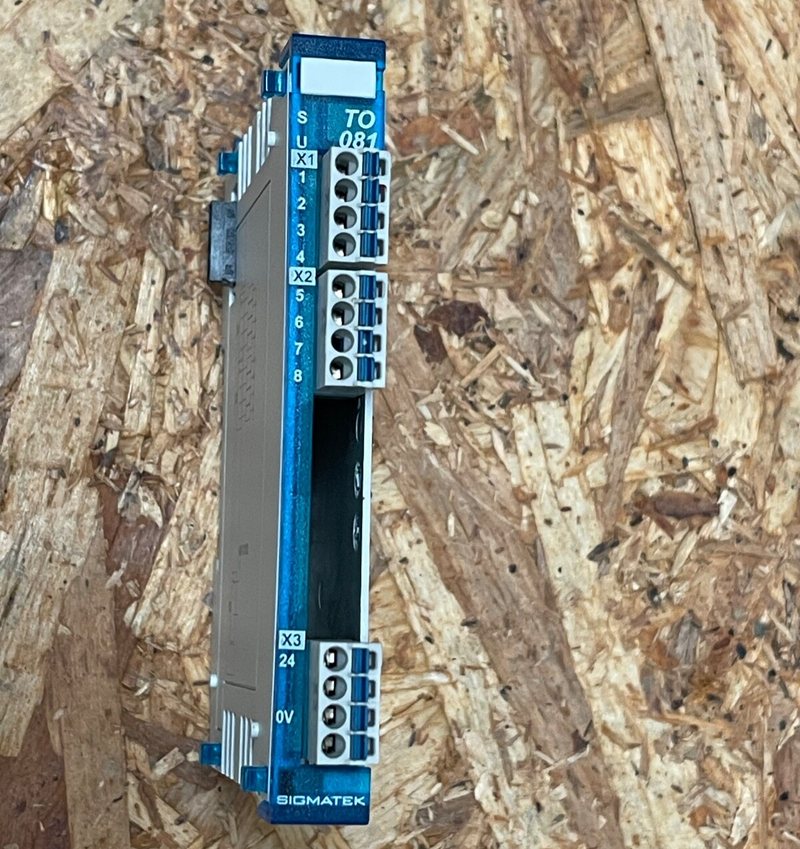

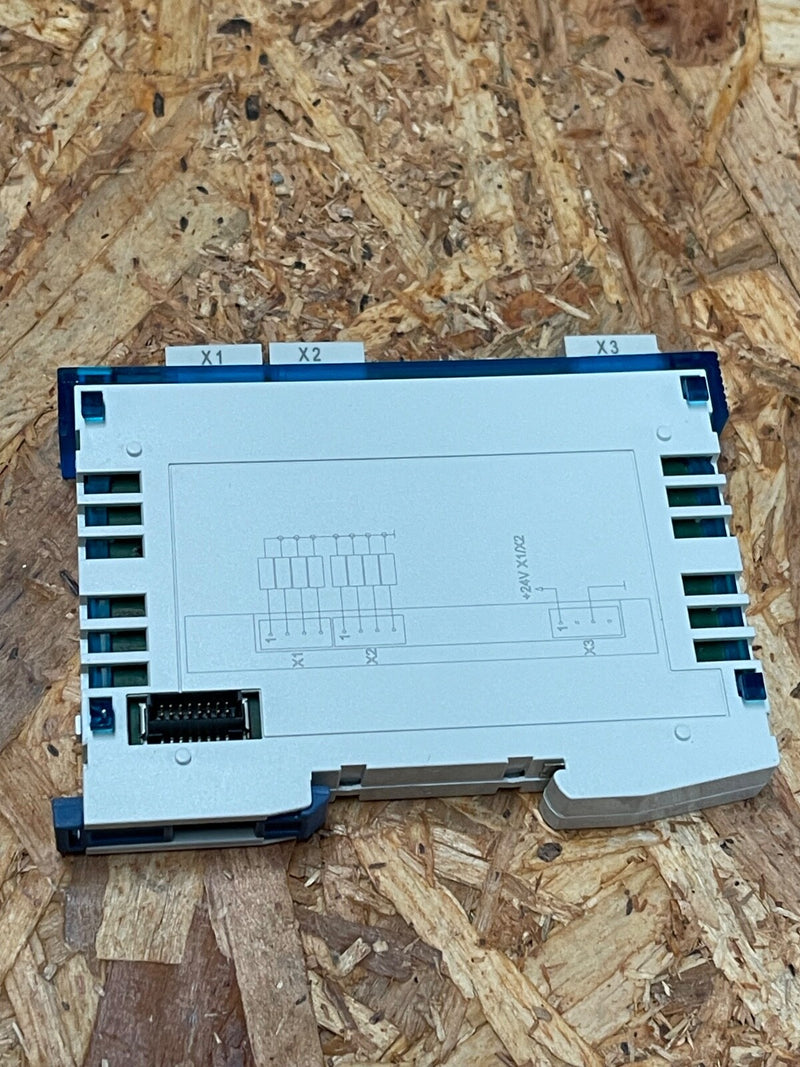

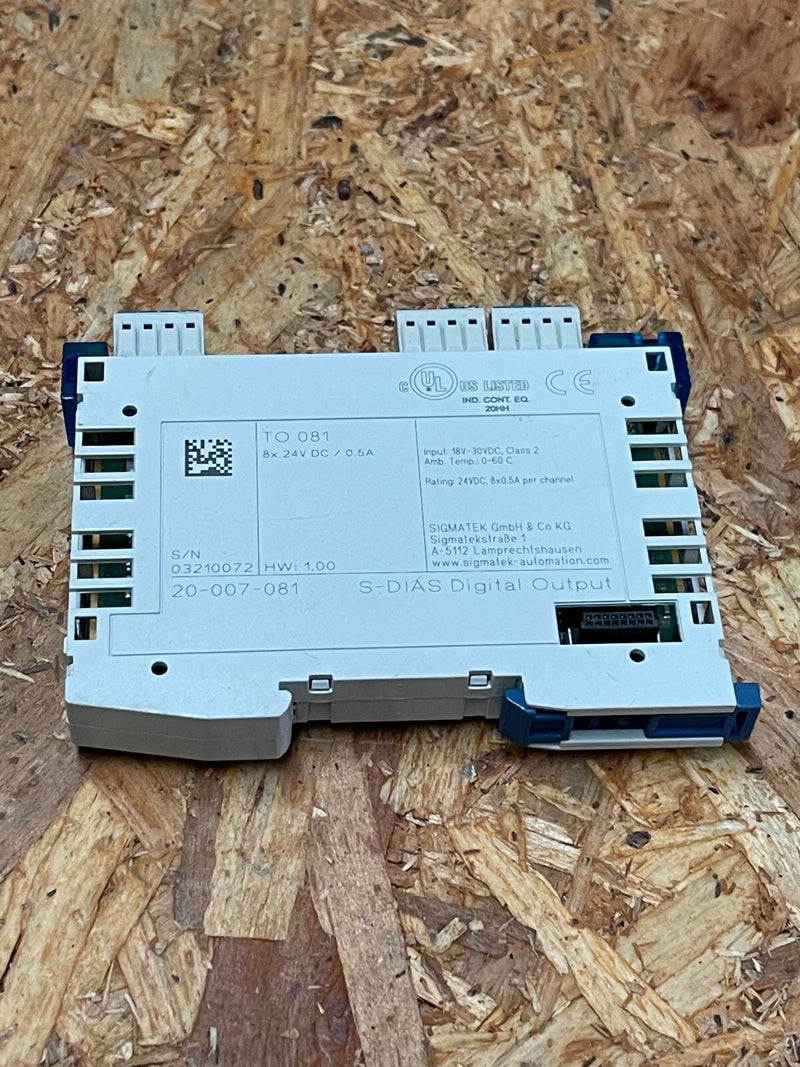

Sigmatek – TO 081 – S‑DIAS Digital Output Module, 8× 24 VDC, 0.5 A per Channel

The Sigmatek TO 081 is a compact digital output module from the S-DIAS series, designed for industrial automation applications. It features eight short-circuit-proof digital outputs, each capable of sourcing up to 0.5 A at 24 V DC. The module is suitable for controlling actuators such as relays, solenoids, and lamps in various automation systems.

Key Features:

• Model: TO 081

• Brand: Sigmatek

• Number of Outputs: 8 digital outputs

• Output Voltage: +24 V DC (range: 18–30 V DC)

• Maximum Output Current per Channel: 0.5 A

• Total Maximum Current (entire module): 4 A (100% duty cycle)

• Short-Circuit Protection: Yes

• Turn-On Delay: < 200 µs

• Turn-Off Delay: < 200 µs

• Residual Current (off): ≤ 10 µA

• Maximum Braking Energy (inductive load): 1 Joule per channel

• Power Supply Voltage: +24 V DC (18–30 V DC)

• Current Consumption from S-DIAS Bus (+5 V): Typically 40 mA, maximum 45 mA

• Dimensions (W x H x D): 12.5 mm x 104.2 mm x 72 mm

• Weight: Approximately 100 g

• Mounting: DIN rail

• Protection Class: IP20

• Operating Temperature Range: 0 °C to +60 °C

• Storage Temperature Range: -20 °C to +85 °C

• Humidity: 0–95%, non-condensing

• Approvals: UL, cUL, CE
