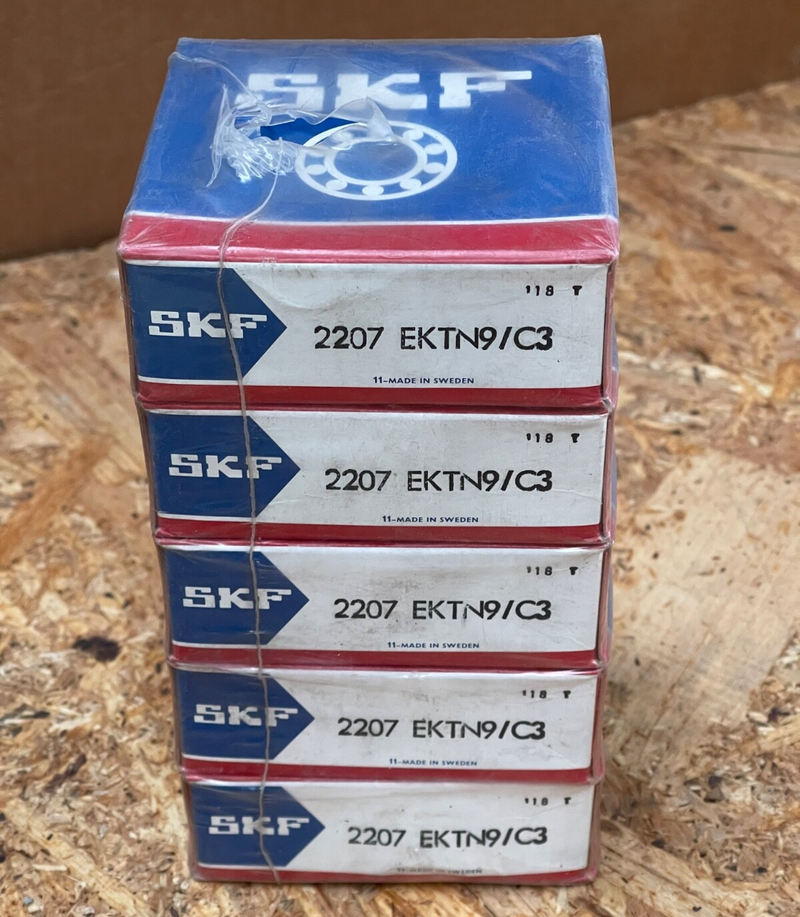

SKF - 2207 EKTN9/C3 - Self-Aligning Ball Bearing, 35 mm ID, 72 mm OD, 23 mm

The SKF 2207 EKTN9/C3 is a double-row self-aligning ball bearing designed to accommodate misalignment and shaft deflection in demanding applications. Featuring a 35 mm inner diameter, 72 mm outer diameter, and 23 mm width, this bearing incorporates a tapered bore (1:12 taper) for secure mounting using adapter sleeves. The polyamide cage ensures smooth operation, while the C3 radial clearance allows for thermal expansion and high-speed performance.

Key Features:

• Model: 2207 EKTN9/C3

• Brand: SKF

• Bearing Type: Self-aligning ball bearing

• Number of Rows: 2

• Inner Diameter (d): 35 mm

• Outer Diameter (D): 72 mm

• Width (B): 23 mm

• Bore Type: Tapered (1:12 taper)

• Radial Clearance: C3 (greater than normal)

• Cage Material: Polyamide

• Sealing: Open (no seals)

• Dynamic Load Rating (C): 30.2 kN

• Static Load Rating (C₀): 8.8 kN

• Maximum Speed: Up to 12,000 RPM

• Misalignment Capability: Up to 2.5°

• Operating Temperature Range: –30 °C to +120 °C

• Weight: Approximately 400 g

• Applications: Ideal for applications requiring compensation for shaft misalignment, such as in conveyors, textile machinery, and agricultural equipment.
