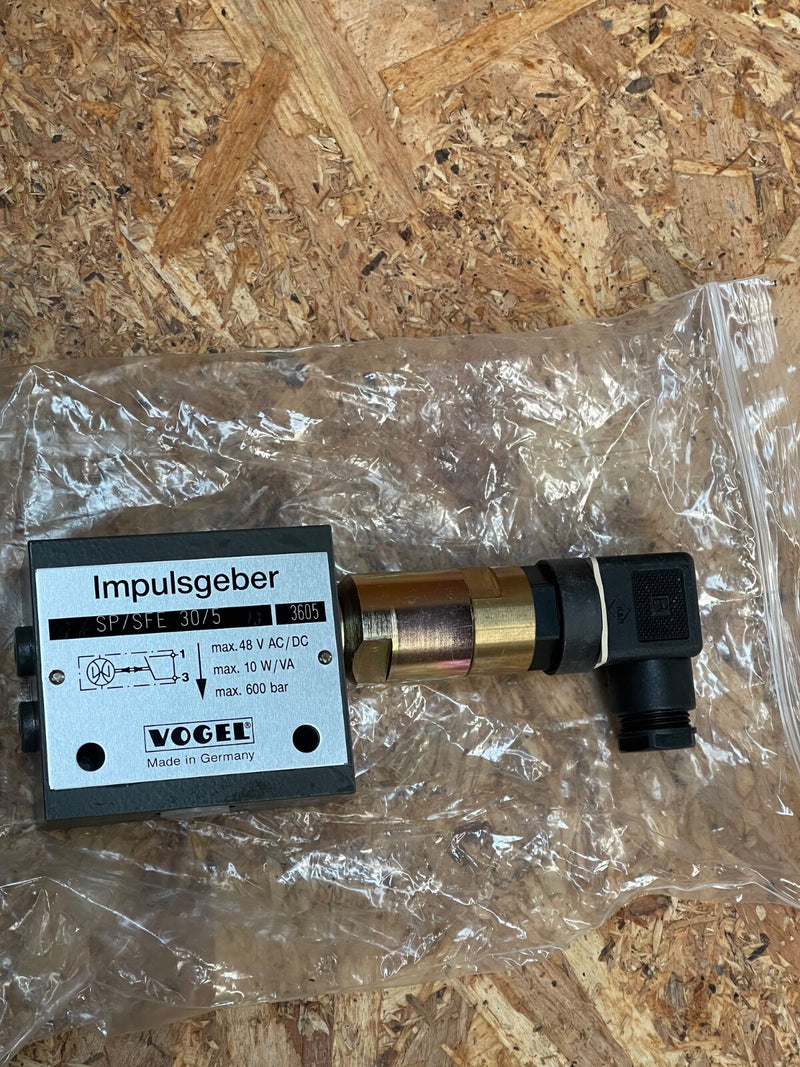

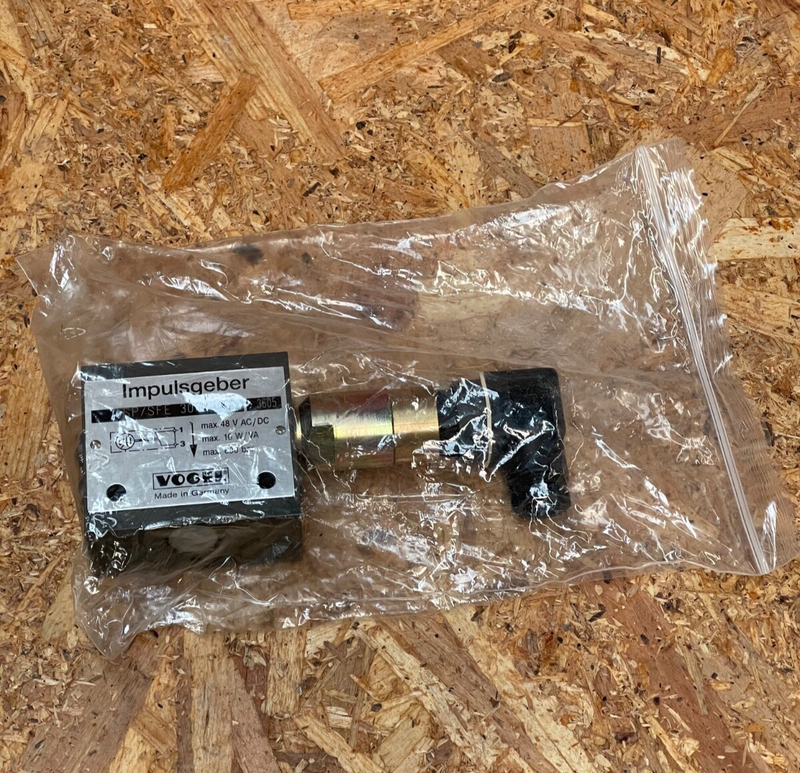

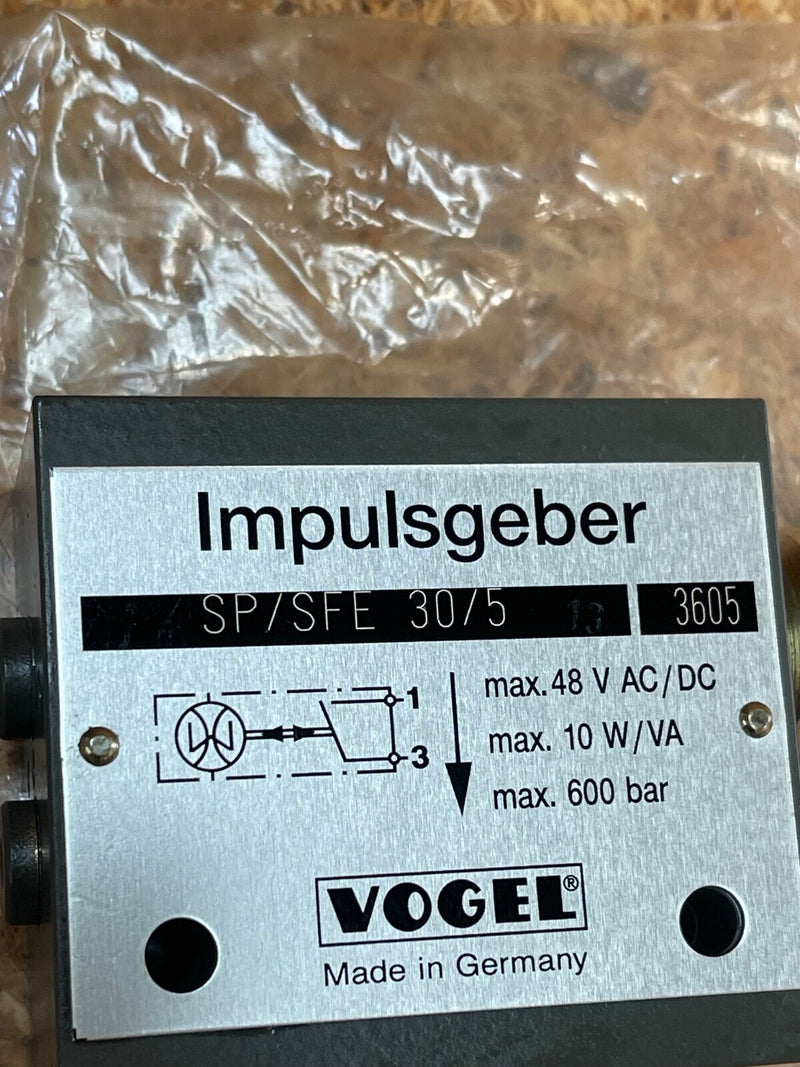

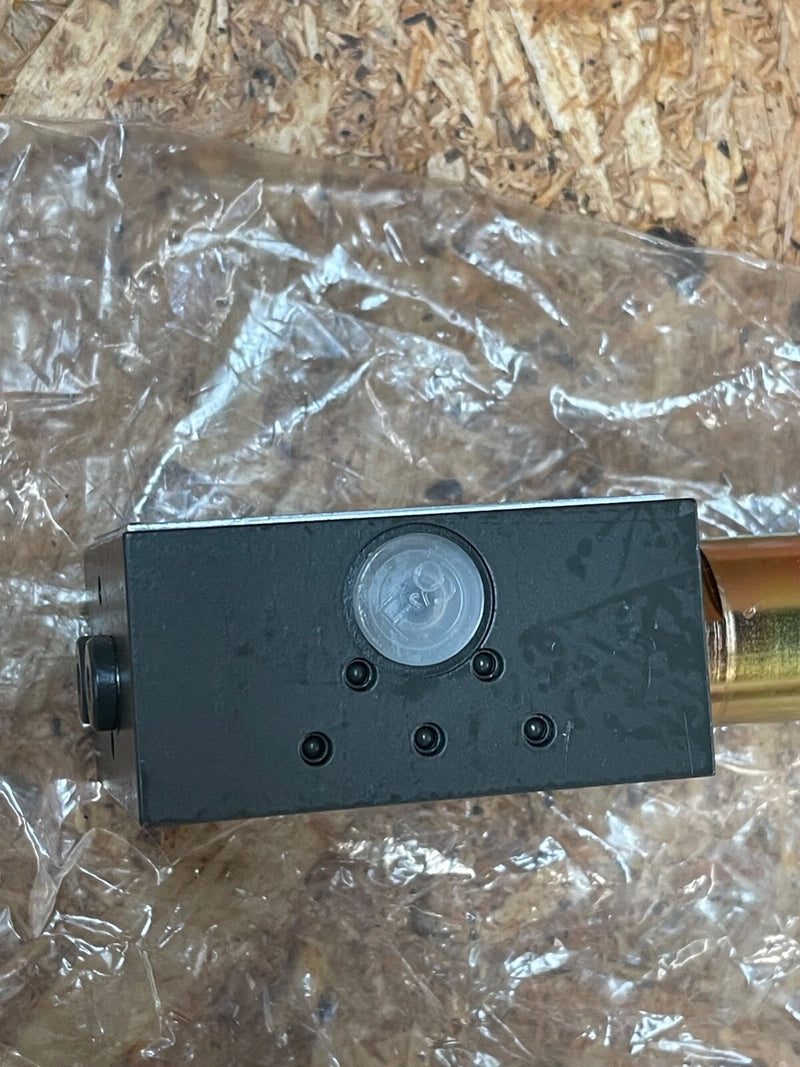

SKF - SP/SFE 30/5 - Impulse Generator for Lubrication Systems, 0.34 cm³/Pulse

The SKF SP/SFE 30/5 is a mechanical impulse generator (Impulsegeber) used for monitoring flow in centralized lubrication systems, particularly in high-pressure environments using oil or grease. It features a reed contact that generates one electrical pulse per defined volume of lubricant, allowing accurate flow tracking and system control.

Key Features:

• Model: SP/SFE 30/5

• Brand: SKF

• Function: Mechanical pulse generator for lubrication monitoring

• Flow Range: 0.1 to 50 cm³/min

• Pulse Volume: 0.34 cm³ per pulse

• Operating Pressure: 4 to 600 bar

• Switching Contact: Reed switch

• Switching Voltage/Capacity: Max. 30 V DC / 10 W

• Connection Type: Plug-in connector DIN 43650

• Protection Class: IP65

• Operating Temperature: –15 °C to +70 °C

• Applications: Suitable for progressive lubrication systems in industrial machinery, metal forming, and compressors
