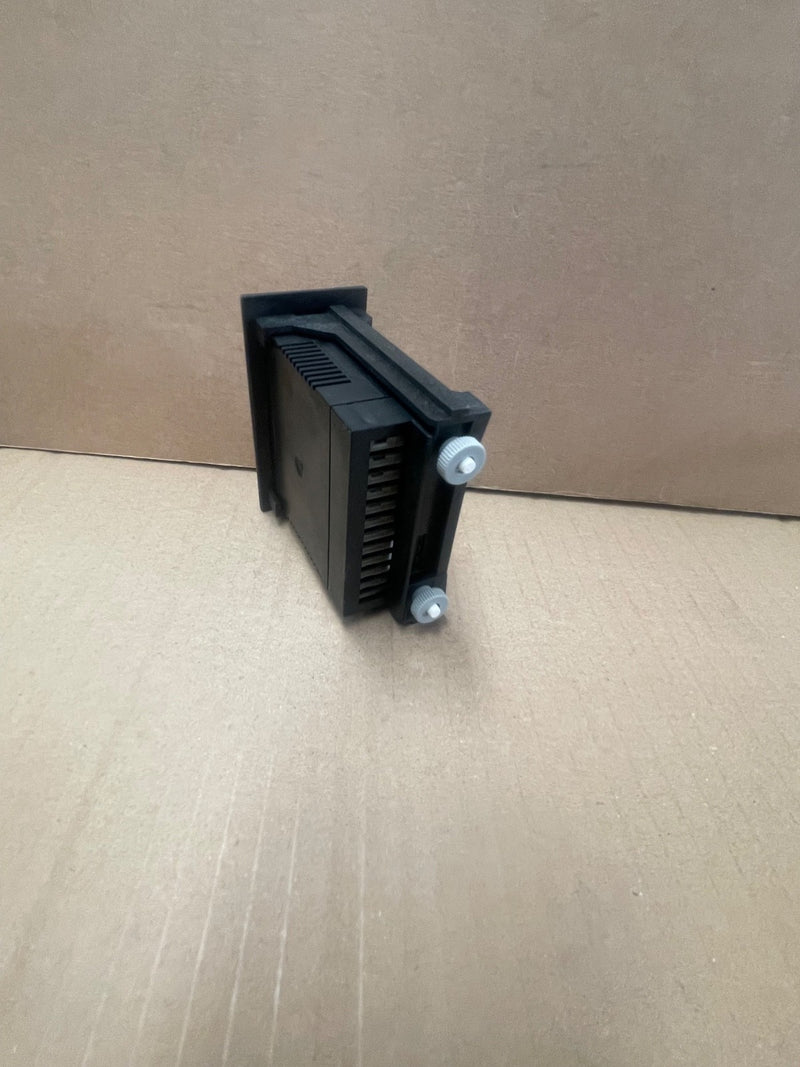

Störk-Tronic – ST710-JB1BV.10FP – ST710 Compact PT100 Temperature Controller

The Störk-Tronic ST710‑JB1BV.10FP (also branded as STORK) is a compact and fully equipped temperature controller designed for straightforward thermostatic applications. It operates without the need for additional components such as cutout relays or main switches, making it ideal for streamlined industrial temperature control.

Key Technical Specifications

• Model / MPN: ST710‑JB1BV.10FP (Order number: 900212.013)

• Supply Voltage: 12–24 V AC or 16–36 V DC

• Sensor Input: Pt100 (3-wire), range –50 °C to 400 °C; Sensor accuracy: ±0.5 K plus ±0.5 % of scale range

• Output: Relay contact K1, change-over type, 16 A (2.2 A) at 250 V; max current limited by connectors or bus bars (~12 A)

• Controls & Display:

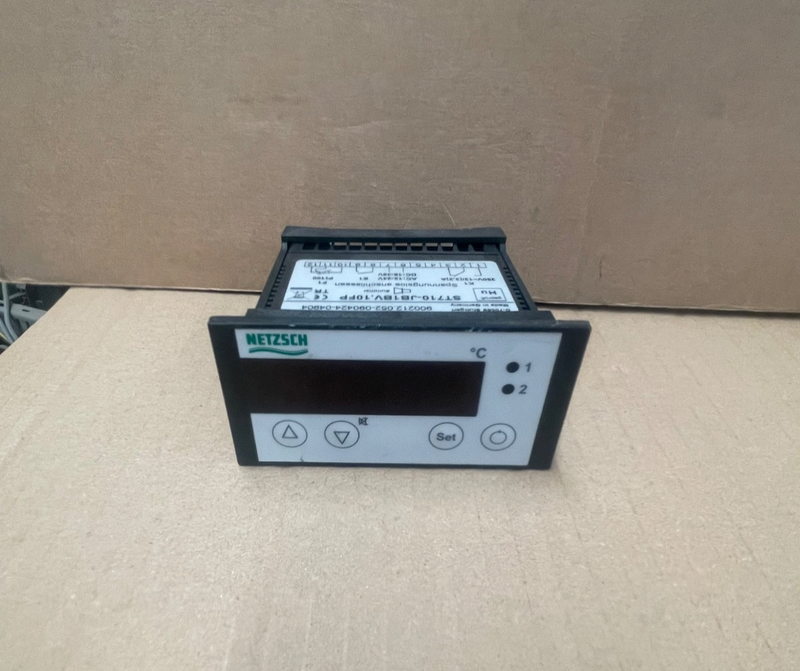

  • Four front-panel keys: UP, DOWN, SET, and Standby

  • 3-digit LED display plus status LEDs for output and input states

• Parameter Levels:

  • Full configuration via multi-level parameters (setpoint, hysteresis, alarms, standby functionality, defrosting, key-locking, and more)

• Physical Dimensions:

  • Front bezel: 84 × 42 mm

  • Panel cut-out: ~67.5 × 31.5 mm (approx. 67.2 × 31.2 mm)

  • Depth: ~85 mm

  • Front protection: IP65 (rear: IP00)

• Environmental Conditions:

  • Operating temp.: 0 °C to 55 °C

  • Storage temp.: –20 °C to +70 °C

  • Max humidity: 75 % (non-condensing)

• Weight: approx. 140 g (without sensor)

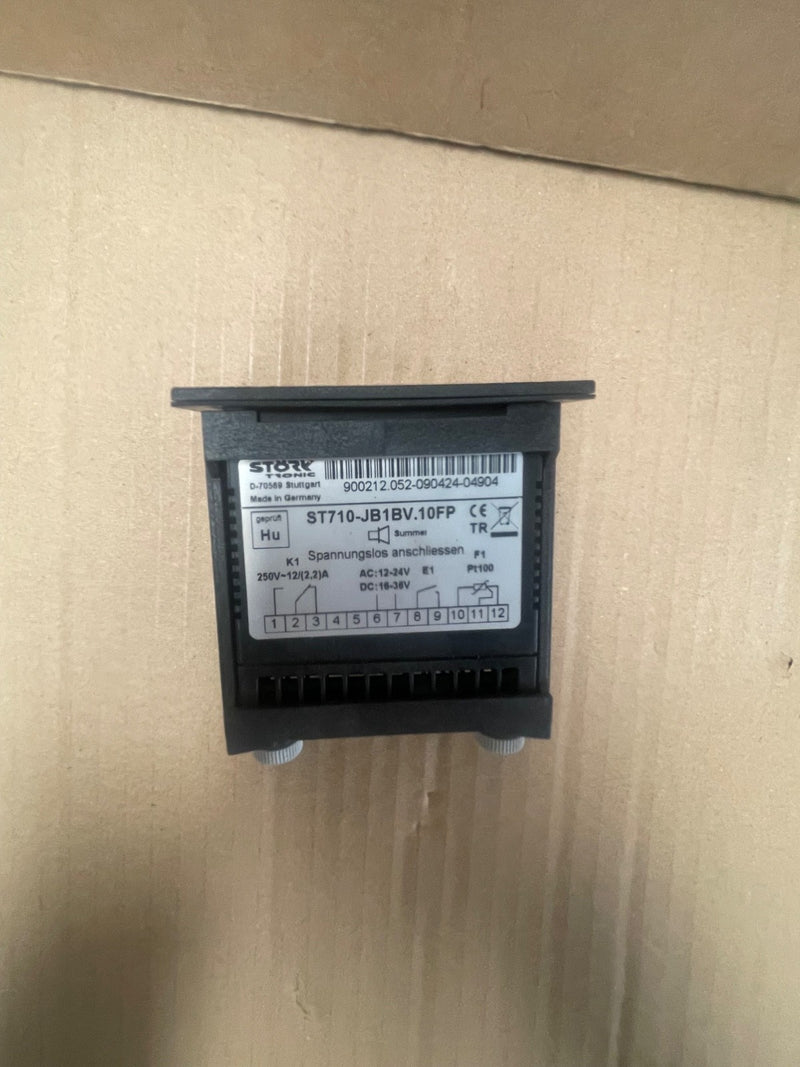

• Connector: 12‑pole screw terminal (5 mm pitch) for wiring up to 2.5 mm² cables
