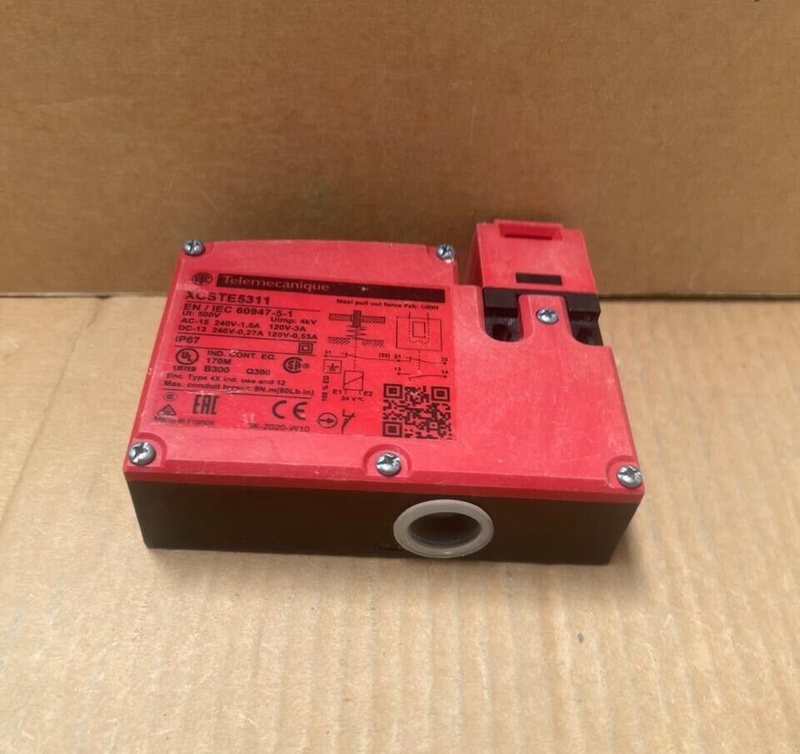

The Telemecanique Sensors XCSTE5311 is a safety interlock switch designed to monitor the position of protective guards, ensuring that machinery operates only when safety conditions are met. This switch features a key-operated turret head and is constructed from durable plastic materials, making it suitable for various industrial safety applications.

Key Features:

• Contact Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO) slow-break contacts, providing reliable switching operations.

• Locking Mechanism: Equipped with a solenoid that locks upon de-energization and unlocks upon energization, enhancing safety by preventing accidental access.

• Cable Entry: Includes one entry tapped for Pg 11, facilitating straightforward wiring and installation.

• Rated Supply Voltage: Operates at 24 V AC/DC with a tolerance of -20% to +10%, accommodating common industrial power supplies.

• Robust Design: Meets IP67 protection standards, ensuring resistance to dust and water ingress for reliable performance in challenging environments.

Applications:

• Monitoring and controlling access to hazardous machine areas.

• Ensuring machinery operates only when safety guards are properly positioned.

• Industrial automation systems requiring safety interlock mechanisms.

Technical Specifications:

• Product Range: Telemecanique Safety Switches XCS

• Material: Plastic housing

• Head Type: Key-operated turret head

• Contact Operation: Slow-break, break-before-make

• Electrical Connection: Terminal with clamping capacity for wires ranging from 0.5 to 1.5 mm²

• Operating Temperature Range: -25°C to +60°C (-13°F to +140°F)

• Mechanical Durability: Rated for up to 1,000,000 operating cycles

• Standards Compliance: Conforms to IEC 60204-1

Telemecanique Sensors - XCSTE5311 - Safety Interlock Switch
