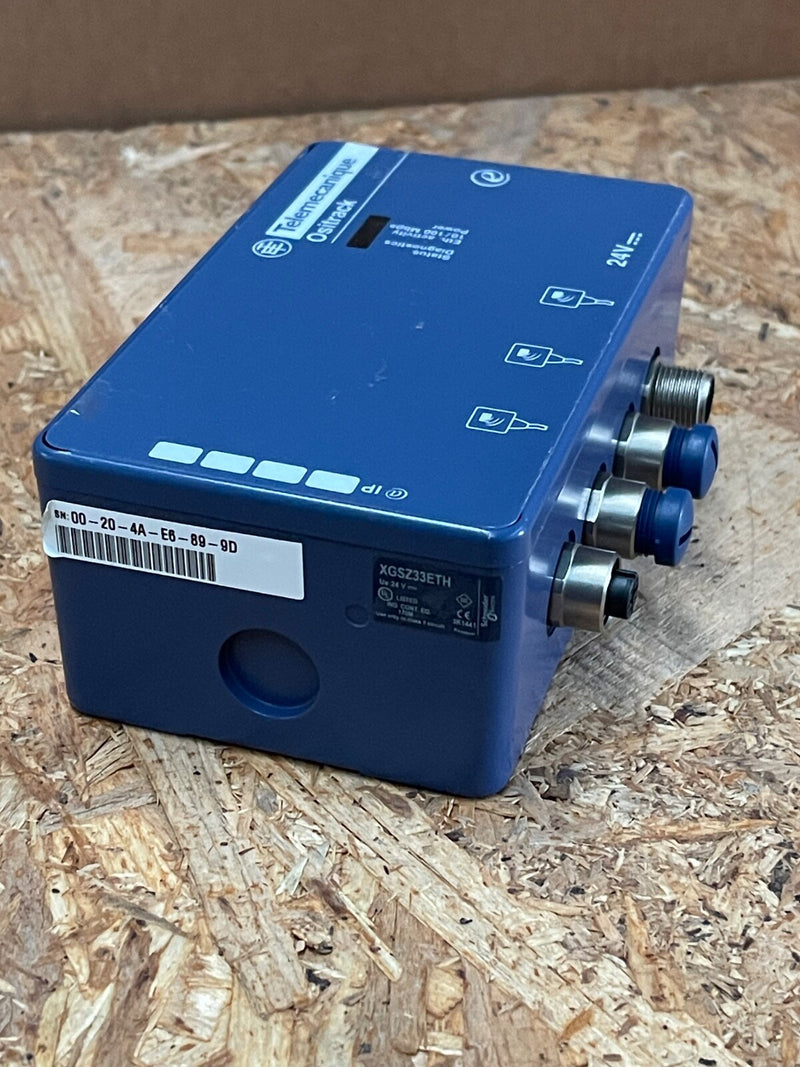

Telemecanique Sensors - XGSZ33ETH - Modbus TCP/IP Ethernet Connection Box

The Telemecanique Sensors XGSZ33ETH is a robust Ethernet connection box designed for seamless integration of up to three XGCS smart antennas into industrial RFID systems. Utilizing Modbus TCP/IP protocol, it ensures efficient and reliable communication in various automation applications.

Key Features:

• Model: XGSZ33ETH

• Brand: Telemecanique Sensors

• Product Type: Ethernet connection box for RFID systems

• Communication Protocol: Modbus TCP/IP

• Number of Channels: 3 channels for connecting XGCS smart antennas

• Compatible Antennas: XGCS49, XGCS89

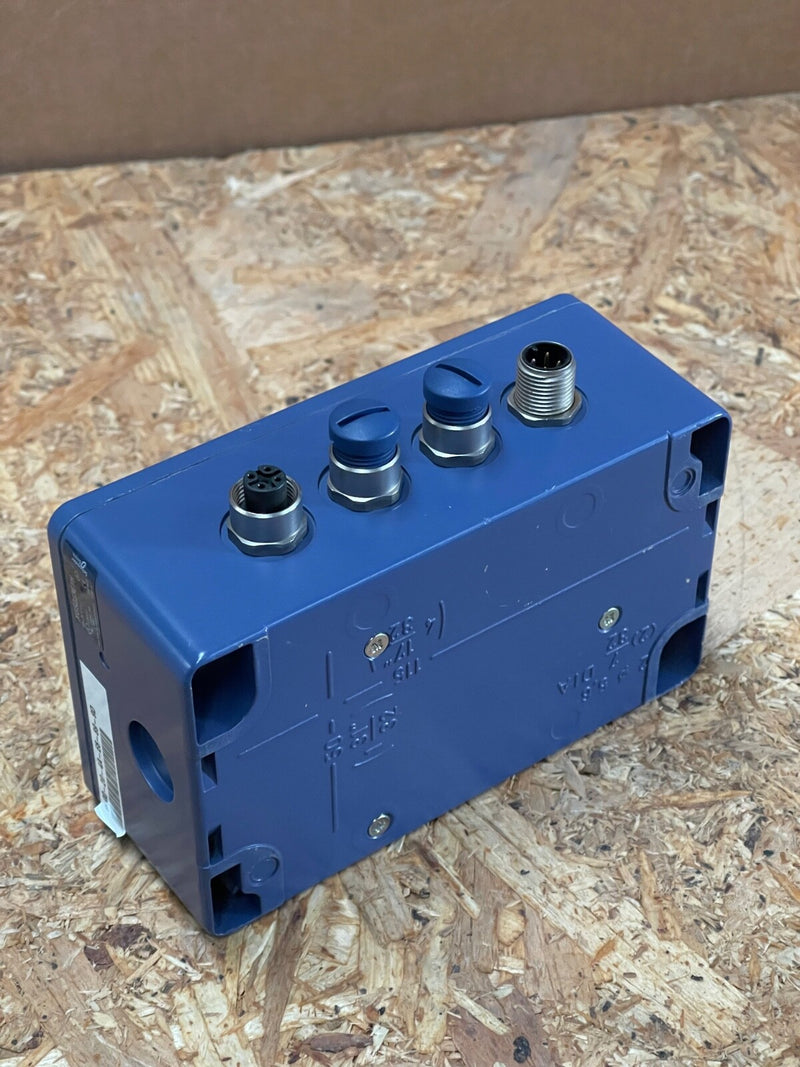

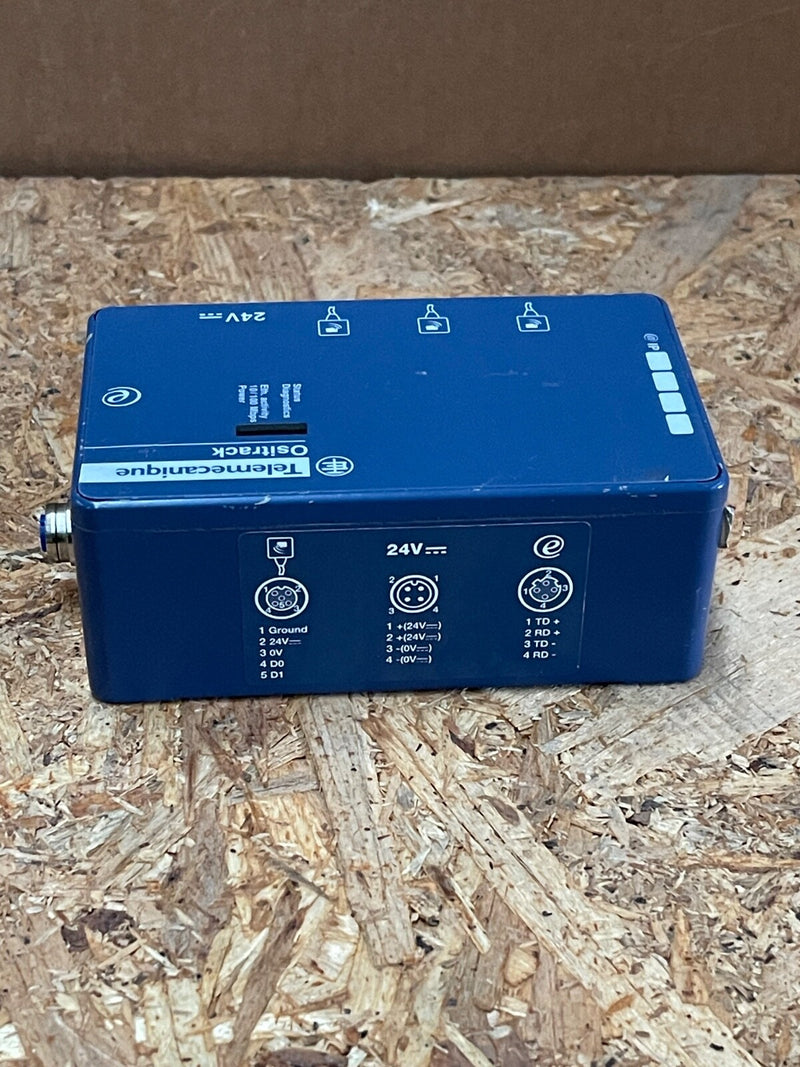

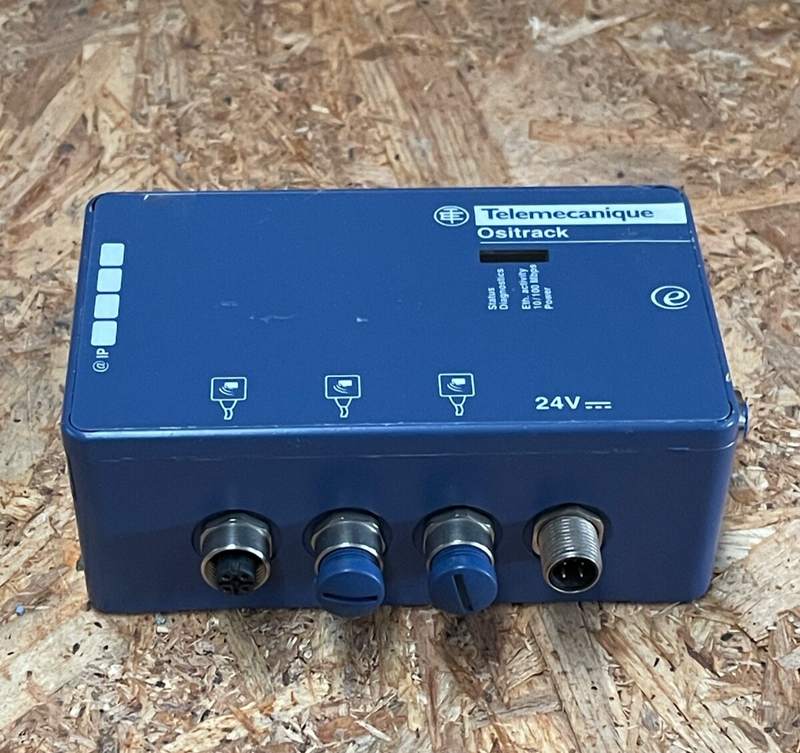

• Electrical Connections:



  • 1 male M12 4-pin connector for 24 V DC power supply (A coding)

  • 3 female M12 5-pin connectors for XGCS stations (A coding)

  • 1 M12 4-pin connector for Ethernet network (D coding)



• Supply Voltage: 24 V DC (Protective Extra Low Voltage)

• Supply Voltage Limits: 19.2–29 V DC

• Power Consumption: Less than 1 W

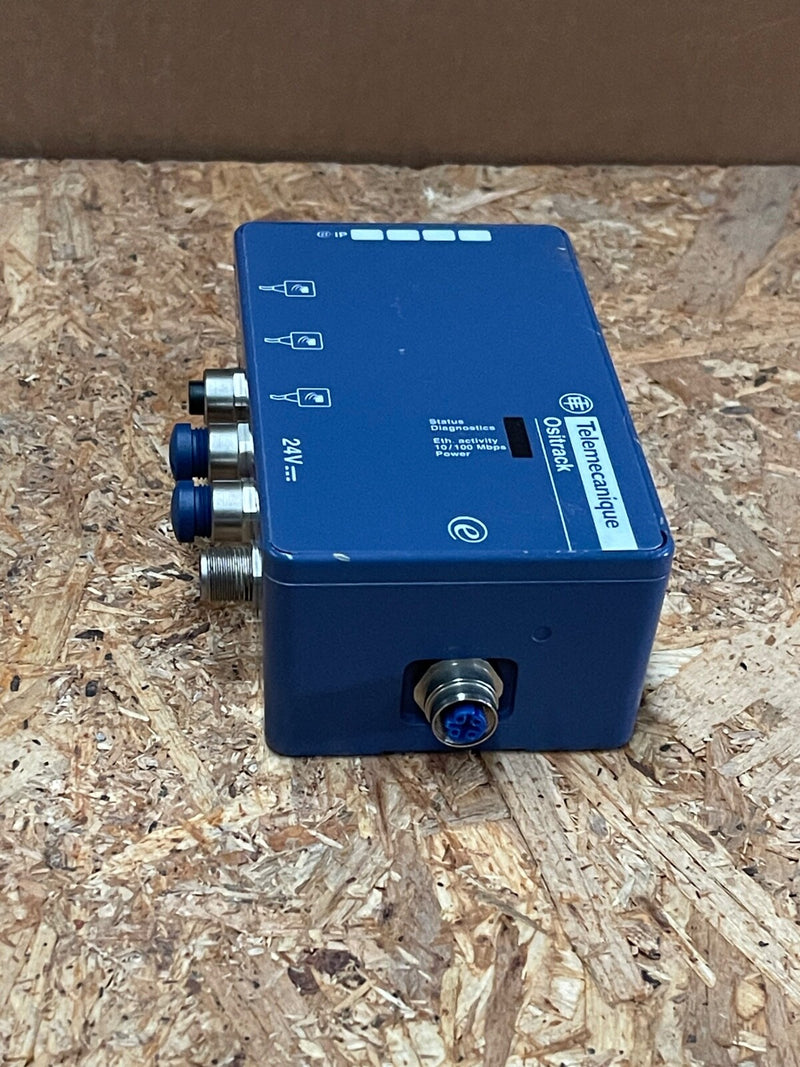

• Status Indicators:



  • Ethernet network activity: 1 green LED

  • Power supply on: 1 green LED

  • Collision detection: 1 red LED

  • Fault: 1 red LED

  • Diagnostics: 1 yellow LED



• Ethernet Ports: 10BASE-T / 100BASE-TX

• Transmission Rate: 10 to 100 Mbit/s

• Bus Conformity Class: A10

• Register Words: 1 to 123 words

• Protection Rating: IP65

• Operating Temperature Range: 0°C to +70°C

• Storage Temperature Range: -40°C to +85°C

• Relative Humidity: 30% to 95%

• Certifications: CE, UL

• EMC Compliance: Class B EMC filter conforming to EN 55022; Level 3 EMC filter conforming to IEC 61000

• Housing Material: Durable industrial-grade enclosure

• Dimensions: 17.2 cm (W) x 6.0 cm (H) x 24.2 cm (D)

• Weight: Approximately 1.06 kg

• Applications: Ideal for industrial automation systems requiring reliable RFID integration, such as material handling, packaging, and logistics
