The Schneider Electric XCSTE7311 is a plastic safety interlock switch designed to enhance machine safety by monitoring the position of guards, doors, or protective covers. It features a key-operated turret head and provides interlocking with solenoid, ensuring that the safety circuit remains engaged until the solenoid is energized. This model operates at a 24 V supply voltage and includes two normally closed (NC) slow-break contacts for reliable disconnection in safety applications.

Key Features:

• Interlocking with Solenoid: Locks on de-energization and unlocks upon energization, providing controlled access to hazardous areas.

• Durable Construction: Made from robust polyamide (PA) plastic, offering durability and resistance to environmental factors.

• High Safety Standards: Achieves up to Category 4, Performance Level e (PL e) per EN/ISO 13849-1, and SIL 3 per EN/IEC 61508 when properly integrated.

• Compact Design: Rectangular form factor with a key-operated turret head for versatile mounting options.

Technical Specifications:

• Product Range: Preventa Safety Detection

• Component Name: XCSTE

• Material: Plastic (Polyamide)

• Contact Configuration: 2 NC slow-break contacts

• Solenoid Contact: 1 NC slow-break

• Cable Entry: 1 entry tapped for Pg 11

• Rated Supply Voltage: 24 V AC/DC (-20% to +10%)

• Power Consumption: 10 VA

• Mechanical Durability: 1,000,000 cycles

• Positive Opening Force: 15 N

• Ingress Protection: IP67 per EN/IEC 60529 and EN/IEC 60947-5-1

• Standards Compliance: EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508, CSA C22.2 No 14

• Certifications: UL, CSA

• Dimensions: 110 mm (W) x 33 mm (D) x 94 mm (H)

• Weight: 0.36 kg

Applications:

• Industrial Machinery: Ensures safe access to hazardous areas by controlling guard positions.

• Automated Systems: Provides safety interlocking in automated production lines.

• Packaging Equipment: Enhances operator safety by monitoring access points on packaging machines.

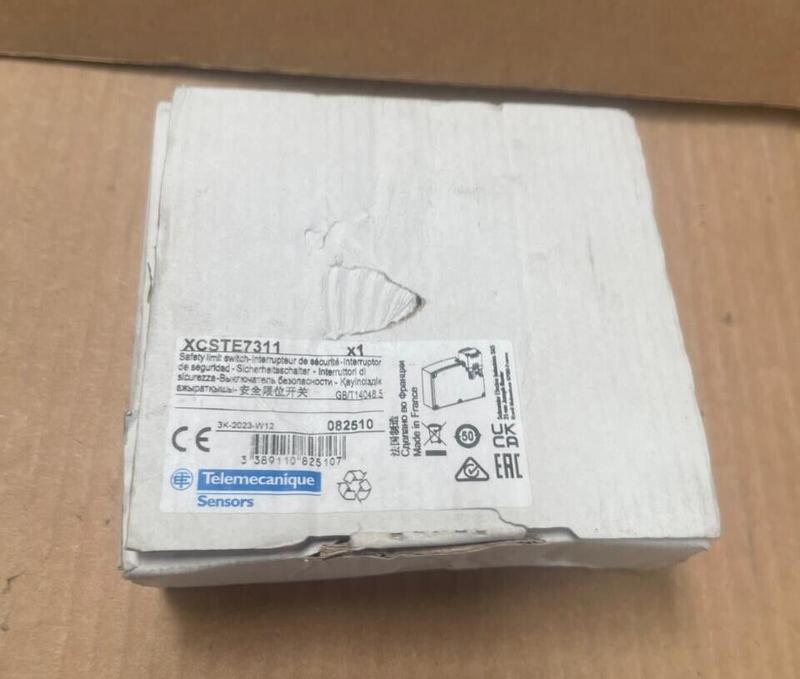

Telemecanique - XCSTE7311 - Plastic Safety Interlock Switch with Solenoid,
