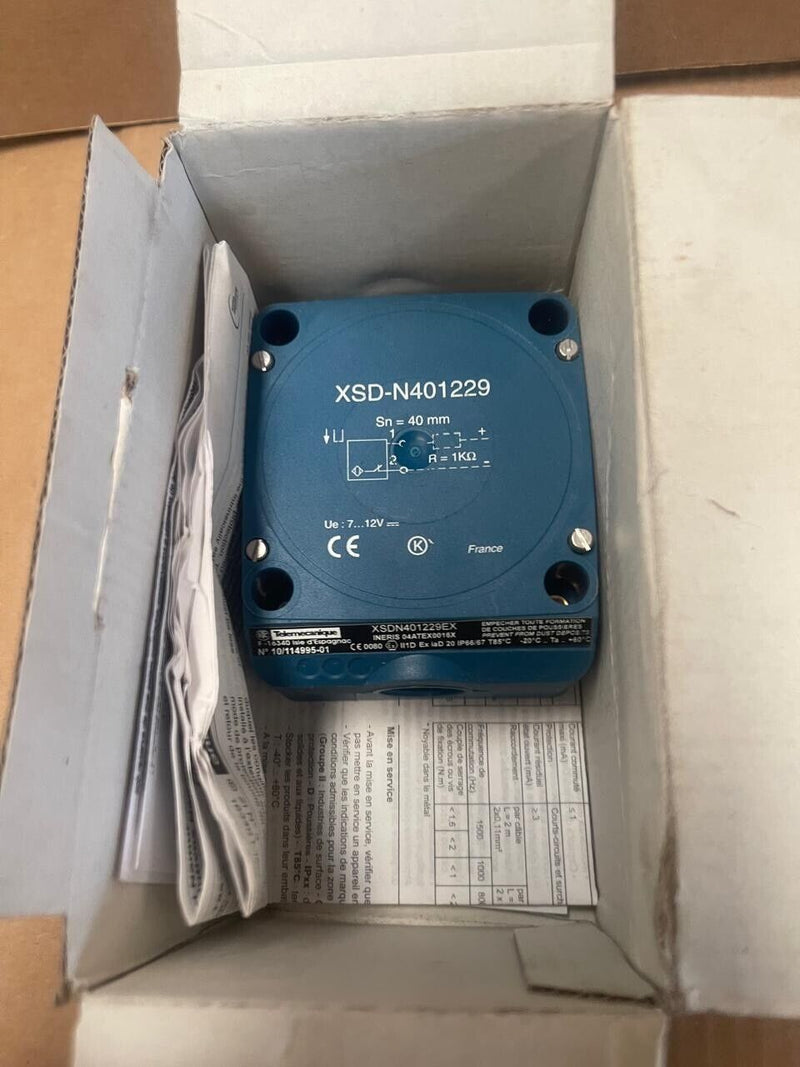

The TELEMECANIQUE XSD N401229EX is an inductive proximity sensor designed for industrial applications requiring non-contact detection of metal objects. Key features include:

• Sensing Distance: Nominal sensing distance (Sn) of 40 mm, suitable for detecting metal objects within this range.

• Design and Material: Compact form factor of 80x80x40 mm with a plastic housing, ensuring durability and resistance to industrial environments.

• Output Type: Discrete output with a normally closed (NC) function, utilizing a NAMUR output circuit type for reliable signal processing.

• Electrical Specifications:

• Rated supply voltage: 7 to 12 V DC

• Switching capacity: ≤ 1 mA

• Residual current: ≤ 3 mA in open state

• Switching frequency: ≤ 25 Hz

• Connection: Equipped with screw-clamp terminals for secure and straightforward wiring.

• Protection and Compliance:

• Ingress Protection: IP67, providing high resistance against dust and water ingress.

• ATEX Certification: Suitable for use in explosive dust atmospheres, marked as II1 D-Ex ia IIIC T85°C Da IP66/67.

• Standards: Complies with EN/IEC 60079-0 and EN/IEC 60079-11.

• Operating Conditions:

• Ambient operating temperature: -20°C to +60°C (-4°F to +140°F)

• Additional Features:

• Red LED indicator for output state, providing visual feedback of the sensor’s status.

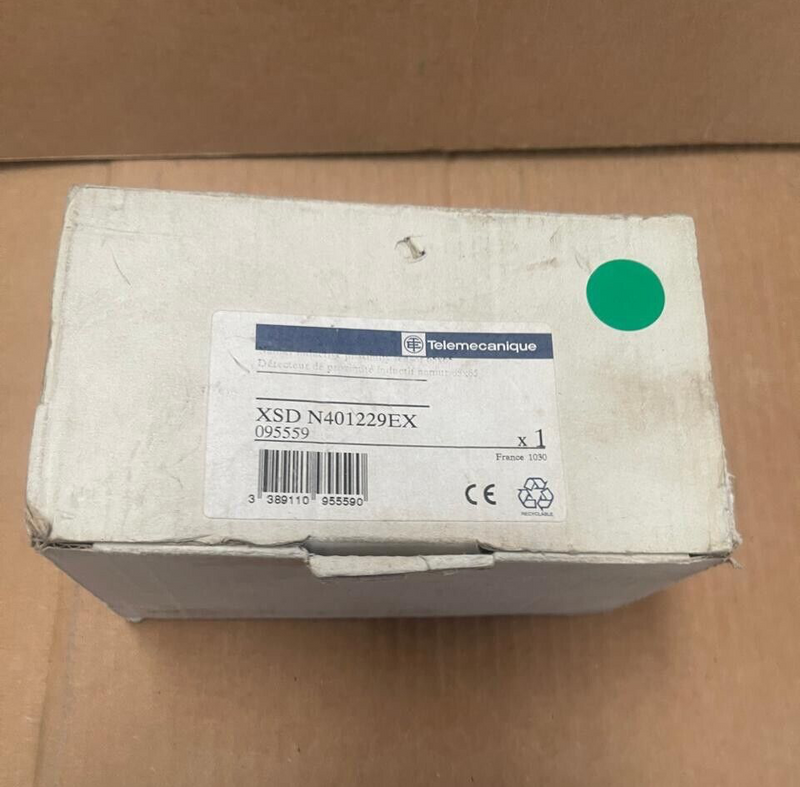

Telemecanique - XSD N401229EX - Inductive Proximity Sensor Sn 40 mm, 7-12 V DC
