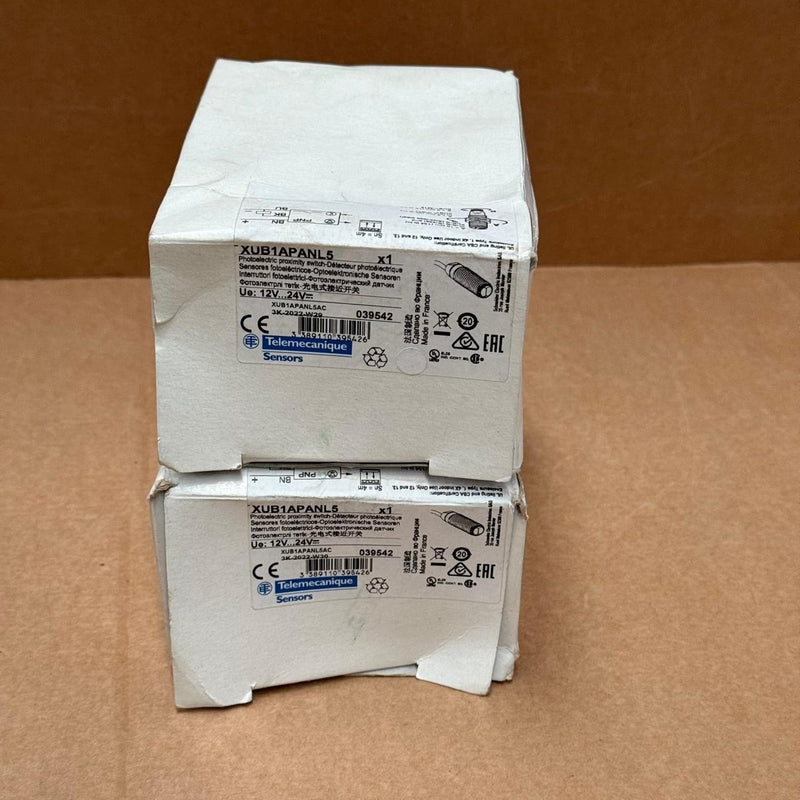

Telemecanique – XUB1APANL5 – Photoelectric Reflex Sensor, M18, 4 m, PNP NO

The XUB1APANL5 is a reflex-type photoelectric sensor from Telemecanique Sensors (Schneider Electric). Featuring an M18 housing, it detects objects at up to 4 m using an infrared beam and reflector setup. With a PNP normally open output and a 5 m cable, it seamlessly integrates into industrial automation and material handling systems.

Key Features:

• Manufacturer: Telemecanique Sensors (Schneider Electric)

• Model / P/N: XUB1APANL5

• Type: Infrared reflex (retro‑reflective) sensor; requires reflector

• Housing: Cylindrical M18, plastic (PBT)

• Sensing Distance: Up to 4 m

• Output Configuration: PNP, 1 NO

• Supply Voltage: 12–24 VDC with reverse‑polarity protection

• Cable: 5 m length, pre‑wired

• Protection: IP65/67 rated; resistant to dust and moisture

• Switching Frequency: 500 Hz; response/recovery time approx. 1 ms

• Operating Temp Range: –25 °C to +55 °C
