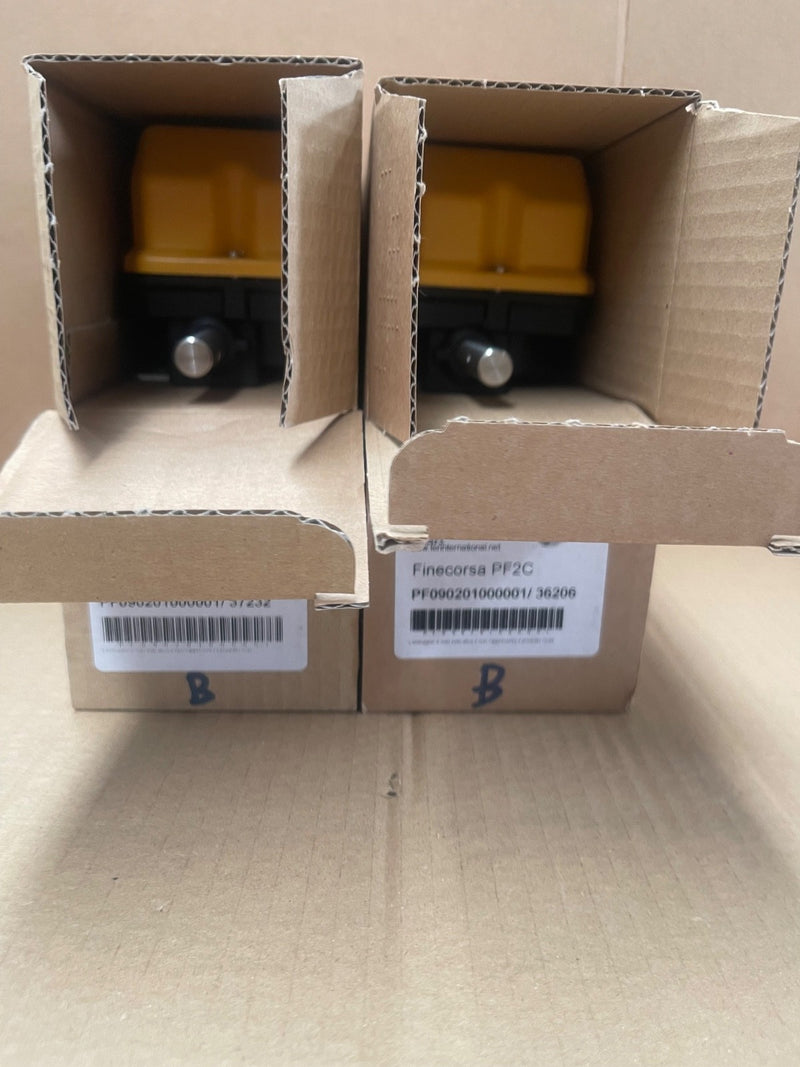

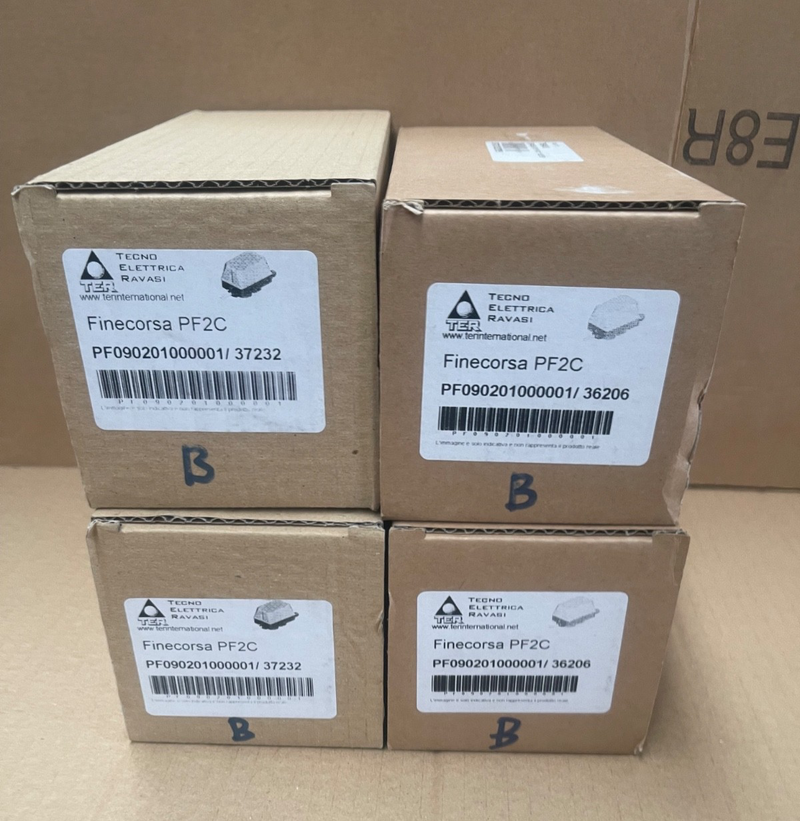

TER – PF2C PF090201000001 – Rotary Limit Switch (Ratio 1:1, 2 Snap‑Switch)

The TER PF2C PF090201000001 is a rugged rotary limit switch engineered for heavy-duty industrial motion control applications. With a 1:1 gear ratio and dual-snap snap-switch operation, it’s ideal for precise monitoring of shaft revolutions and controlling cam-actuated operations in machinery, cranes, or motors.

Key Features:

• Model: PF2C PF090201000001 – 1:1 gear ratio with two snap-action (NO+NC) microswitches

• Gear Ratios Available: Standard configurations from 1:1 up to 1:295 depending on cam set and gearing

• Switch Types: Snap‑action double‑pole double‑throw PRSL0036XX (1 NO + 1 NC)

• Materials: Stainless steel shafts, self-lubricating thermoplastic gears, sintered bronze bushes—designed for wear resistance in harsh environments

• Thermal & Current Ratings:

 – Utilisation Category AC‑15, 3 A @ 250 VAC, 10 A thermal current

 – Insulation Voltage: 300 VAC

 – Mechanical Life: up to 1×10⁶ operations

• Environmental Protection: IP65 enclosure, operational −25 °C to +70 °C, storage −40 °C to +70 °C, Insulation class II

• Mounting & Connections: Screw terminals with self‑lifting pads per EN50013, M20 cable gland entry, tightening torque ~0.8 Nm

• Certifications: CE marking, UL/cUL available on request—compliant with EN 60204‑1, EN 60947‑1 & ‑5‑1, EN 60529 standards
