Thiim – PAD 3802 ADK – Phase Failure & Asymmetry Monitoring Relay 440 VAC

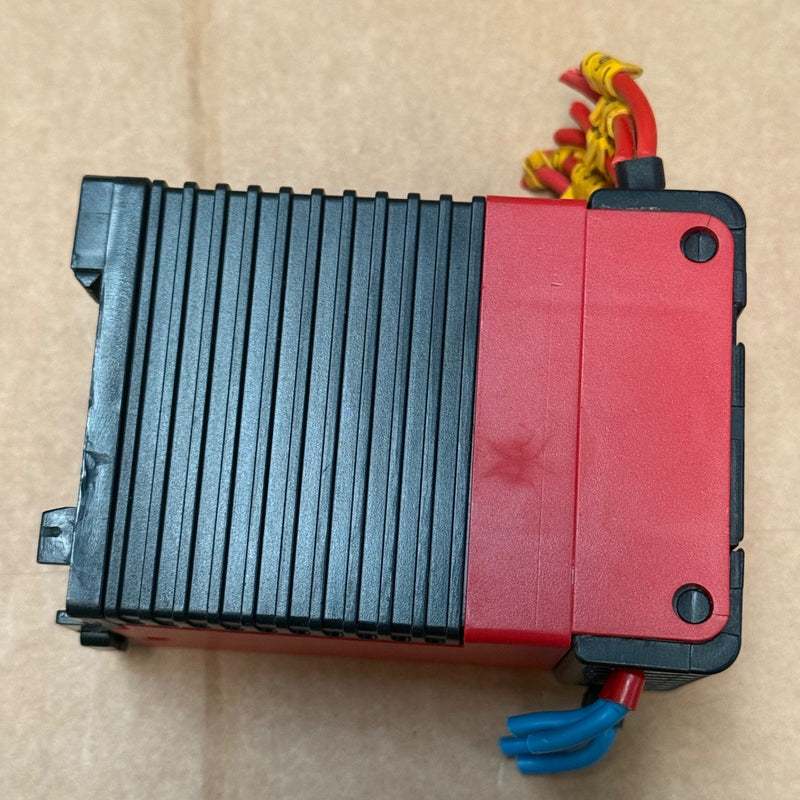

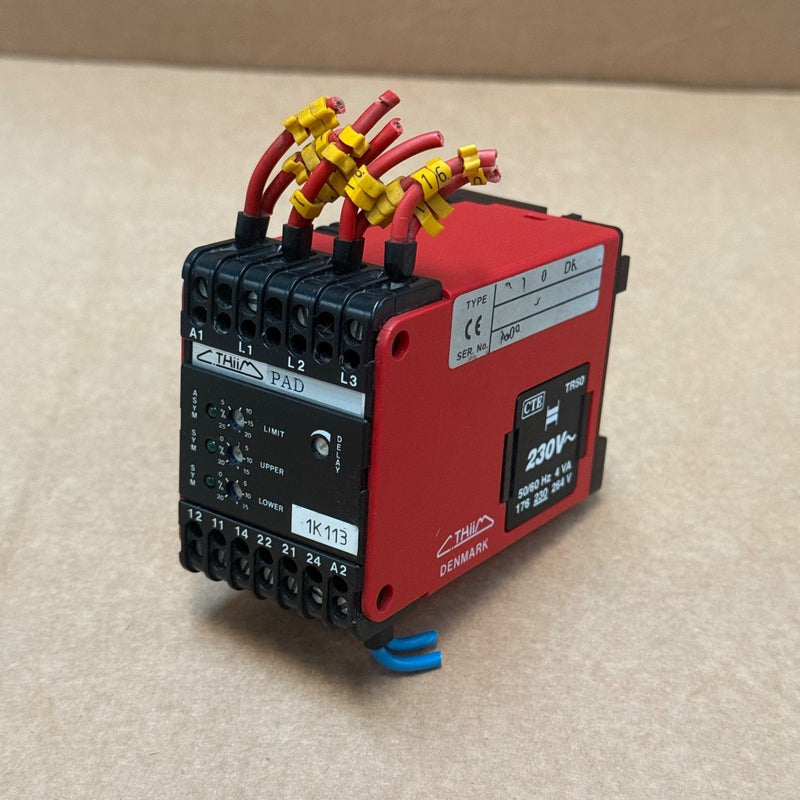

The Thiim PAD 3802 ADK (also referenced as PAA 3802 FNK) is a DIN‑rail mountable phase/frequency monitor relay designed to detect phase failure, asymmetry, and phase sequence errors in three-phase systems up to 440 VAC. Manufactured in Denmark, it safeguards motors and electrical equipment by de-energizing control circuits under fault conditions.

Key Specifications:

• Model: PAD 3802 ADK (PAA 3802 FNK)

• Function: Phase failure, phase sequence & asymmetry monitor relay

• Input Voltage: 374–484 VAC (nominal 440 VAC), 50/60 Hz

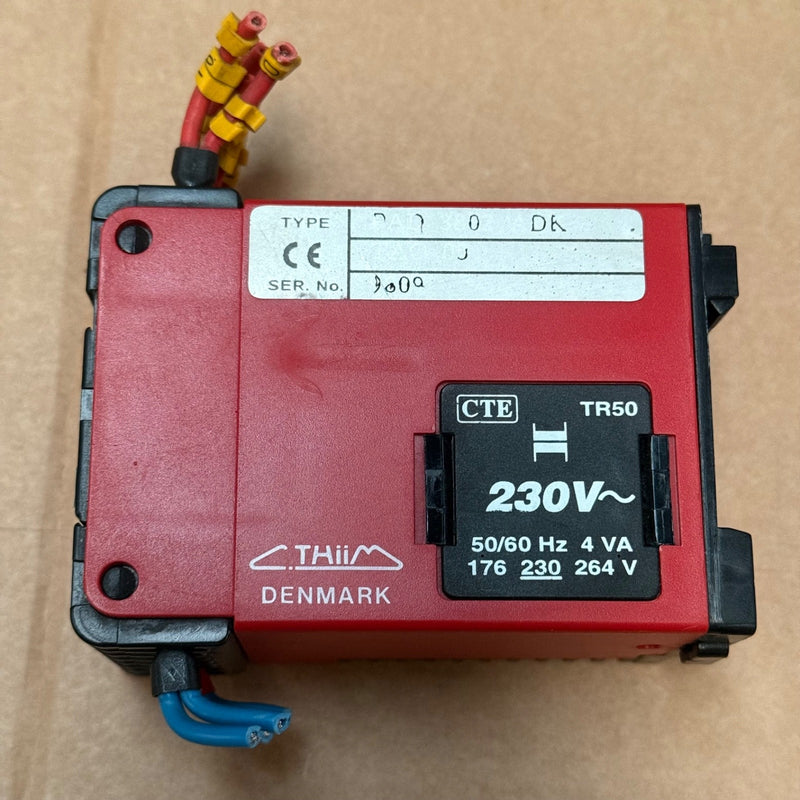

• Control Coil: TR50 transformer, 230 VAC primary, secondary tap options: 176/230/264 VAC ()

• Power Consumption: Approx. 4 VA

• Adjustable Settings (via front potentiometers):

 – Upper and lower voltage limits

 – Asymmetry threshold

 – Delay timer

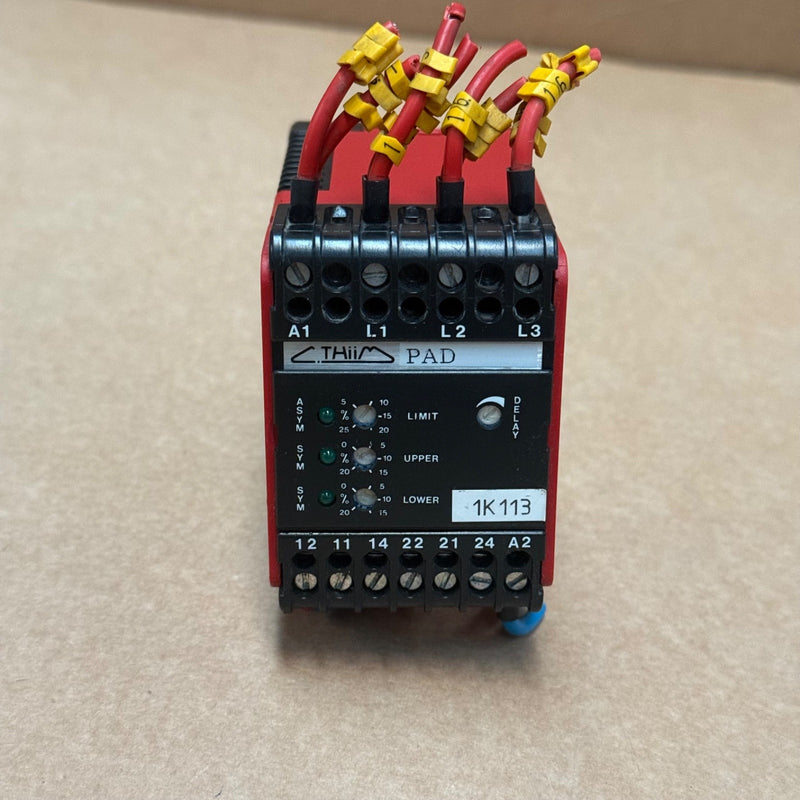

• Terminals: Screw‑clamp for phases L1–L3, control coil A1/A2, and relay outputs 11/12/14 & 21/22/24

• Mounting: DIN‑rail or panel via integrated bracket

• Origin: Made in Denmark, ~230 g weight
