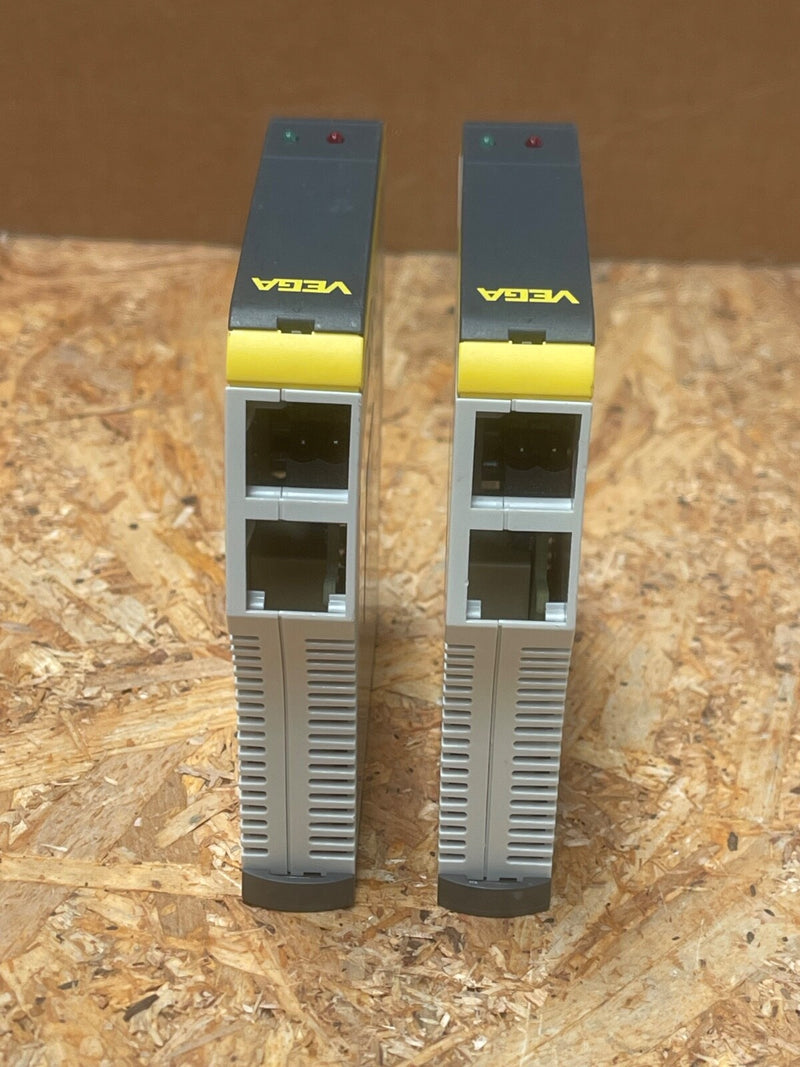

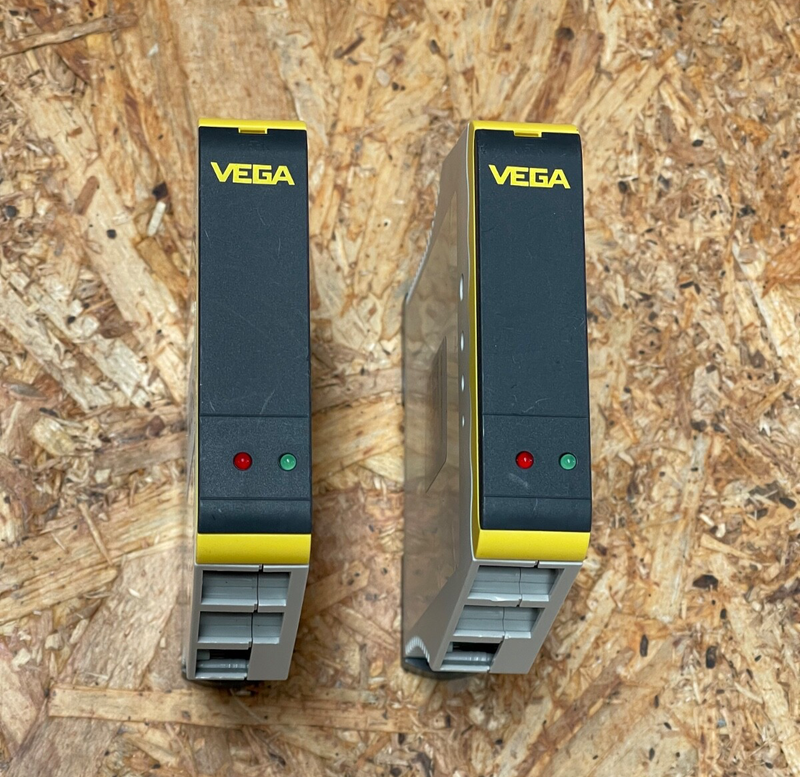

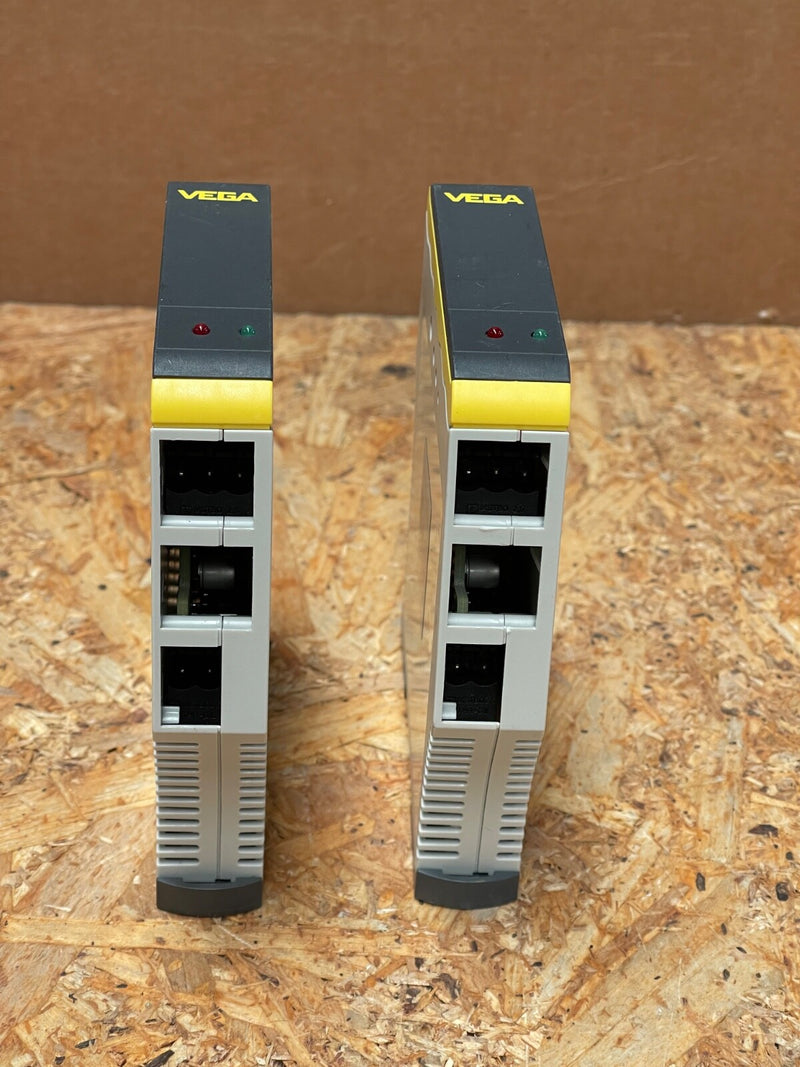

VEGA – VEGATRENN 141 – 4–20 mA HART Signal Barrier / Isolator

The VEGA VEGATRENN 141 (TRENN141.AxxxKxx) is a single-channel, loop-powered signal barrier that provides galvanic separation, intrinsic safety, and bidirectional HART communication for 4–20 mA sensors. Designed for hazardous locations, it supplies sensors intrinsically safely and enables full HART access via front sockets or terminals.

🔧

Technical Specifications

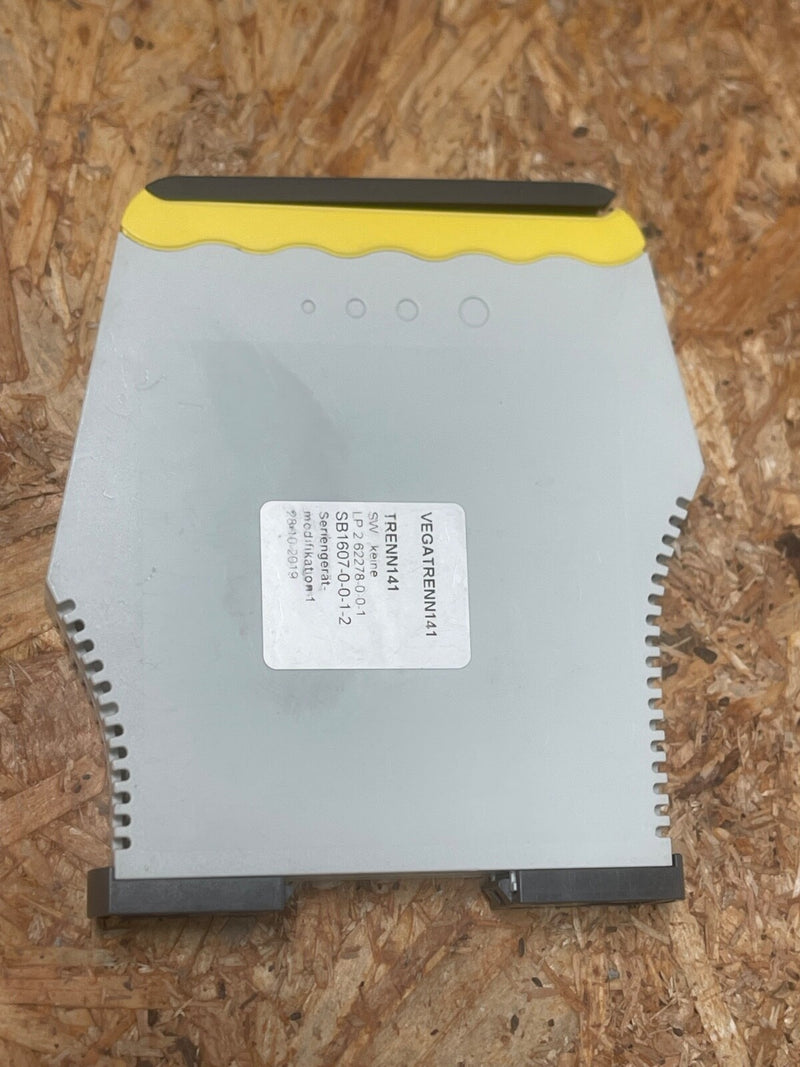

• Model / P/N: VEGATRENN 141, TRENN141.AxxxKxx

• Type: Single-channel Ex barrier for 4–20 mA/HART loops

• Power Supply: 24–230 VAC or 24–65 VDC; loop-powered sensor supply.

• Output Signal: 4–20 mA retransmitted; ≤26 mA short-circuit current; <50 mV ripple RMS

• HART Support: Full bidirectional transparency; sockets at the front under hinged cover

• Isolation: Galvanic separation between sensor and output loops; Ex ia-rated for hazardous zones

• Approvals: ATEX, IECEx, SIL 2, CE, c‑UL‑us, NEPSI, EAC, UKCA

• Operating Range: –20…+60 °C; IP20; rail-mounted (35×7.5 mm); detachable, coded terminals

• Dimensions: Approx. 113 × 56 × 20 mm; ~150–200 g
