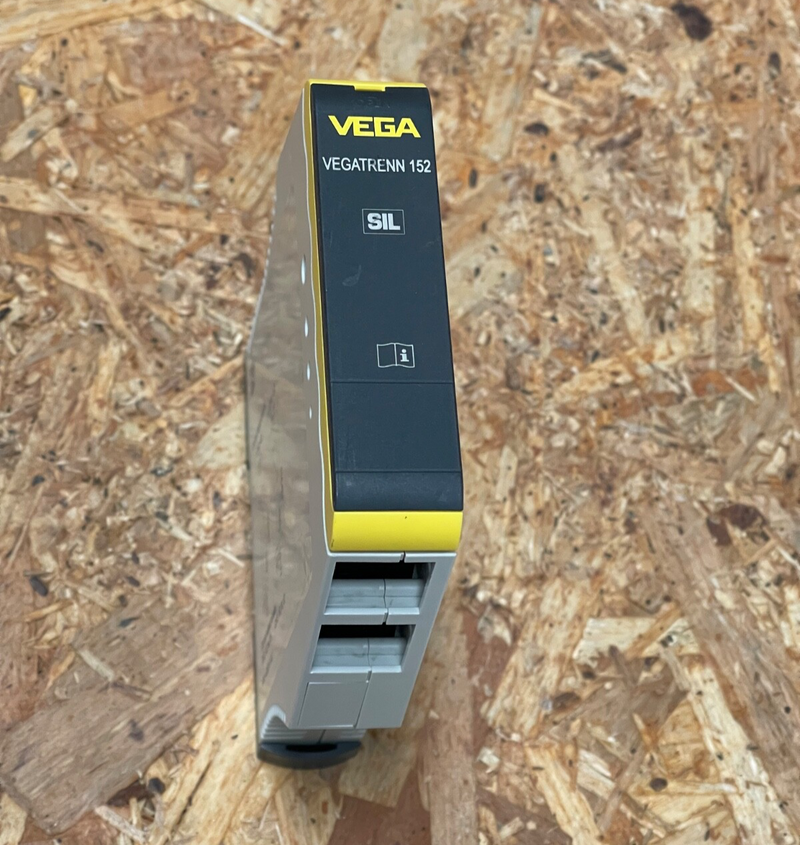

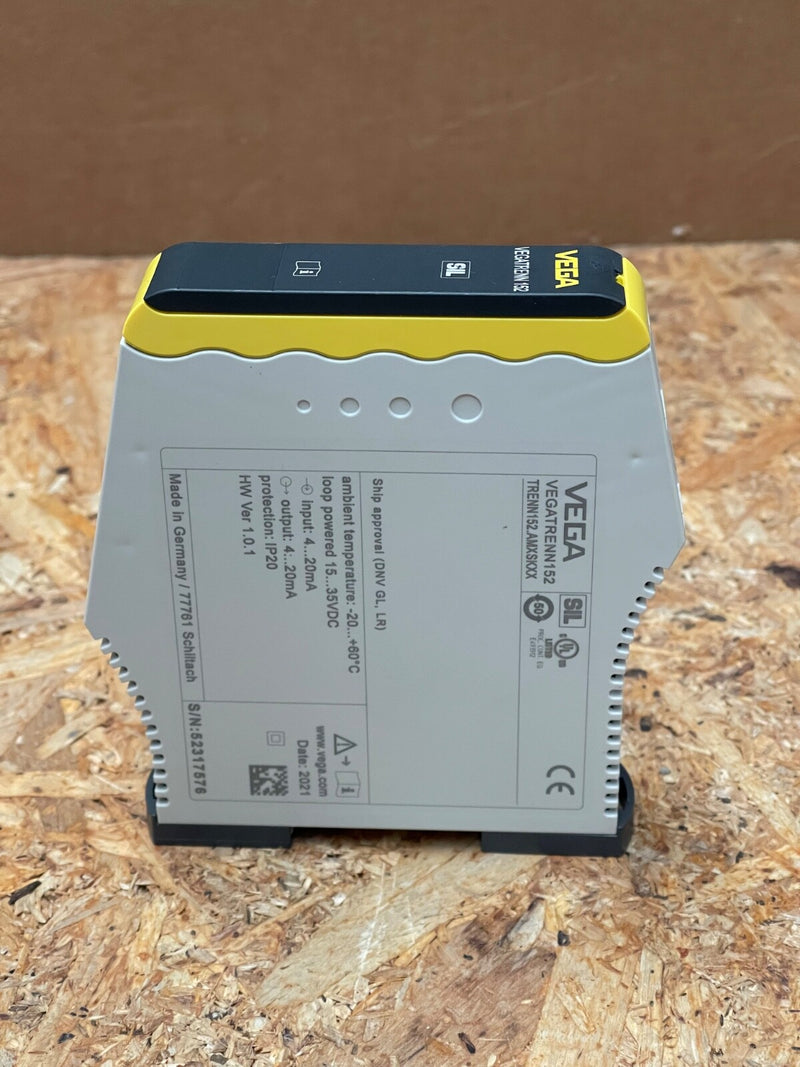

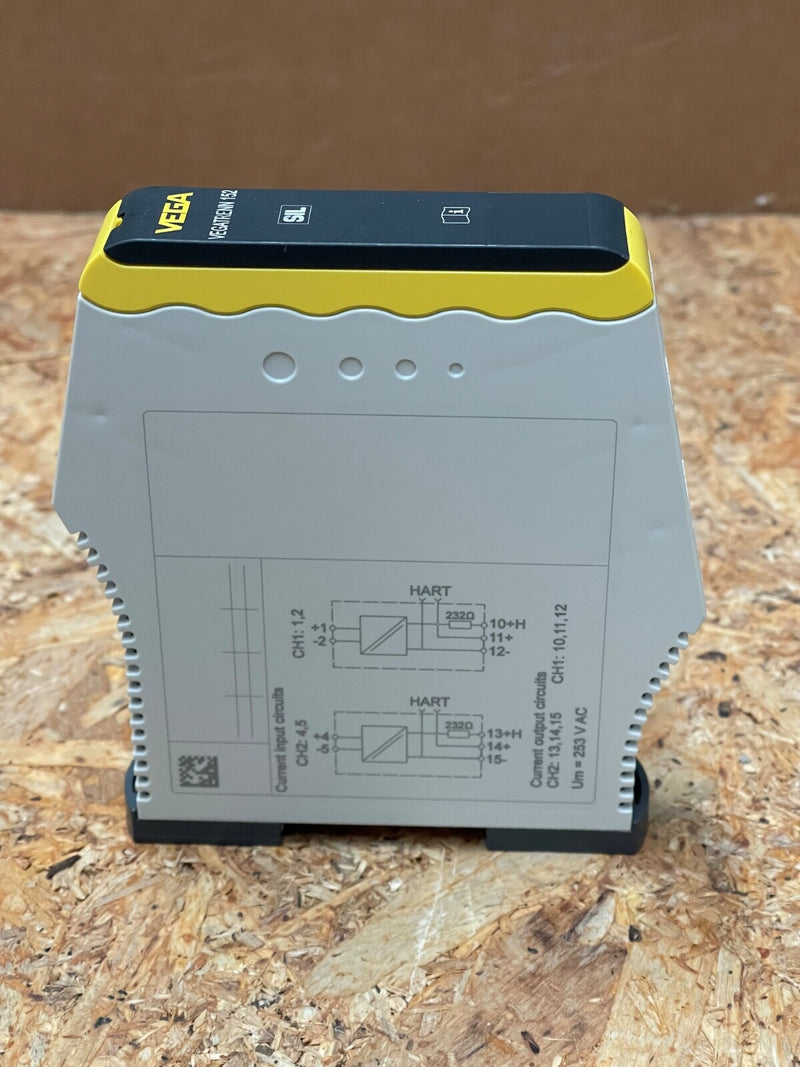

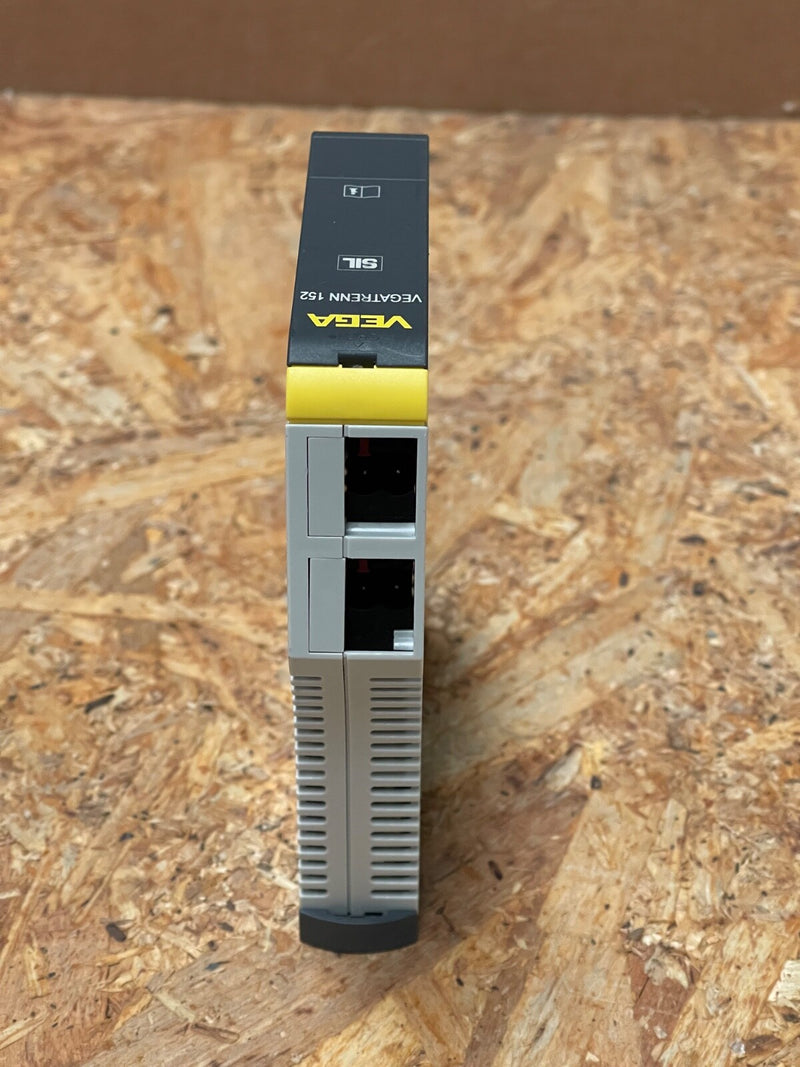

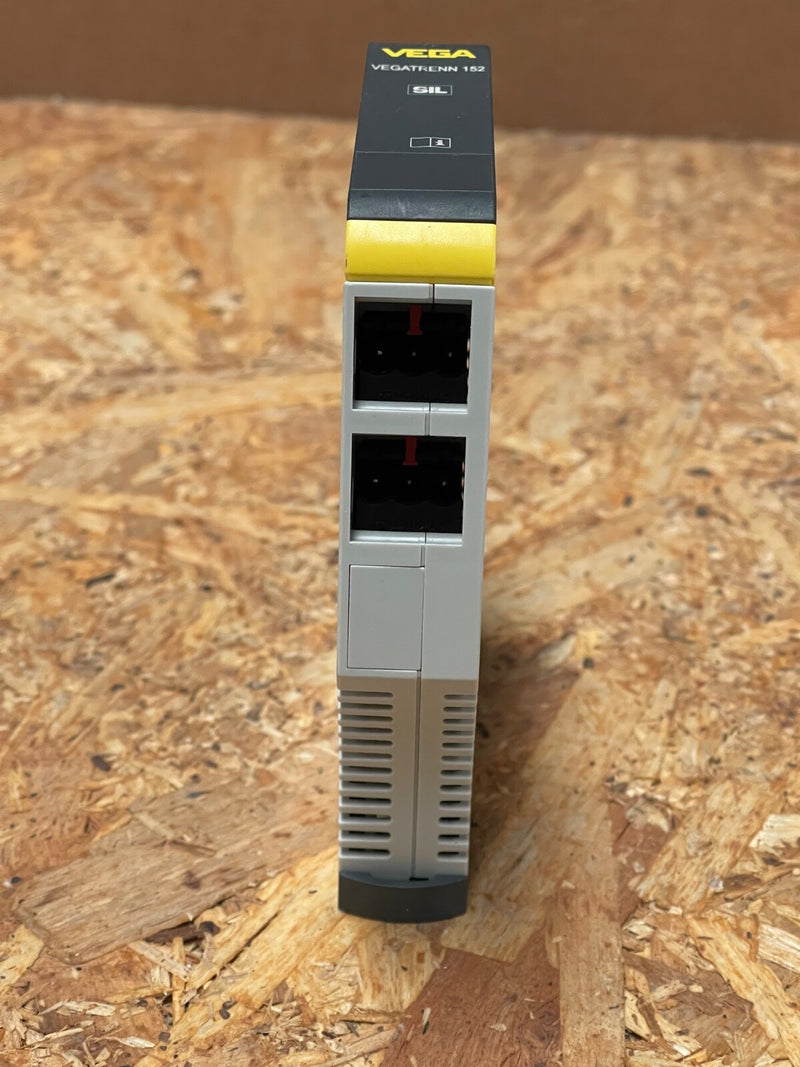

VEGA – VEGATRENN 152 (TRENN152.AMXSKXX) – 2‑Channel HART Isolating Barrier

The VEGA VEGATRENN 152 (model TRENN152.AMXSKXX) is a compact 2-channel passive isolating barrier for intrinsically safe 4–20 mA/HART loops. It’s loop-powered (15–35 V DC) and supports full bidirectional HART communication, making it ideal to bridge Ex-approved sensors into non-Ex systems safely—certified for Ex zones and SIL 2 environments.

Key Features & Technical Specifications:

• Model: VEGATRENN 152 (TRENN152.AMXSKXX) – 2-channel HART isolator/breaker

• Loop-Powered: 15–35 V DC, no external power needed

• Channels: 2 × 4–20 mA with bidirectional HART support; up to 5 HART devices per channel

• Loop Voltage: ≥16 V at 4–20 mA (≤3 V drop at 4 mA; ≤5 V at 20 mA)

• HART Access: Transparent HART via front jacks or terminals

• Certifications: ATEX / IECEx Ex approval, SIL 2, CSA, EAC, NEPSI, UKCA

• Ingress/IP Rating: IP20; DIN-rail mountable (35×7.5 mm); coded removable terminals

• Operating Range: −20…+60 °C; <20 mV output ripple, <40 µA output current ripple

• Dimensions/Weight: 113 × 52 × 20 mm; ~150 g
