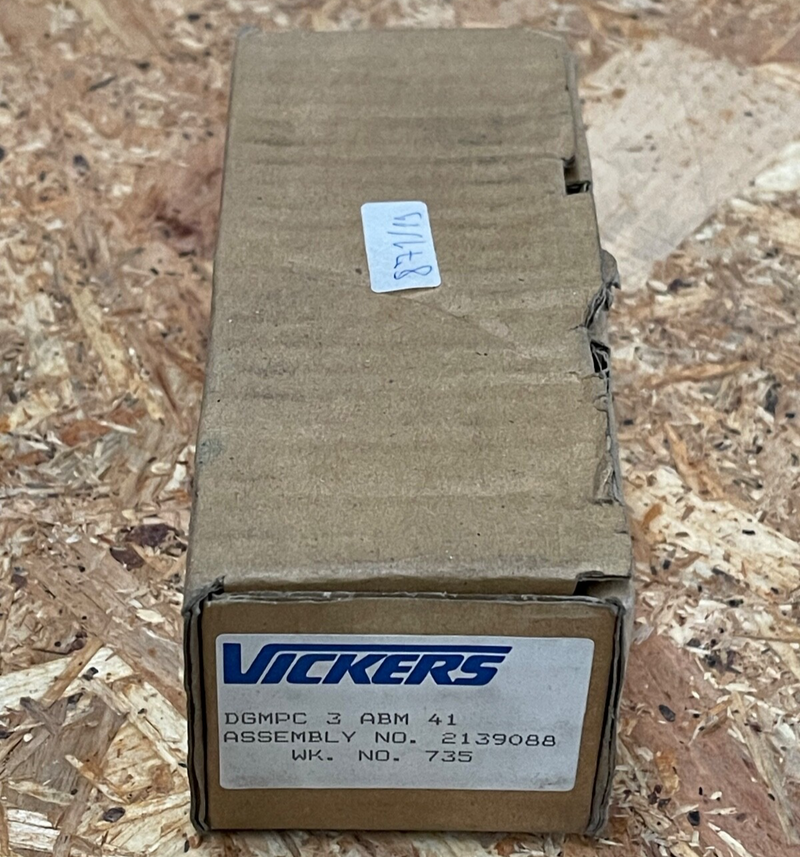

Vickers - DGMPC-3-ABM-41 - CETOP 03 Pilot Operated Check Valve Dual Line 315 bar

The Vickers DGMPC-3-ABM-41 is a CETOP 03 (NG6) modular pilot operated check valve designed for precise flow control in hydraulic systems. This dual-line valve allows free flow in one direction and blocks flow in the reverse direction until pilot pressure is applied, ensuring reliable operation in various applications.

Key Features:

• Model: DGMPC-3-ABM-41

• Brand: Vickers (by Danfoss)

• Valve Type: Pilot Operated Check Valve

• Mounting Interface: CETOP 03 (ISO 4401-03)

• Maximum Operating Pressure: 315 bar (4,500 psi)

• Maximum Flow Rate: 60 L/min (16 US gpm)

• Cracking Pressure: 2.5 bar (36 psi)

• Seal Material: Viton

• Operating Temperature Range: -20°C to +80°C

• Weight: Approximately 0.8 kg (1.8 lbs)

• Applications: Ideal for hydraulic systems requiring controlled flow and prevention of reverse flow in actuators
