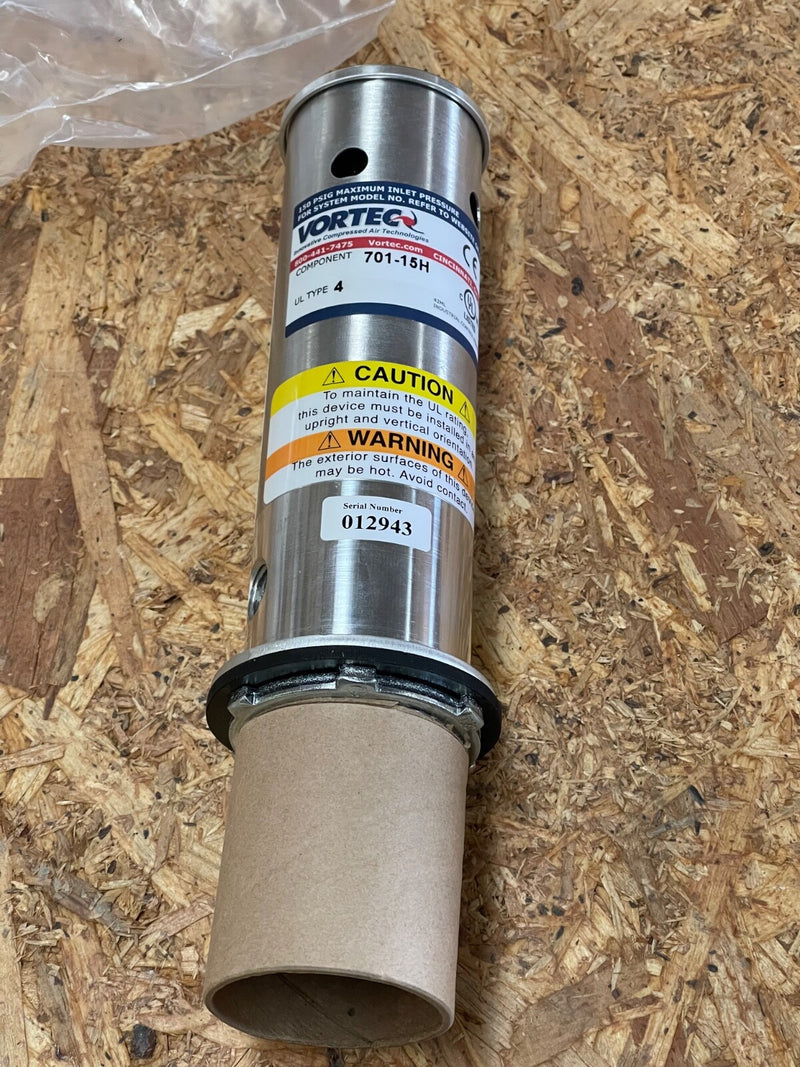

Vortec - 701-15H - Panel Guard Enclosure Cooler, 900 BTU/hr, 15 SCFM, NEMA 4

The Vortec 701-15H Panel Guard Enclosure Cooler is engineered to provide efficient and reliable cooling for electrical enclosures in industrial settings. Utilizing vortex tube technology, it delivers 900 BTU/hr of cooling capacity without the need for refrigerants, making it an eco-friendly solution. Equipped with a mechanical thermostat, it ensures optimal temperature control without requiring additional wiring.

Key Features:

• Model: 701-15H

• Brand: Vortec

• Cooling Capacity: 900 BTU/hr (264 W)

• Air Consumption: 15 SCFM (425 SLPM) at 100 psig

• Thermostat Type: Mechanical (non-adjustable)

• Enclosure Rating: NEMA 4 (IP56)

• Air Inlet: 1/4” NPT

• Mounting: Top mount

• Noise Level: 60–79 dBA at 6 ft

• Operating Temperature Range: Up to 175°F (79°C)

• Certifications: UL Listed
