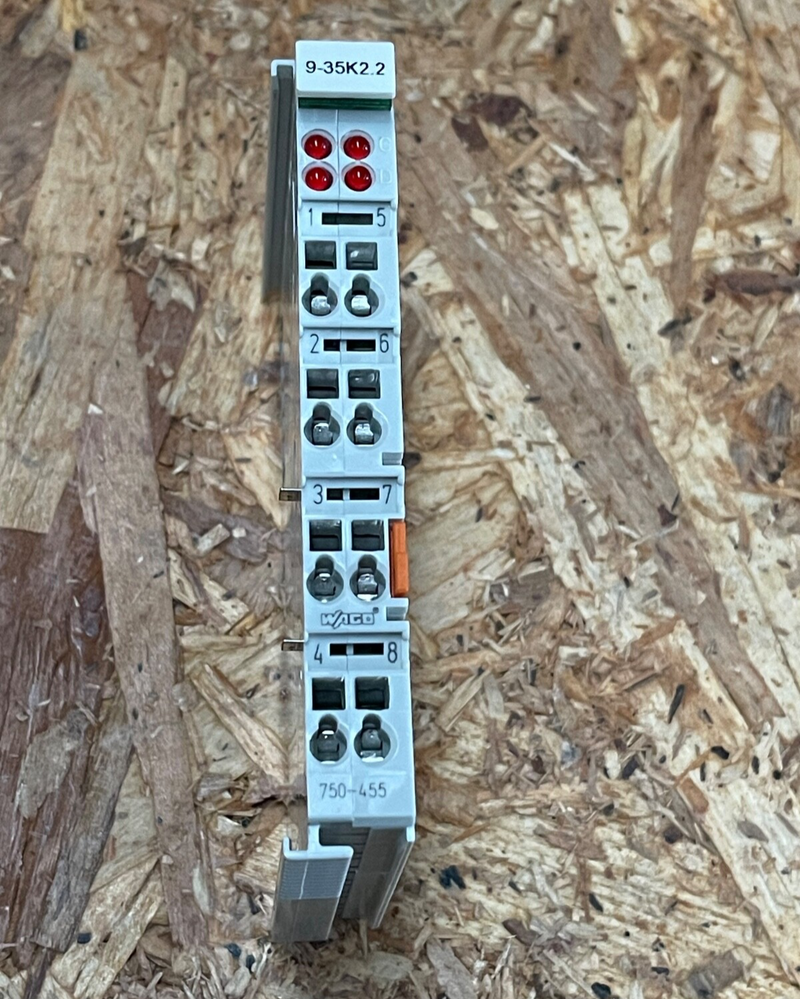

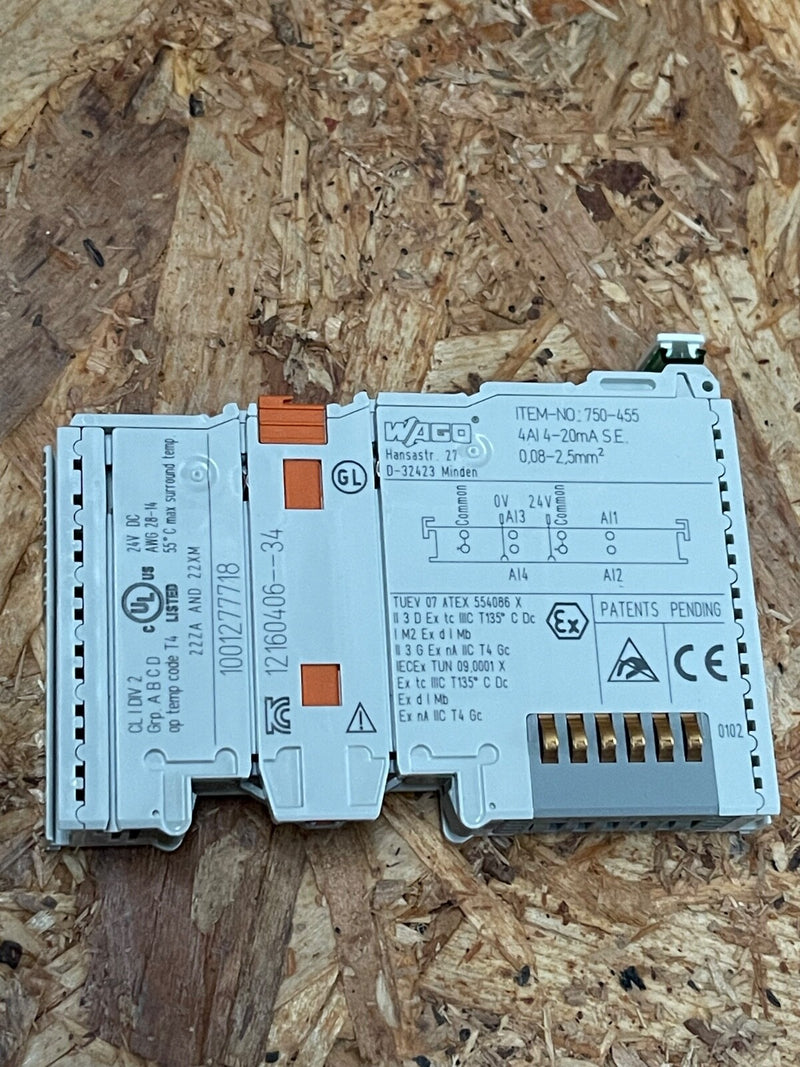

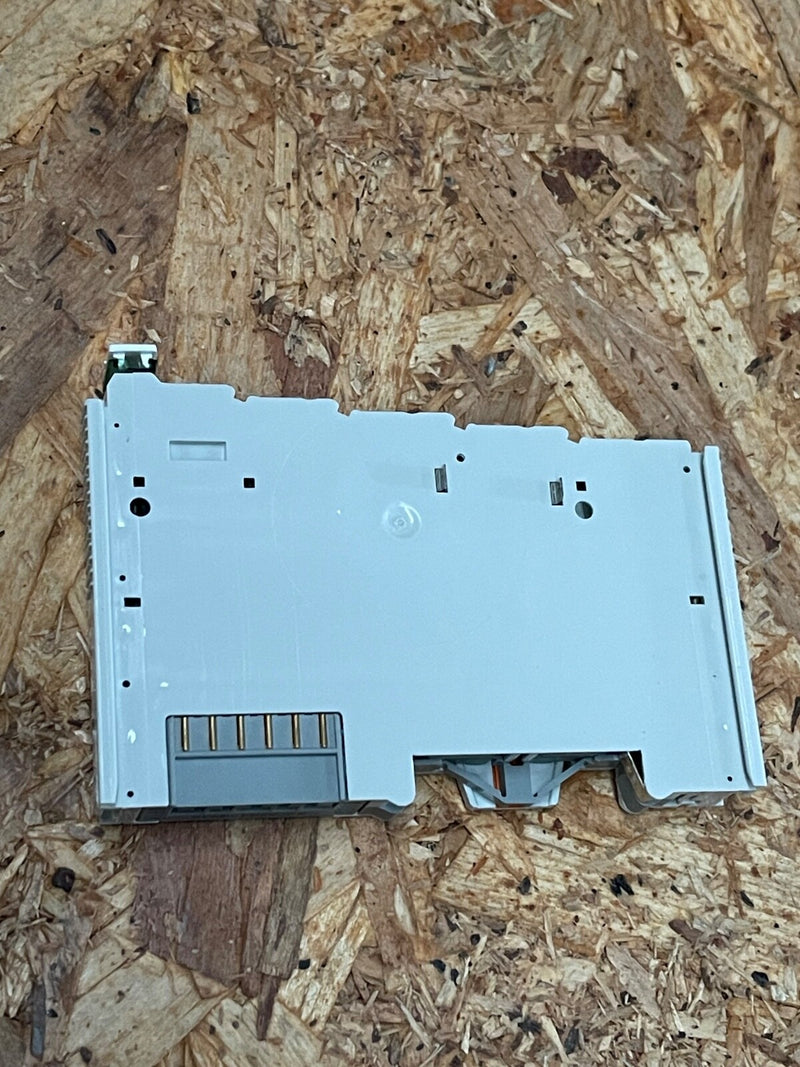

WAGO - 750-455 - 4-Channel Analog Input Module, 4–20 mA, 12-bit, IP20

The WAGO 750-455 is a 4-channel analog input module designed for precise current measurement in industrial automation systems. Each input channel is capable of processing standard 4–20 mA current signals, offering 12-bit resolution for accurate data acquisition. Galvanic isolation between the field and system levels ensures signal integrity and operational safety.

Key Features:

• Model: 750-455

• Brand: WAGO

• Input Channels: 4 analog inputs

• Signal Type: 4–20 mA current input

• Resolution: 12-bit

• Input Type: Single-ended

• Input Filtering: Hardware filter

• Galvanic Isolation: Yes, between field and system levels

• Mounting Type: DIN rail

• Connection Type: Spring terminal blocks

• Enclosure Rating: IP20

• Operating Temperature: 0 °C to +55 °C

• Dimensions (W × H × D): 12 mm × 100 mm × 71.5 mm

• Applications: Ideal for integrating current loop sensors and transmitters in automation systems such as PLCs, SCADA, and distributed control systems.
