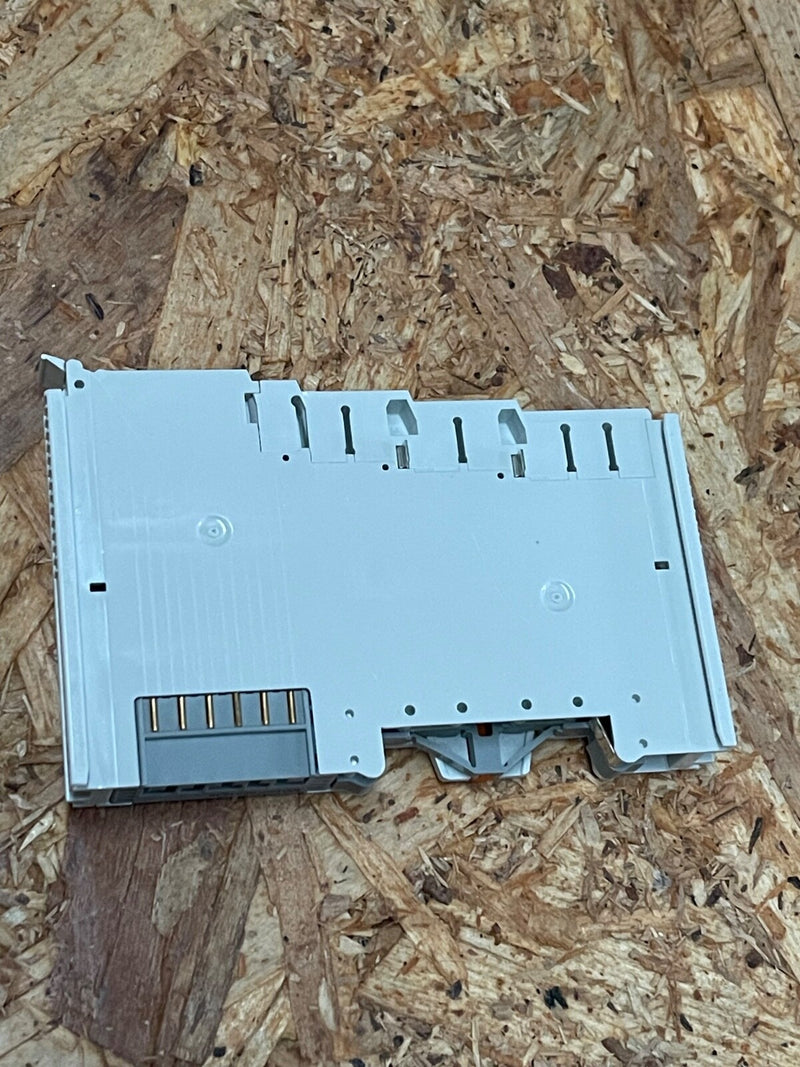

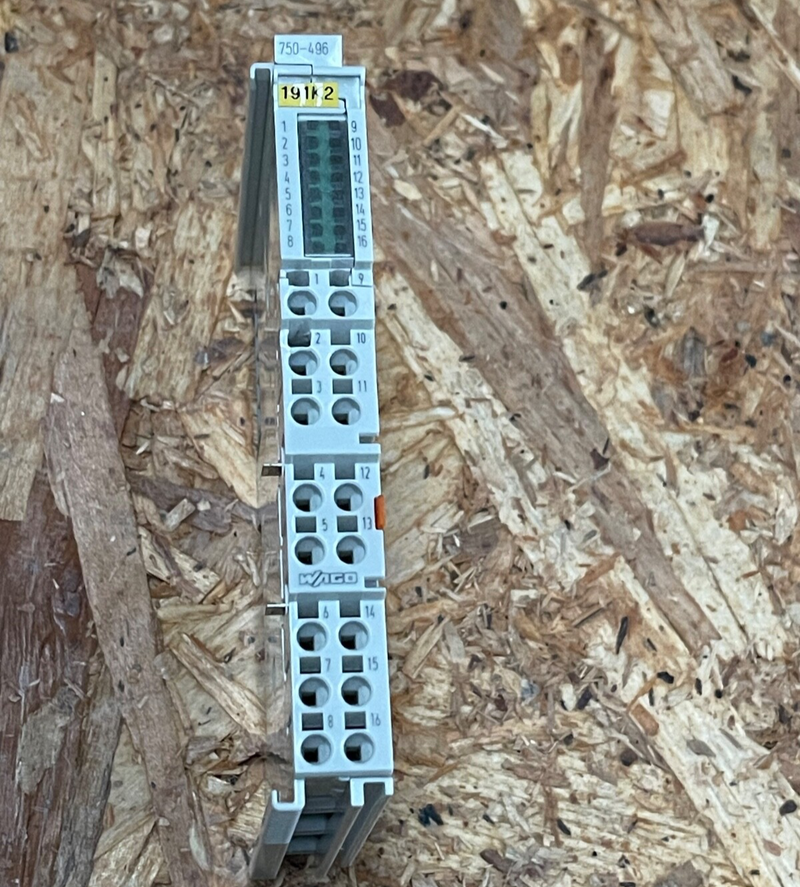

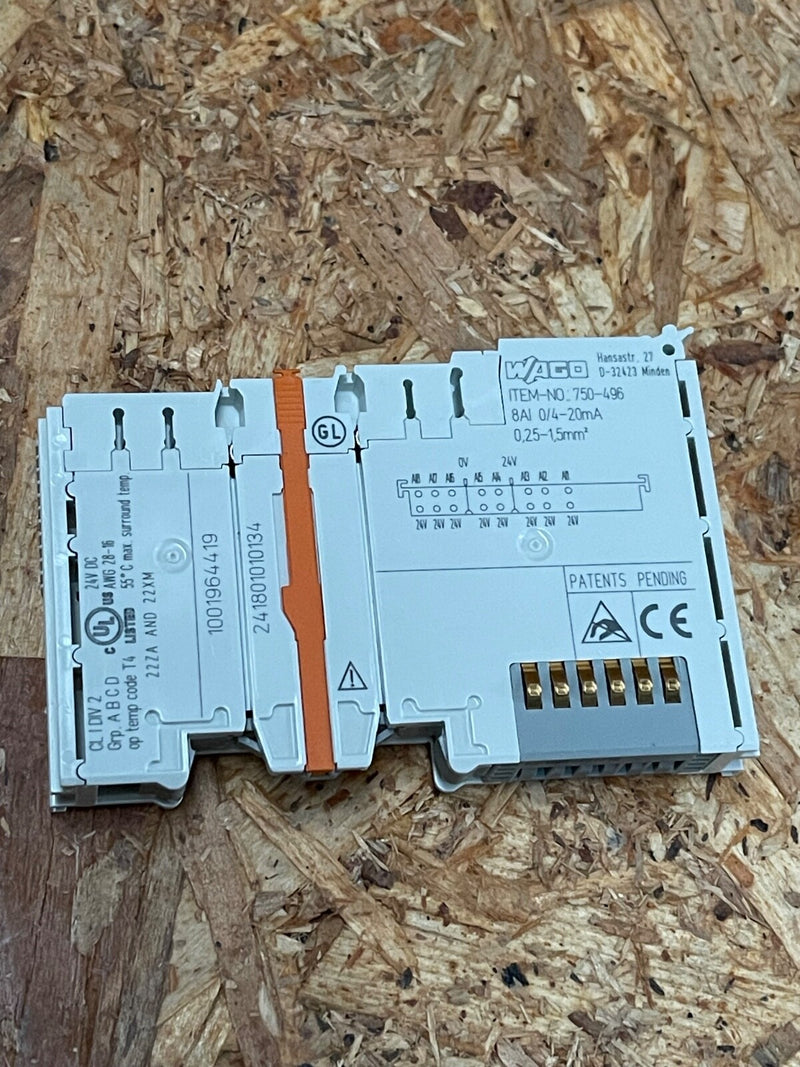

The WAGO 750-496 is an 8-channel analog input module designed for precise current signal acquisition in industrial automation systems. Each channel supports standard 0–20 mA, 4–20 mA, and 3.6–21 mA (NAMUR NE43) signals, providing 12-bit resolution for accurate data conversion. The module features galvanic isolation between the field and system levels, ensuring signal integrity and operational safety. Its compact design and DIN rail mounting make it suitable for space-constrained installations.

Key Features:

Model: 750-496
Brand: WAGO
Input Channels: 8 analog inputs
Signal Types: 0–20 mA, 4–20 mA, 3.6–21 mA (NAMUR NE43)
Resolution: 12-bit (plus 1 sign bit)
Input Type: Single-ended
Input Resistance: ≤ 200 Ω
Conversion Time: ≤ 1.25 ms per channel; ≤ 10 ms per module
Galvanic Isolation: 500 V between field and system levels
Diagnostics: Wire break, short circuit, overrange, underrange, general error
Mounting Type: DIN rail
Connection Type: Push-in CAGE CLAMP® terminals
Enclosure Rating: IP20
Operating Temperature: 0 °C to +55 °C
Dimensions (W × H × D): 12 mm × 64 mm × 100 mm
Weight: Approximately 47 g
Applications: Ideal for integrating current loop sensors and transmitters in automation systems such as PLCs, SCADA, and distributed control systems.
