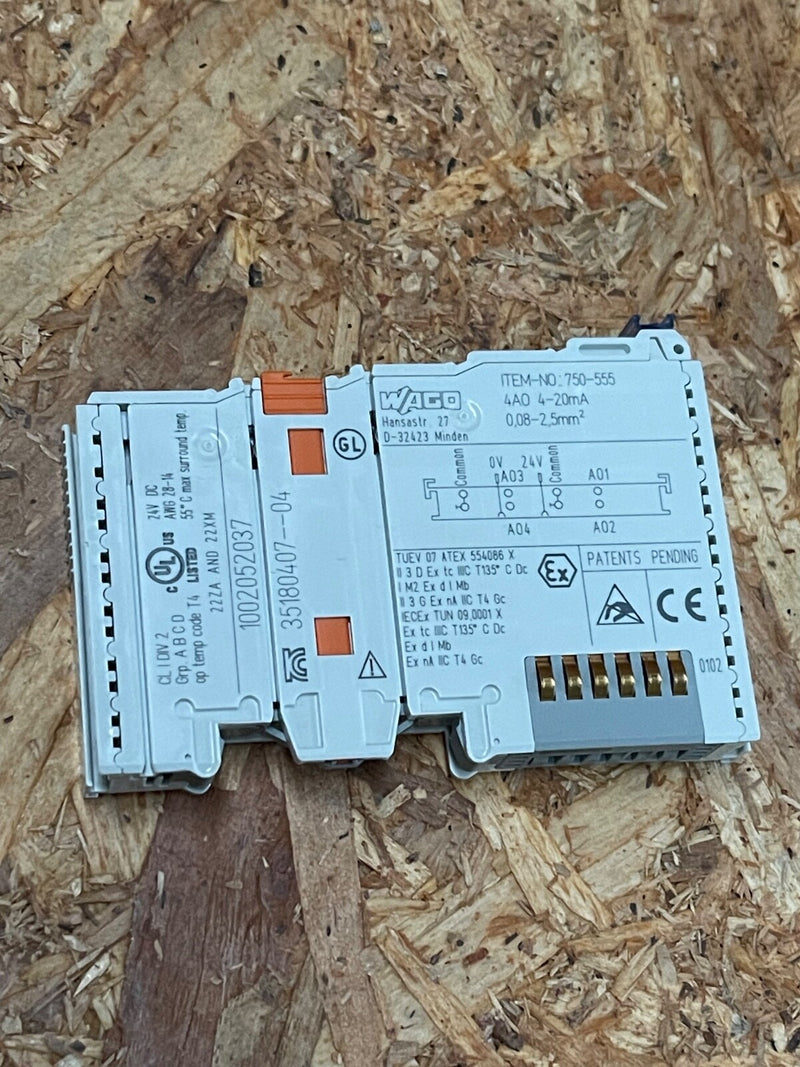

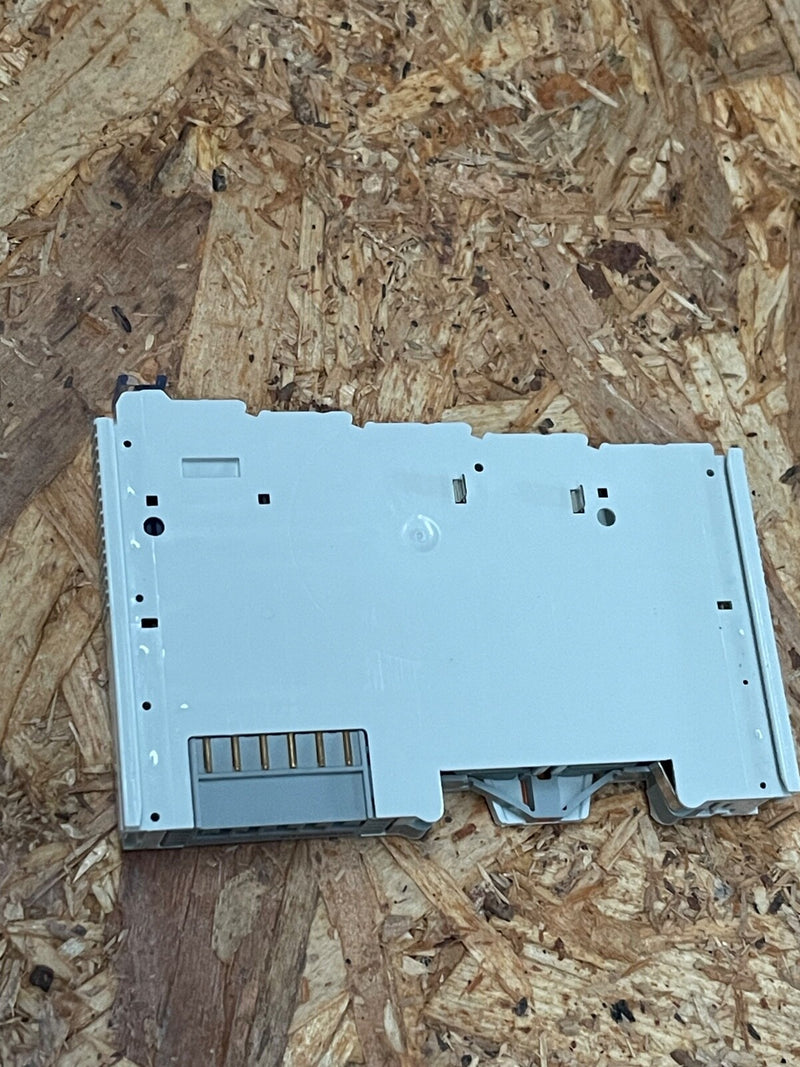

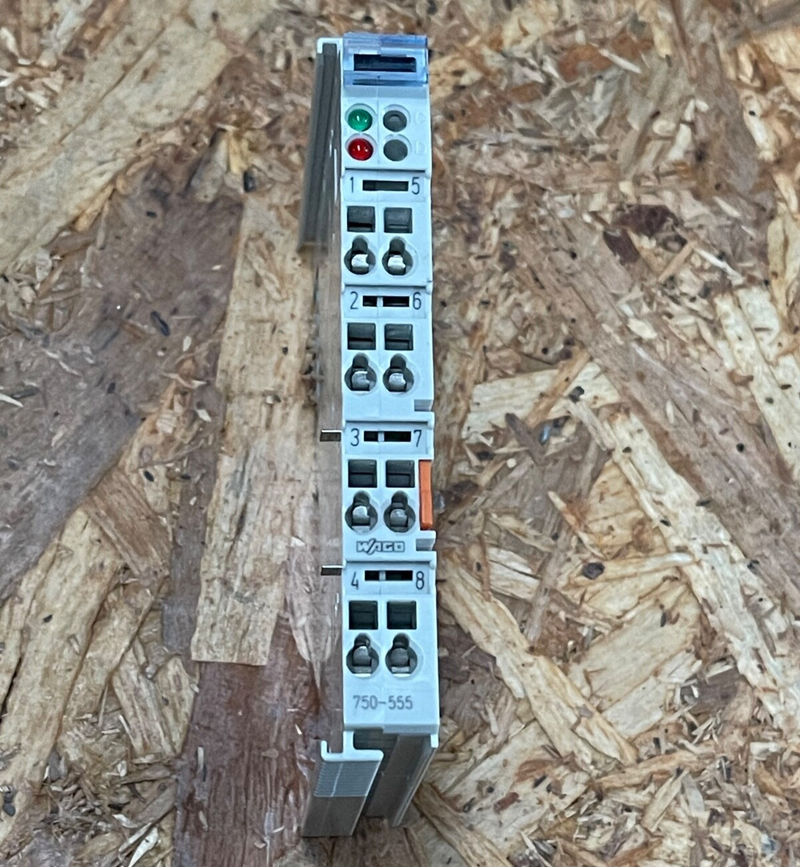

WAGO - 750-555 - 4-Channel Analog Output Module, 4–20 mA, 12-bit, IP20

The WAGO 750-555 is a 4-channel analog output module designed for precise current signal generation in industrial automation systems. Each channel delivers a 4–20 mA output with 12-bit resolution, ensuring accurate control of actuators and devices. The module features galvanic isolation between the field and system levels, enhancing signal integrity and system safety. Its compact design and DIN rail mounting make it suitable for space-constrained installations.

Key Features:

• Model: 750-555

• Brand: WAGO

• Output Channels: 4 analog outputs

• Output Signal: 4–20 mA

• Resolution: 12-bit

• Load Impedance: 0–300 Ω or 300–600 Ω (uniform across all channels)

• Conversion Time: ≤ 10 ms

• Galvanic Isolation: Yes, between field and system levels

• Mounting Type: DIN rail

• Enclosure Type: IP20

• Operating Temperature Range: 0 °C to +55 °C

• Applications: Ideal for industrial automation systems requiring precise analog current outputs for controlling actuators, valves, and other devices.
