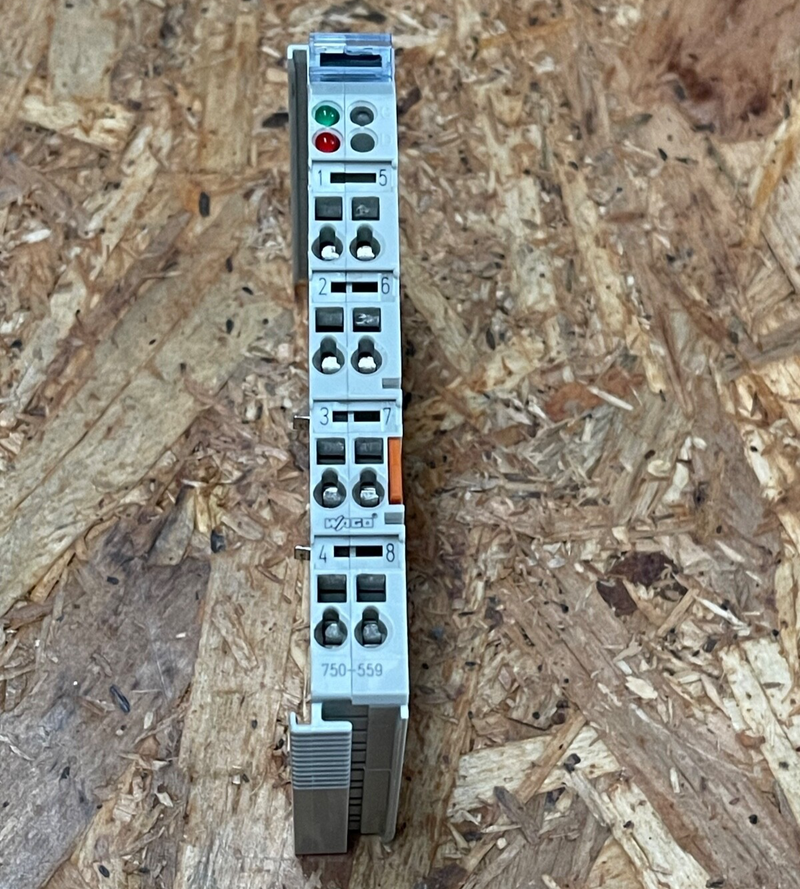

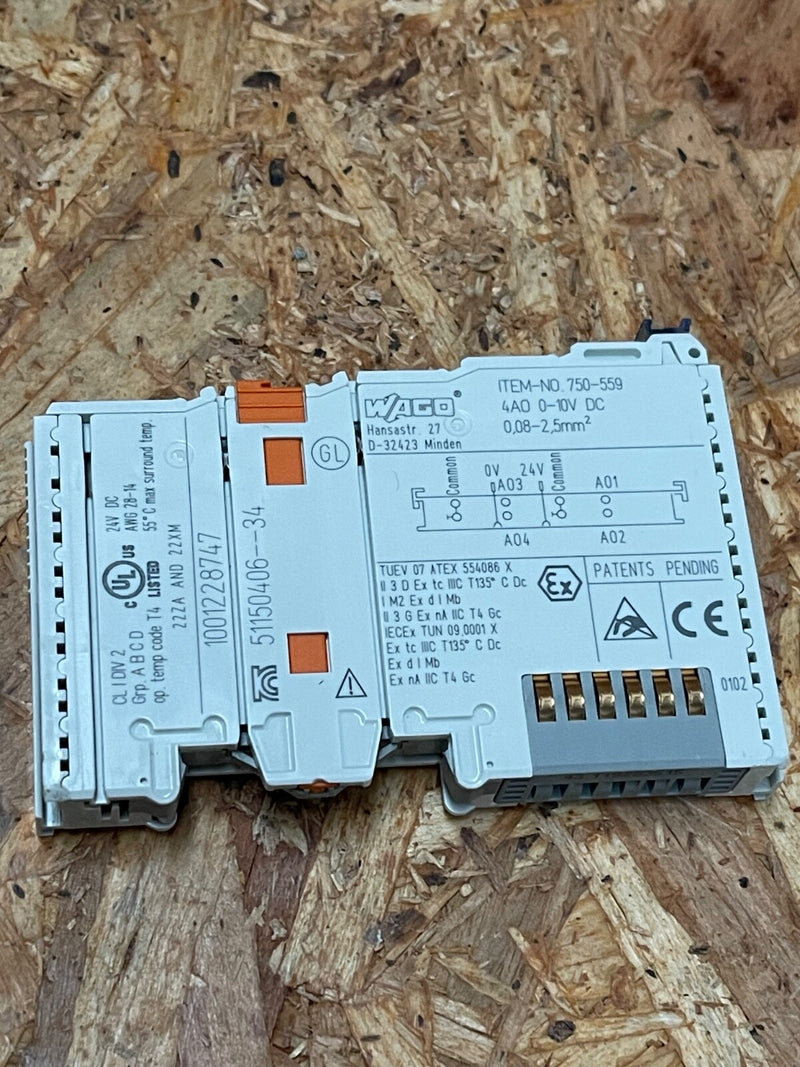

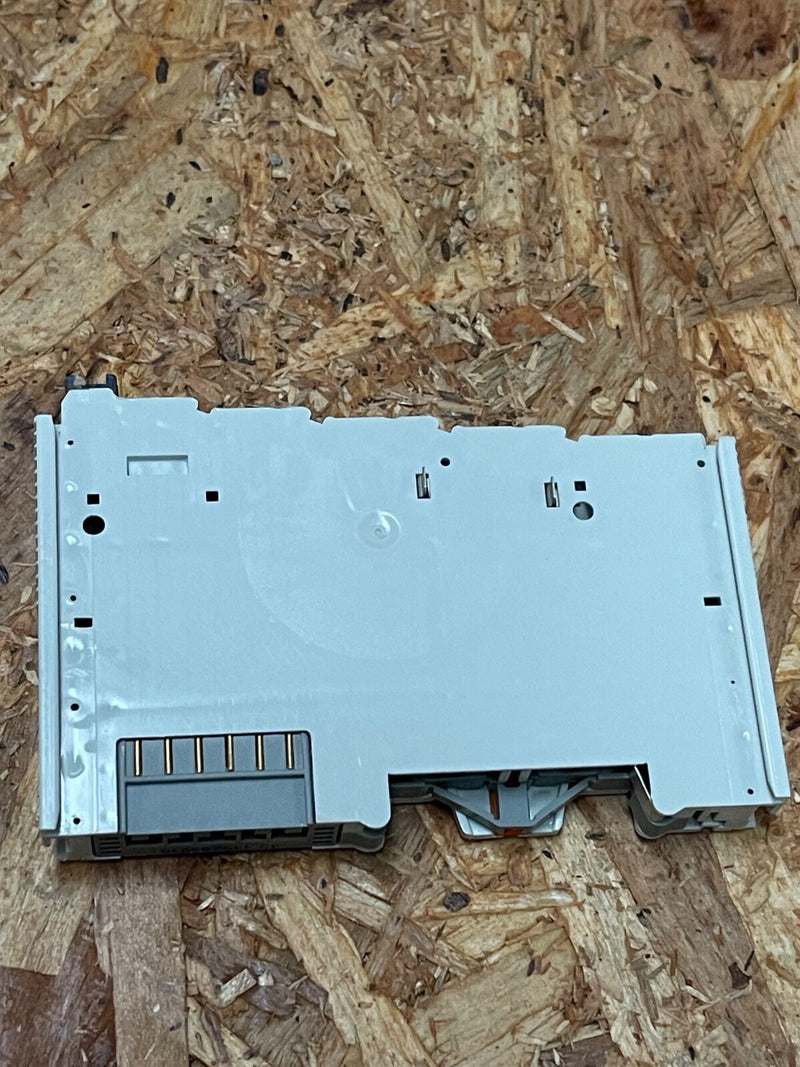

The WAGO 750-559 is a 4-channel analog output module designed for precise voltage signal generation in industrial automation systems. Each channel delivers a 0–10 V DC output with 12-bit resolution, ensuring accurate control of actuators and devices. The module features galvanic isolation between the field and system levels, enhancing signal integrity and system safety. Its compact design and DIN rail mounting make it suitable for space-constrained installations.

Key Features:

Model: 750-559
Brand: WAGO
Output Channels: 4 analog outputs
Output Signal: 0–10 V DC
Resolution: 12-bit
Galvanic Isolation: Yes, between field and system levels
Mounting Type: DIN rail
Dimensions (W × H × D): 12 mm × 100 mm × 69.8 mm
Enclosure Type: IP20
Operating Temperature Range: 0 °C to +55 °C
Standards Compliance: ATEX, UL
Applications: Ideal for industrial automation systems requiring precise analog voltage outputs for controlling actuators, valves, and other devices.
