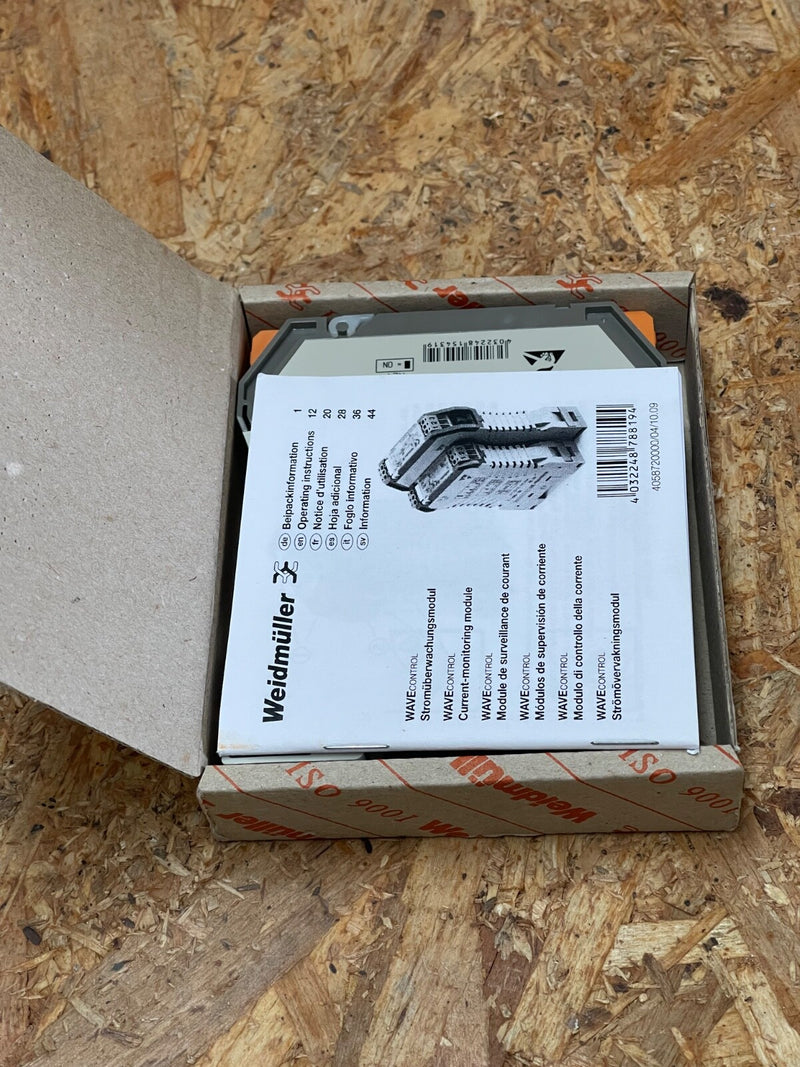

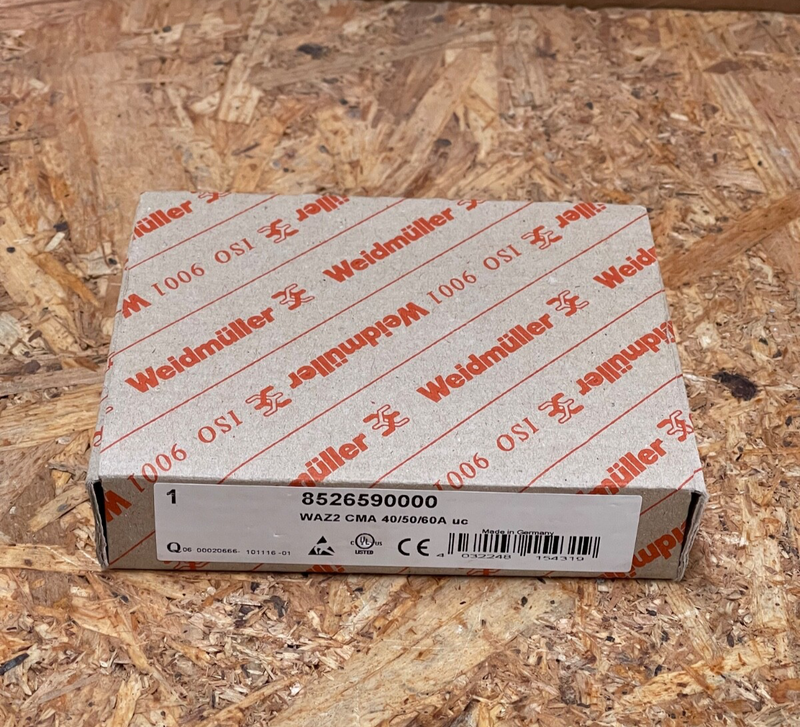

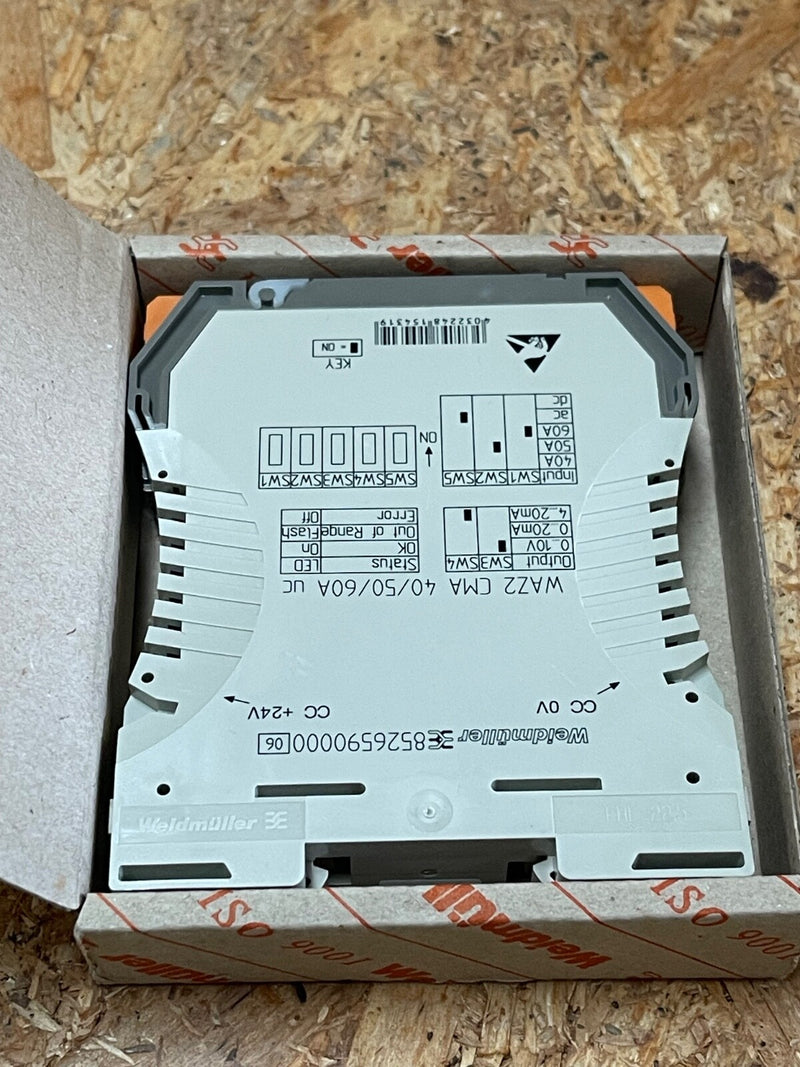

Weidmüller – 8526590000 – WAZ2 CMA 40/50/60 A AC/DC Analog Signal Conditioner

Main Features

• Manufacturer: Weidmüller – part of the WAVE series of terminal-mounted analog signal conditioners

• Model/MPN: 8526590000 (WAZ2 CMA)

• Device Type: Mini analog signal conditioner (mini coupler) designed for galvanic isolation and signal conversion in control panels

• Input Range: Configurable for 40 A, 50 A, or 60 A AC/DC current measurement

• Output: Standard control signal (likely 0–10 V or 4–20 mA), selectable via internal jumpers—used for process control applications

• Mounting Format: DIN‑rail housing, small footprint (width approx. 12.5 mm), pluggable into mixer base connectors

• Functionality:

  • Galvanic isolation via transformer or optocoupler

  • Signal conditioned for stable analog output

  • Ideal for safe transmission of current measurements to PLC/SCADA systems
