Weidmüller – IE‑SW‑VL08MT‑8TX (1240940000) – Managed 8‑Port Industrial Ethernet

Main Features

• Manufacturer: Weidmüller – ValueLine series

• Model/MPN: IE‑SW‑VL08MT‑8TX (Order No. 1240940000)

• Device Type: Managed industrial Ethernet switch with 8 RJ‑45 ports (10/100 Mbps) and RS‑232 console port

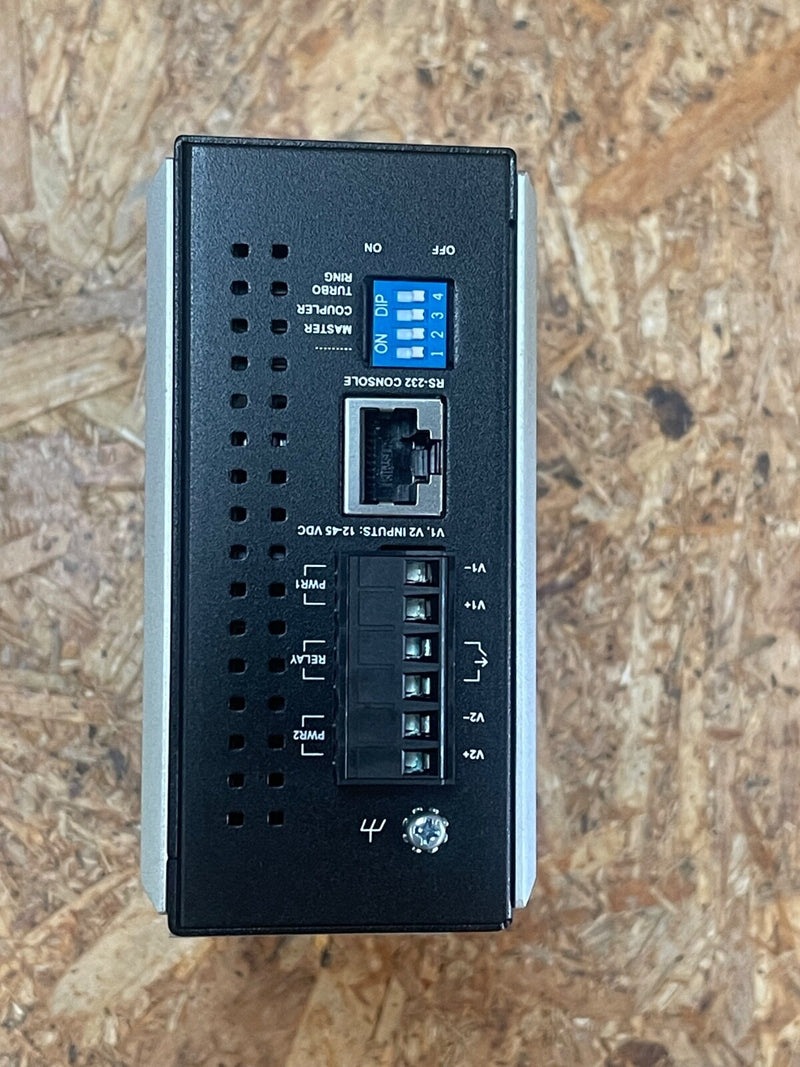

• Power Supply: 12–45 V DC, DIN‑rail terminal connector with reverse‑polarity and overload protection

• Operating Range: –40 °C to +75 °C; IP30-rated metal housing for rugged installations

• Industrial Features:

  • Supports Turbo‑Ring/Turbo‑Chain for network redundancy (<20 ms recovery)

  • VLAN, QoS, IGMP snooping, port mirroring, SNMP v1/v2c/v3, syslog, and RMON

  • PROFINET Device Conformance Class B, EtherNet/IP, Modbus/TCP slave support

• Diagnostics & Interfaces:

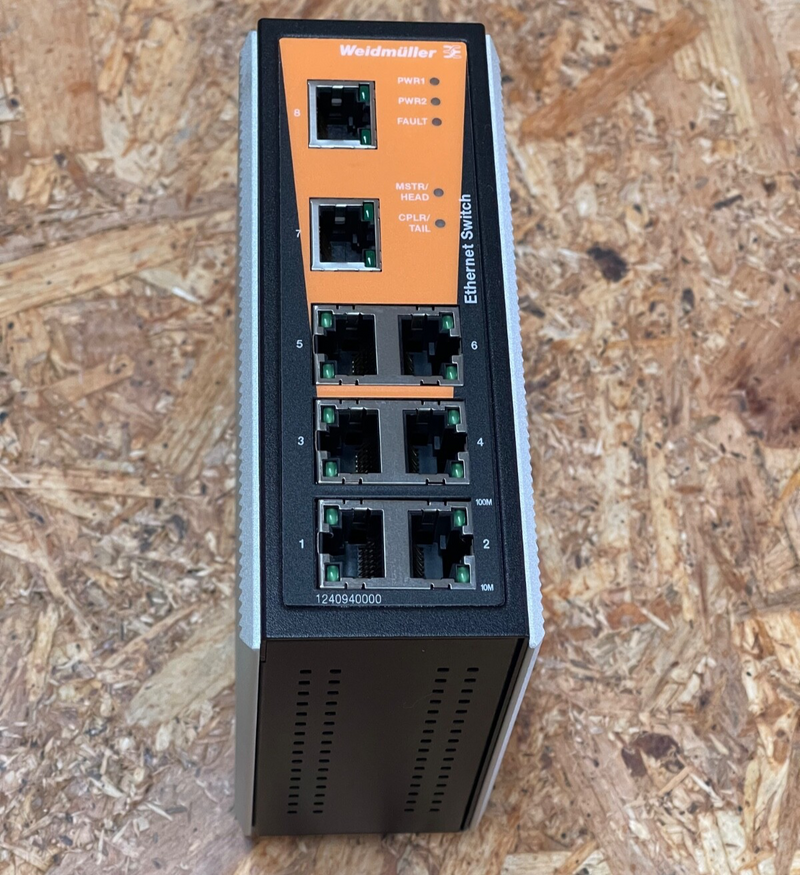

  • LED indicators (PWR1/2, FAULT, MASTER/COUPLER, 10/100M)

  • Relay output for fault/alarm signaling

• Certifications: CE, cULus, UL508, UL60950‑1, ATEX Zone 2 Ex nA, DNV marine approvals

• Dimensions & Mounting: 53.6 mm × 105 mm × 135 mm; weighs ~890 g; DIN‑rail (EN 50022) mountable
