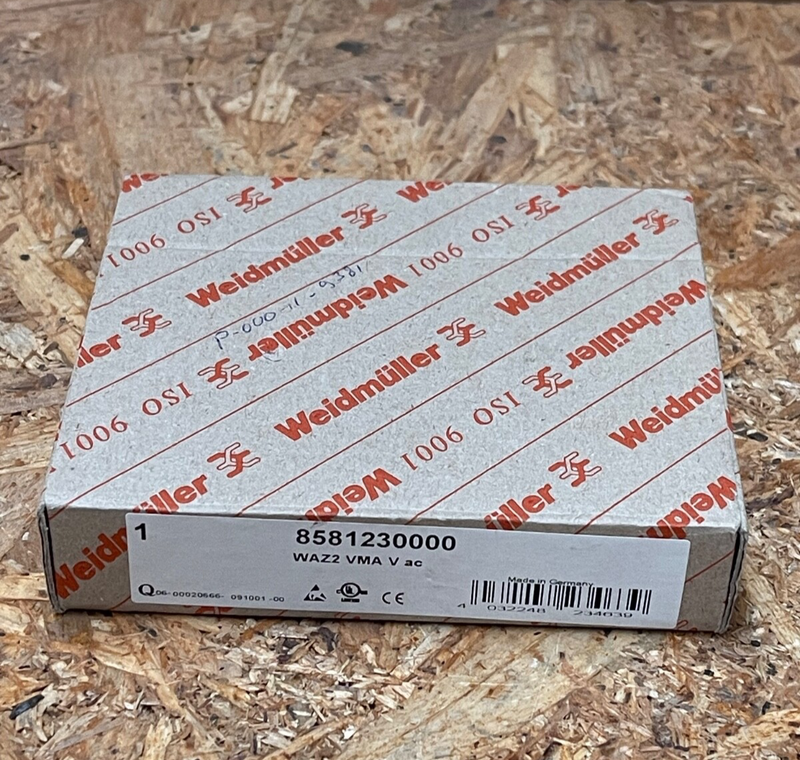

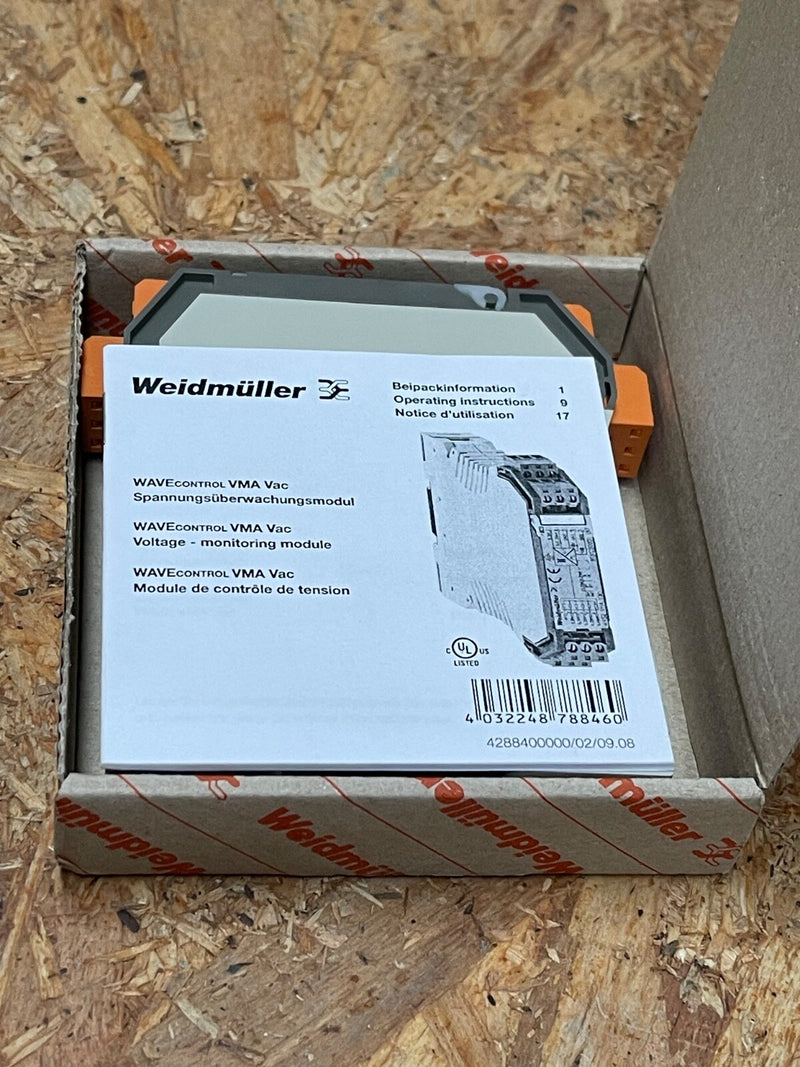

Weidmüller – WAZ2 VMA VAC (8581230000) – DIN‑Rail AC Voltage Signal Isolator

Main Features

• Manufacturer: Weidmüller (WaveSeries signal conditioner)

• Model/MPN: WAZ2 VMA VAC, Cat. No. 8581230000, EAN 4032248234639

• Function: Voltage monitoring and isolation module for industrial AC voltage measurements with galvanic isolation and analog output

• Input Ranges: Configurable via DIP switch for AC 0–30 V, 0–70 V, 0–130 V, 0–250 V, or 0–450 V (40–400 Hz)

• Output Signals: Selectable 0(4)…20 mA or 0…10 V analog output; output load <600 Ω (current), >1 kΩ (voltage)

• Power Supply: External 24 V DC power (±25 %) with typical draw ~24–30 mA at 20 mA output

• Isolation & Accuracy: 3‑way galvanic isolation (input/output/supply), 4 kV test voltage; accuracy ~1.3 % at 50/60 Hz (<300 ms response)

• Construction: DIN‑rail mountable (22.5 mm width, 92 x 112 mm), tension clamp terminals (0.5–2.5 mm²); IP20 rated

• Certifications: CE, cULus (UL File E141197), EN 50178 compliance; discontinued with alternative 7760054360 recommended
