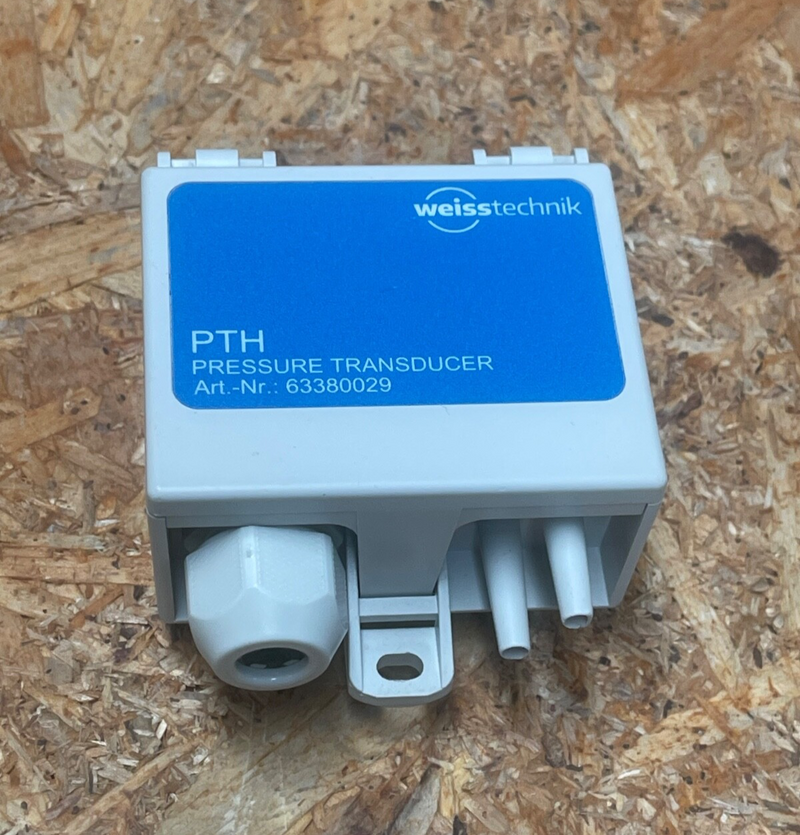

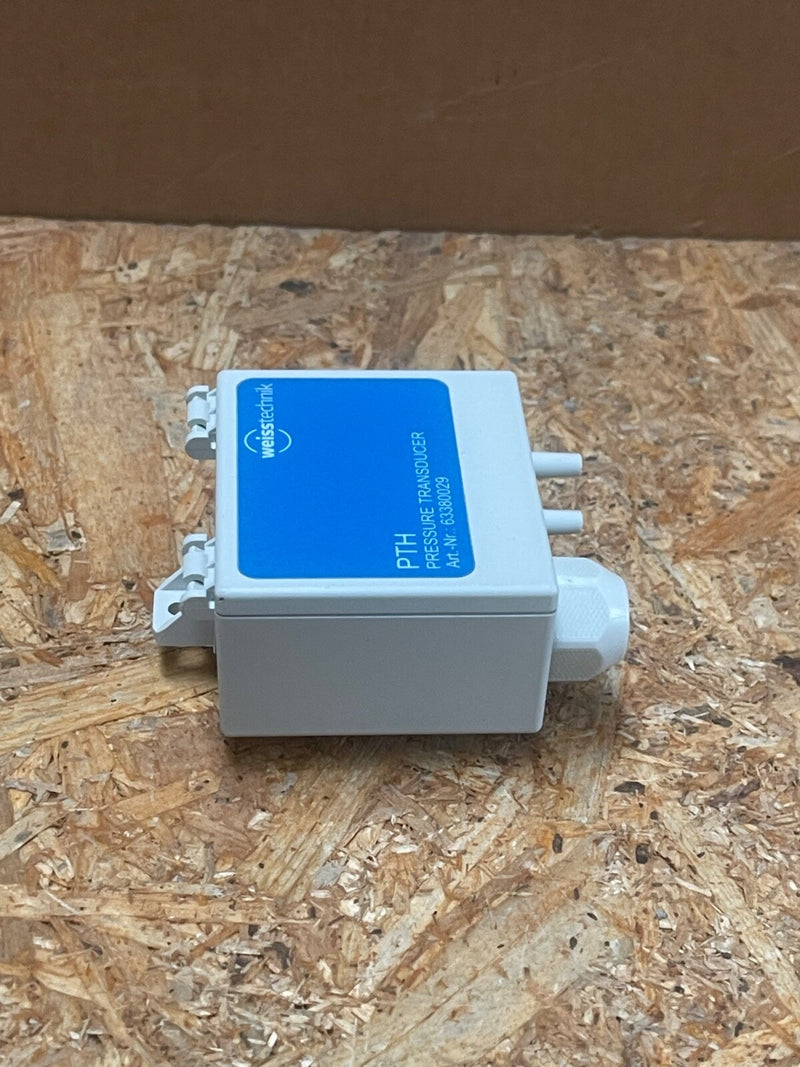

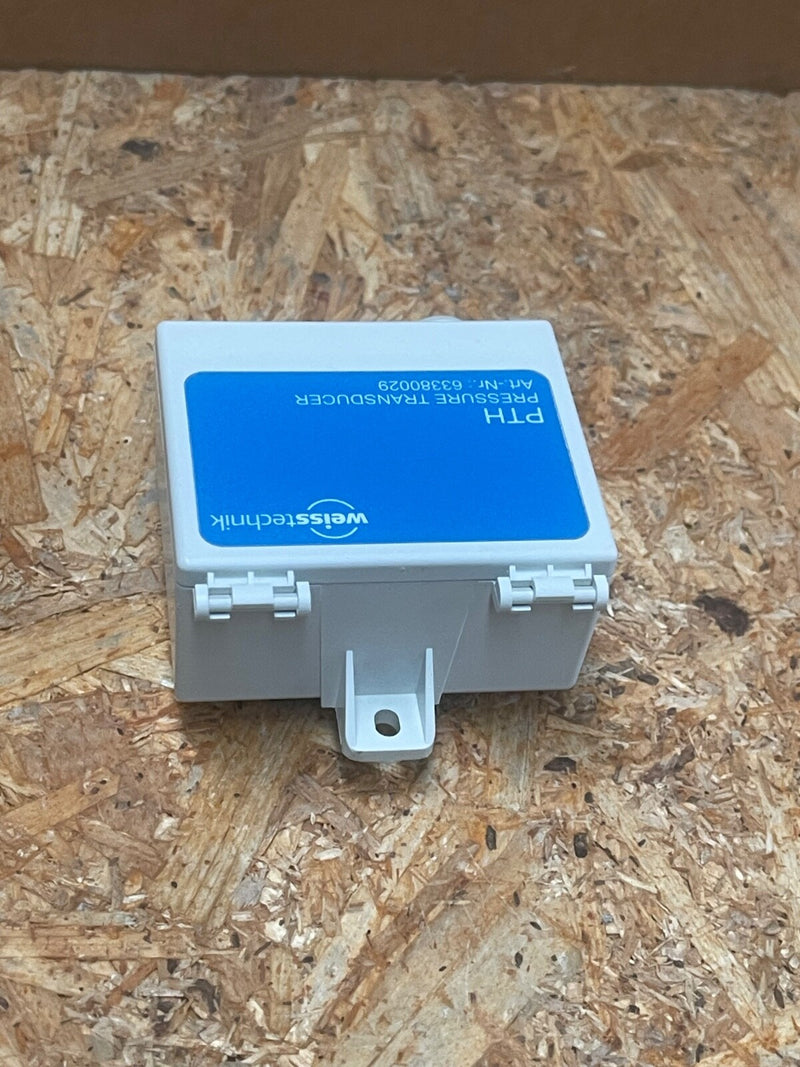

Weiss Technik – 63380029 (PTH‑3202) – HVAC Pressure Transmitter, 0–300 Pa

This Weiss Technik PTH‑3202 (part number 63380029) is a precision pressure transmitter used in HVAC and climate control systems. Rated for 0–300 Pa measurement range, it offers reliable analog output (4–20 mA or 0–10 V) and is optimized for DIN‑rail installation in air duct monitoring or environmental control panels. Ideal for maintaining air pressure differentials and flow measurement.

Key Specifications

• Model / Part Nr.: PTH‑3202 – 63380029

• Pressure Range: 0–300 Pa (selectable via DIP); other ranges available via configuration jumpers

• Output Options: 4–20 mA or 0–10 V (user-selectable)

• Power Supply: 24 V DC (logic “24VUC” marking)

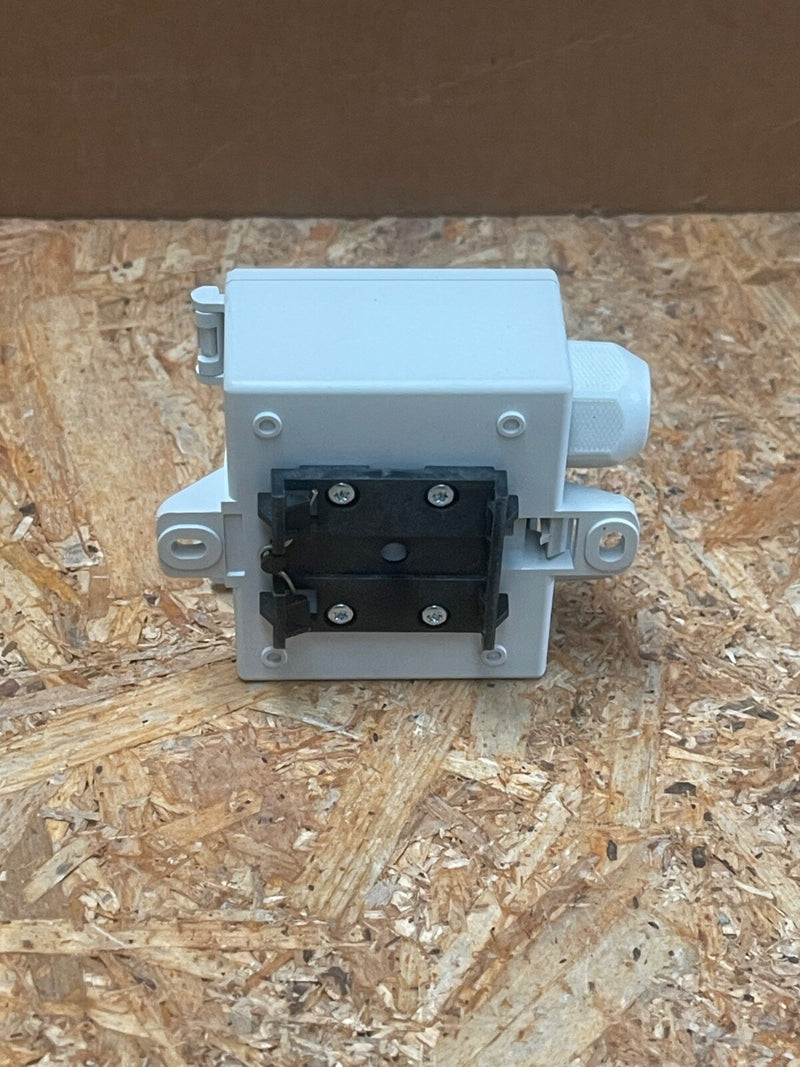

• Mounting: DIN‑rail compatible (clip-on housing)

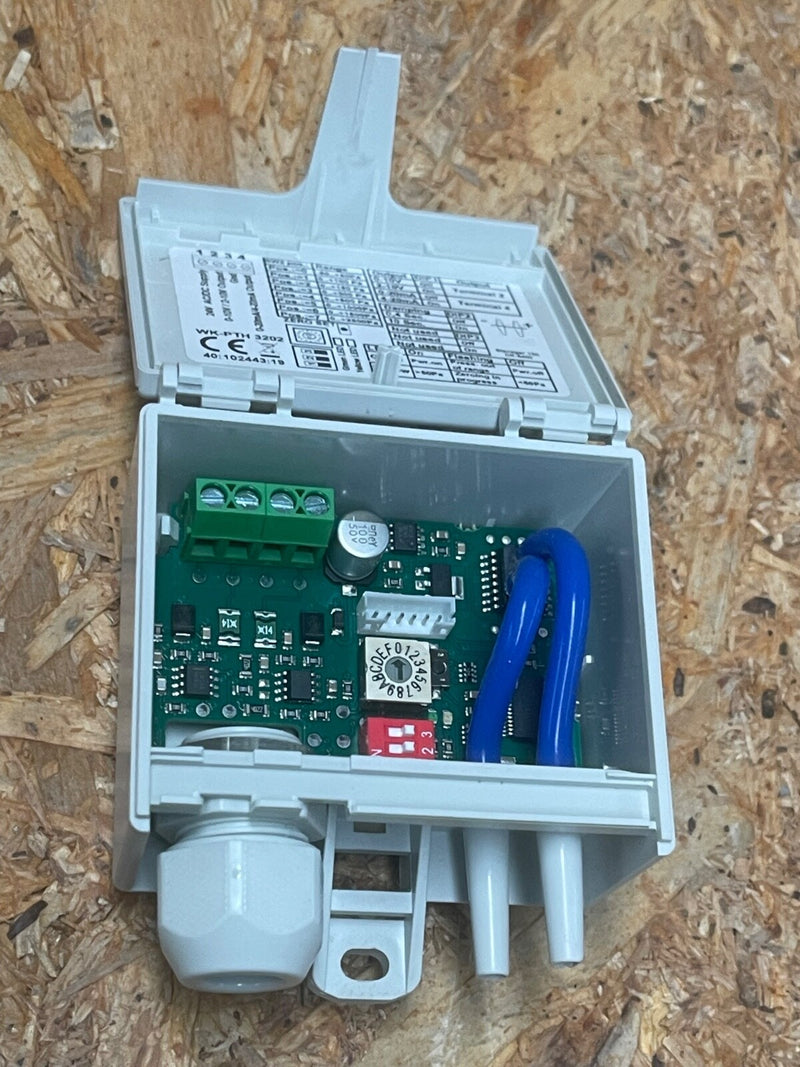

• Connection: Multi-pin terminal block; DIP switches for range & damping configuration

• Application: HVAC blower supervisors, differential pressure measurement, airflow control
