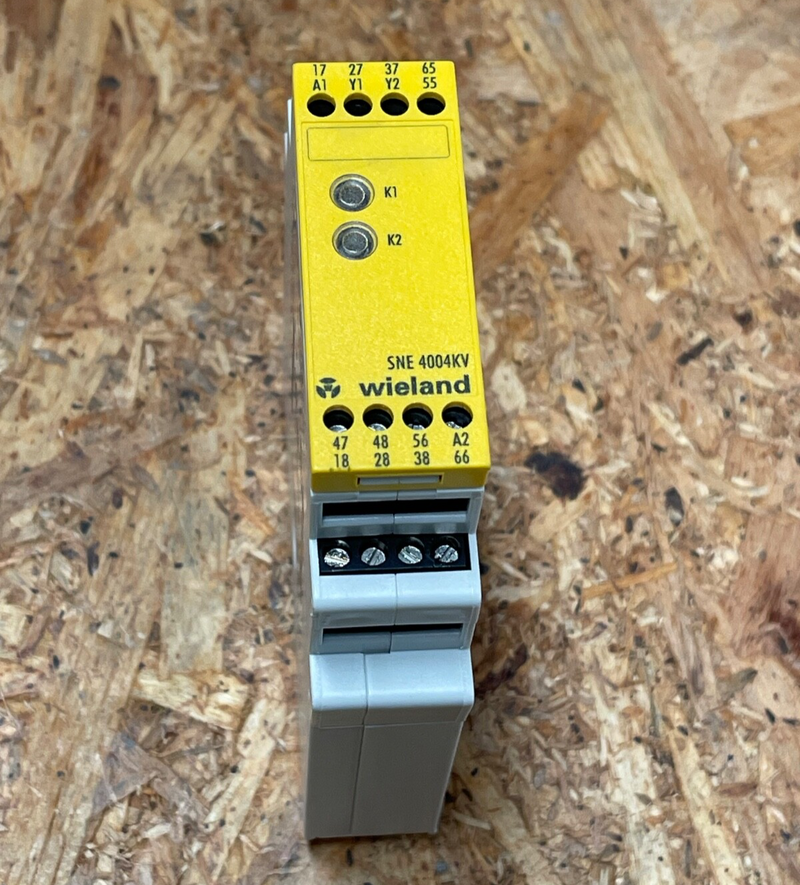

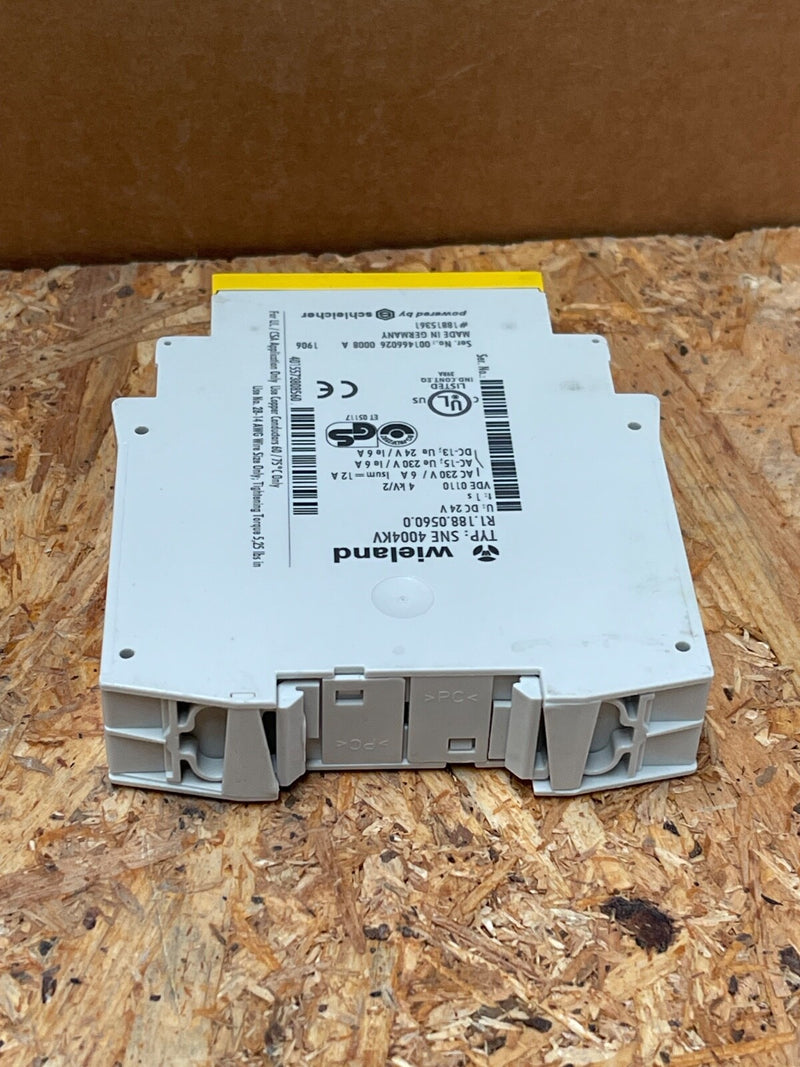

Wieland - SNE 4004KV - Safety Relay Expansion Module, 24 V DC, 4 NO + 3 NC

The Wieland SNE 4004KV is a safety relay expansion module designed to enhance the output capabilities of safety switching devices. Operating on a 24 V DC supply, it features four enabling (NO) contacts and three signaling (NC) contacts. The module offers fixed off-delay times of 0.5 s, 1 s, 2 s, or 3 s, ensuring that the delay period completes even in the event of a power failure, thereby supporting stop category 1 applications.

Key Features:

• Model: SNE 4004KV

• Brand: Wieland

• Function: Safety relay expansion module

• Supply Voltage: 24 V DC

• Output Contacts: 4 Normally Open (NO), 3 Normally Closed (NC)

• Off-Delay Times: Fixed options of 0.5 s, 1 s, 2 s, or 3 s

• Feedback Circuit: Yes (Y1/Y2)

• Mounting: DIN rail

• Terminal Type: Pluggable screw terminals

• Protection Rating: IP40 (housing), IP20 (terminals)

• Ambient Temperature Range: -25°C to +55°C

• Standards Compliance: EN ISO 13849-1, EN 62061

• Applications: Ideal for expanding the output capabilities of safety switching devices in industrial automation systems, providing reliable off-delay functionality for enhanced safety operations.
